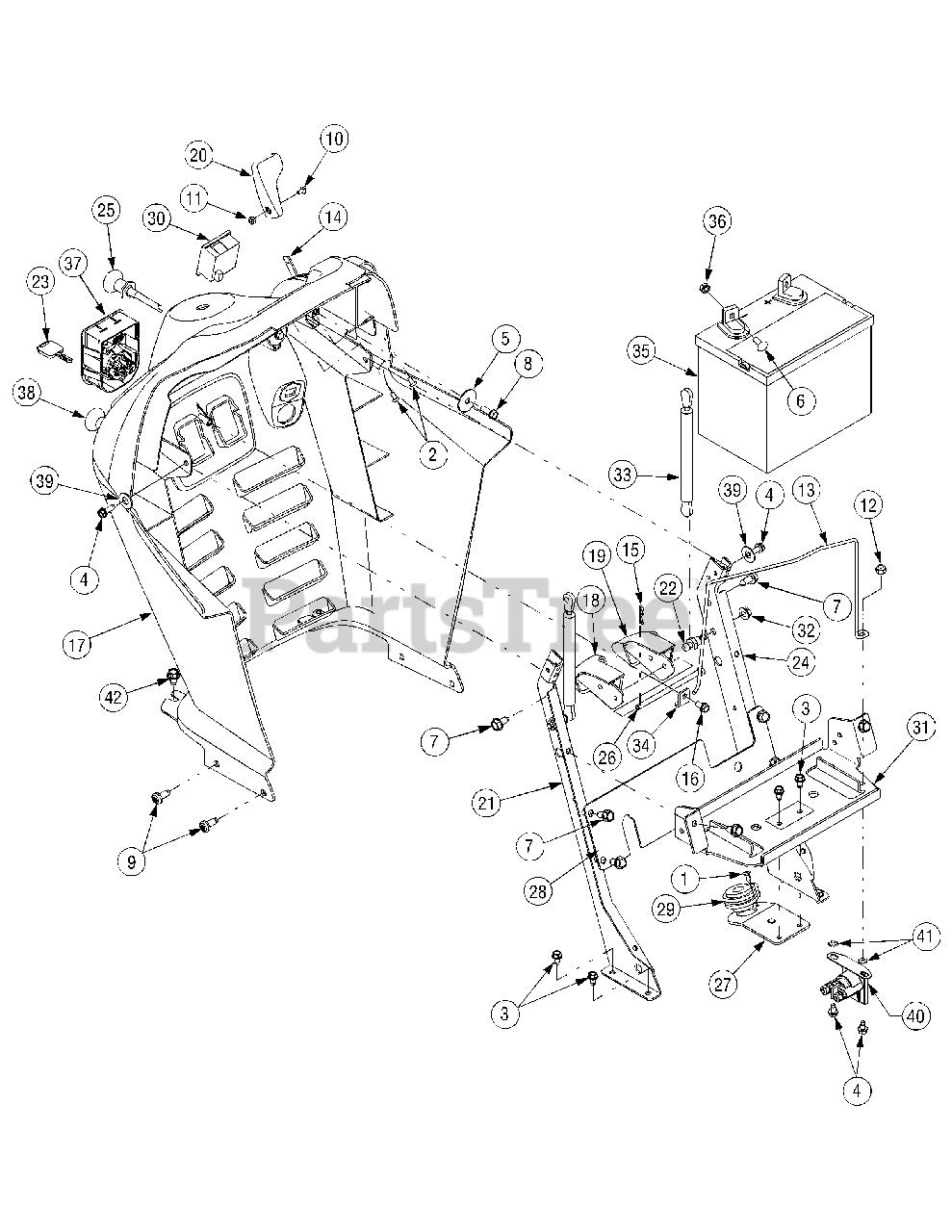

GT 1554 (14RK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007) Dash Panel 1K016 & after Parts Diagram

54" Garden Tractor

Dash Panel 1K016 & after Parts Diagram

  • Title

1

Cub Cadet 710-0351

Screw, #10-18 x.5

$4.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0192

Screw, #10-24 x.375

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0642

Screw, Hex. 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0362

Flat Washer,.330 x 1.25 x.06

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 710-04666

Screw, Hex Flange, 1/4-20,.75,

$6.99

$

In Stock, only 3 left!

0

7

Cub Cadet 710-0726

Screw, Hex, 5/16-12 x.75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1611B

Screw, Torx Hd. Tapp. 5/16-18 x.75

$6.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-3217

Screw, Machine, #8-32, 0.375, Trus Phillips

$6.99

$

In Stock, Qty 7

0

11

Cub Cadet 712-0142

Nut, 8-32

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 712-0324

Nut, Nylon Lock, 1/4-20

$3.99

$

In Stock, Qty 16

0

13

Cub Cadet 747-04215

Hold-down Rod, Battery
(Superseded to 747-04215-0637)

Variations

Cub Cadet 747-04215-0637

Battery Strap - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 7

0

$16.99

$

In Stock, Qty 7

0

14

Cub Cadet 746-04352

Control, Throttle, 38.0
(Superseded to 946-04352A)

$42.99

$

In Stock, only 1 left!

0

15

Cub Cadet 714-0104

Internal Cotter Pin,.072 x 1.13

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-04187

Screw, 1/4-15 x.50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-05077B

Dash
(Superseded to 731-05077C)

$

$

Not available

18

Cub Cadet 731-04294A

Lever, Dash, Cruise

$17.99

$

In Stock, only 1 left!

0

19

Cub Cadet 731-04293A

Lever, Dash, Brake
(Superseded to 731-04293B)

$30.99

$

In Stock, only 1 left!

0

20

Cub Cadet 731-3161A

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

21

Cub Cadet 683-04232

Dash Support, RH
(Superseded to 683-04232-0637)

Variations

Cub Cadet 683-04232-0637

SUPPORT-DASH RH - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 710-04471

Ball Screw, 5/16-18 x.48

$27.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 725-2054

Ignition Key, Plastic
(Superseded to 925-2054A)

$17.99

$

In Stock, Qty 20+

0

24

Cub Cadet 683-04231

Dash Support, LH
(Superseded to 683-04231-0637)

Variations

Cub Cadet 683-04231-0637

SUPPORT-DASH LH - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 746-04120

Control, Choke
(Superseded to 746P04120)

$34.99

$

In Stock, only 3 left!

0

26

Cub Cadet 747-1323A

Rod,.250 Dia x 4.25

$11.99

$

In Stock, only 3 left!

0

27

Cub Cadet 783-04475

Bracket, Steering Support
(Superseded to 783-04475-0637)

Variations

Cub Cadet 783-04475-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 783-04506C

Plate, Dash Support
(Superseded to 783-04506C-0637)

Variations

Cub Cadet 783-04506C-0637

DASH-SUPPORT PLATE - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 741-0587

Steering Column Bearing

$4.49

$

In Stock, Qty 10

0

30

Cub Cadet 725-04022A

Monitor, Systems Indicator / Hour Meter
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

31

Cub Cadet 783-1447C

Bracket, Support, Battery

Variations

Cub Cadet 783-1447C-0637

SUPPORT BRACKET - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1447C-0716

SUPPORT BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

32

Cub Cadet 712-3004A

Flange Lock Nut,5/16-18

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 727-04142

Gas Spring Cylinder, 3.62 Stroke

$59.99

$

In Stock, only 1 left!

0

34

Cub Cadet 783-1499

Bracket, Rod, Dash
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 725-1750A

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

36

Cub Cadet 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 725-04227

Switch Module, Ignition
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

38

Cub Cadet 725-04175

Switch, PTO, Yellow
(Superseded to 925-04175A)

$46.99

$

In Stock, only 4 left!

0

39

Cub Cadet 736-0173

Flat Washer,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 725-1426A

Solenoid, 12V, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0222

Washer, External Lock, 1/4

$5.99

$

In Stock, only 3 left!

0

42

Cub Cadet 710-0607

Screw, Hex, 5/16-12 x .50

$6.99

$

In Stock, Qty 11

0

Cub Cadet 725-2003

Power Receptacle, 12 V

Note: not shown

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-04405

Wire Harness
(Superseded to 925-04405)

Note: not shown

$226.99

$

Usually ships in 3-6 days

0
