GT 1554 (14AK13CK710) - Cub Cadet 54" Garden Tractor (2005 & Before) Hydrostatic Transmission Parts Diagram

54" Garden Tractor

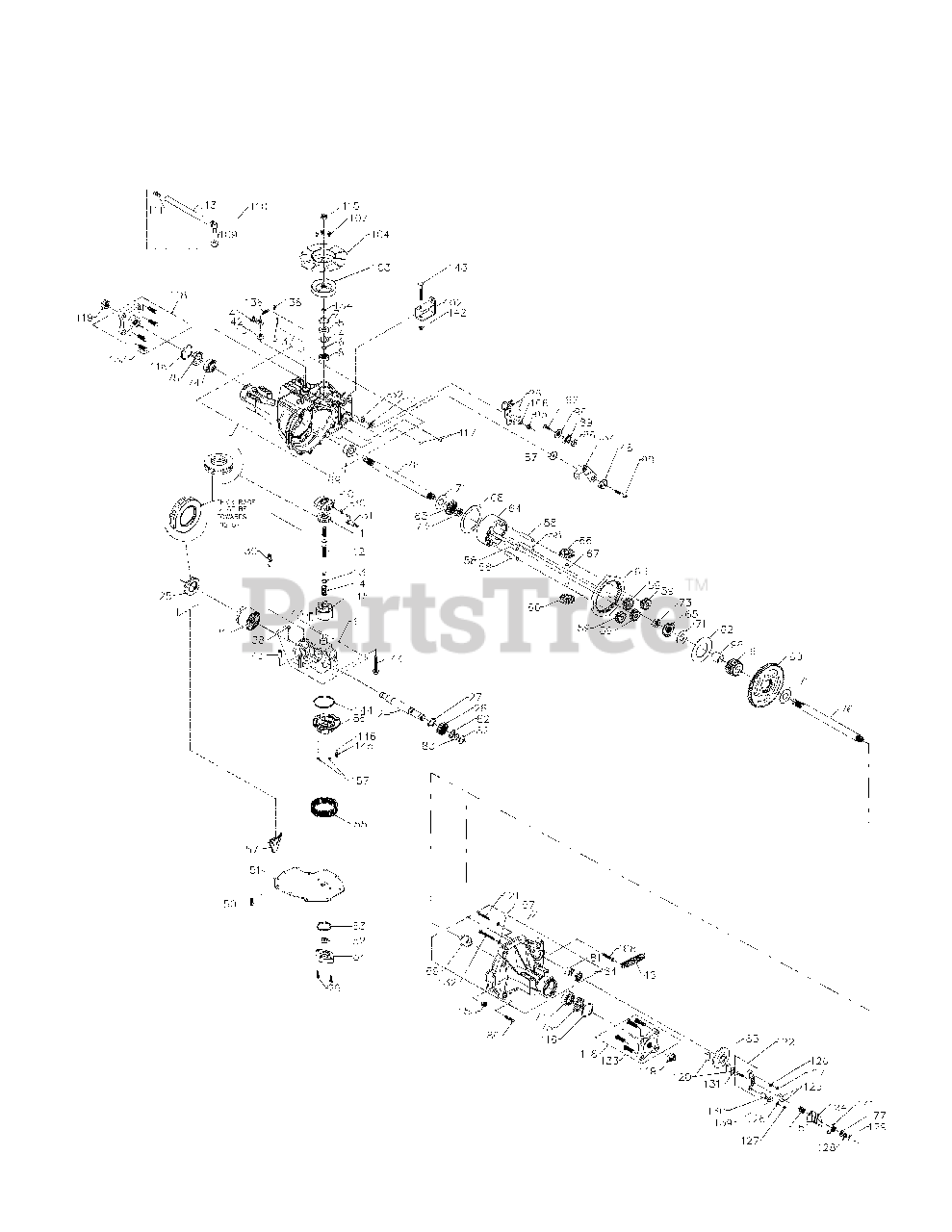

Hydrostatic Transmission Parts Diagram

  • Title

1

Cub Cadet HG-70297

Main Housing, Assembly

$

$

Not available

2

Cub Cadet HG-70298

Housing, Assembly, RH

$

$

Not available

3

Cub Cadet HG-70683

Center Section, Assembly

$

$

Not available

4

Cub Cadet HG-2003018

Spacer

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-900800-0128

Seal, Lip

$

$

Currently unavailable

6

Cub Cadet HG-2003016

Wire Retaining Ring

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-2003052

Retaining Ring

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet HG-2003043

Ball Bearing
(Superseded to HG-2003043P)

$73.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-2003087

Variable Swashplate

$220.99

$

Usually ships in 3-6 days

0

11

Cub Cadet HG-50551

Thrust Bearing
(Superseded to HG-50551P)

$29.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-50795

Input Shaft

$

$

Not available

13

Cub Cadet HG-2003017

Block Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet HG-2003014

Block Spring

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-70331

10cc Cylinder Block Assembly

$188.99

$

Usually ships in 3-6 days

0

21

Cub Cadet HG-70082

21cc Cylinder Block Assembly
(Superseded to HG-72159)

$106.99

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-50662

Output (Motor) Shaft

$

$

Not available

25

Cub Cadet HG-50552

Thrust Bearing
(Superseded to HG-53341)

$37.99

$

Usually ships in 3-6 days

0

26

Cub Cadet HG-51125

Control Arm

$

$

Not available

27

Cub Cadet HG-50774

Spacer

$

$

Not available

28

Cub Cadet HG-50661

16T Pinion Gear

$

$

Not available

29

Cub Cadet HG-50975

Capscrew, M6 x 1-25

$

$

Not available

30

Cub Cadet HG-2000015

Slot Guide

$21.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-50807

Trunnion Arm

$

$

Not available

32

Cub Cadet HG-2003009

Trunnion Bushing

$

$

Currently unavailable

33

Cub Cadet HG-9008000-0126

Lip Seal

$15.99

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-51127

Return Arm

$

$

Not available

38

Cub Cadet HG-70680

Kit, Bypass Plate

$

$

Not available

39

Cub Cadet HG-2003555

Bypass Actuator

$

$

Not available

40

Cub Cadet HG-45074

Lip Seal

$

$

Not available

41

Cub Cadet HG-50270

Bypass Arm

$

$

Not available

42

Cub Cadet HG-44870

Retaining Ring

$

$

Not available

43

Cub Cadet HG-50002

Pin

$7.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-50016

Screw

$4.99

$

Usually ships in 3-6 days

0

46

Cub Cadet HG-51153

Return Spring

$

$

Not available

48

Cub Cadet HG-51097

Adjusting Puck

$10.99

$

Usually ships in 3-6 days

0

50

Cub Cadet HG-50752

Screw, 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet HG-50972

Lower Cover

$

$

Not available

52

Cub Cadet HG-50273

Gerotor Assembly

$36.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-9004101-1340

Base, Filter

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-50260

Gerotor Cover

$

$

Not available

55

Cub Cadet HG-70538

Kit, Filter
(Superseded to HG-51315)

$

$

Not available

56

Cub Cadet HG-51156

Charge Manifold

$

$

Not available

57

Cub Cadet HG-50796

Retainer, Motor Bearing

$

$

Not available

58

Cub Cadet HG-50776

Pin, Carrier

$

$

Not available

59

Cub Cadet HG-50763

15T Planet Gear

$

$

Not available

60

Cub Cadet HG-50646

67T Spur Gear

$

$

Not available

61

Cub Cadet HG-50645

21T Sun Gear

$

$

Not available

62

Cub Cadet HG-50769

Planet Thrust Plate

$

$

Not available

63

Cub Cadet HG-50764

51T Ring Gear

$

$

Not available

64

Cub Cadet HG-50765

Planetary Carrier

$

$

Not available

65

Cub Cadet HG-50647

Miter Gear, Diff. (Splined)

$

$

Not available

66

Cub Cadet HG-50648

Miter Gear, Diff.

$

$

Not available

67

Cub Cadet HG-50766

Shaft, Differential

$

$

Not available

68

Cub Cadet HG-50767

Differential Thrust Plate

$

$

Not available

69

Cub Cadet HG-50768

Flange Bearing

$

$

Not available

71

Cub Cadet HG-50788

Washer, 1.0 x 2.25 x .04

$

$

Not available

73

Cub Cadet HG-50791

Hex Jam Nut, 5/8-18

$

$

Not available

74

Cub Cadet HG-50771

Ball Bearing
(Superseded to HG-53656)

$17.99

$

In Stock, only 2 left!

0

75

Cub Cadet HG-50772

Seal, 1" ID x 2.0472 x .375
(Superseded to HG-53699)

$9.49

$

In Stock, only 2 left!

0

76

Cub Cadet HG-50825

Shaft, Axle

$

$

Not available

77

Cub Cadet HG-44130

Washer
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

80

Cub Cadet HG-50868

Torx Head Screw, 5/16-18

$2.99

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-44752

Needle Bearing

$

$

Not available

82

Cub Cadet HG-50777

Washer

$

$

Not available

83

Cub Cadet HG-50775

Retaining Ring

$

$

Not available

84

Cub Cadet HG-50773

Lip Seal

$

$

Not available

85

Cub Cadet HG-50779

Brake Disk

$

$

Not available

86

Cub Cadet HG-50132

Washer, .5 x 1.0 x .03

$4.49

$

Usually ships in 3-6 days

0

87

Cub Cadet HG-50836

Washer

$

$

Not available

88

Cub Cadet HG-50837

Screw, 5/16-24 x 1-1/2

$3.49

$

Usually ships in 3-6 days

0

89

Cub Cadet HG-44147

Ball Bearing .62 ID x 1.38 x .44

$34.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-51200

Spacer, Locating

$7.49

$

Usually ships in 3-6 days

0

92

Cub Cadet HG-50870

Countersunk Screw

$

$

Not available

95

Cub Cadet HG-50108

Hex Lock Nut, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

96

Cub Cadet HG-50866

Sleeve Bearing

$

$

Not available

102

Cub Cadet HG-50813

Torque Bracket

$

$

Not available

103

Cub Cadet HG-50818

Pulley
(Superseded to HG-72129)

$67.99

$

In Stock, only 3 left!

0

104

Cub Cadet HG-50848

Fan

$21.99

$

Usually ships in 3-6 days

0

106

Cub Cadet HG-50850

Spacer, Trunnion
(Superseded to HG-51604)

$

$

Not available

107

Cub Cadet HG-50851

Screw

$

$

Not available

109

Cub Cadet HG-50133

Bushing, Rubber

$

$

Not available

110

Cub Cadet HG-70302

Fitting Kit

$

$

Not available

111

Cub Cadet HG-70109

Cap, Vent Assembly

$12.99

$

Usually ships in 3-6 days

0

113

Cub Cadet HG-70301

Hose/Fitting Assembly

$

$

Not available

115

Cub Cadet HG-44133

Hex Nut, 1/2-20

$4.99

$

In Stock, only 4 left!

0

116

Cub Cadet HG-50859

Retaining Ring

$6.99

$

Usually ships in 3-6 days

0

117

Cub Cadet HG-9004800-2506

Std. Hdls. Pin

$4.49

$

Usually ships in 3-6 days

0

118

Cub Cadet HG-70276

Hub Assembly
(Superseded to HG-72080)

$

$

Not available

119

Cub Cadet HG-50863

Nut, Hex, 3/4-16
(Superseded to 912-3018)

$

$

Not available

120

Cub Cadet HG-44132

Puck, Brake
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

121

Cub Cadet HG-50874

Rib Neck Bolt, 2"

$

$

Not available

122

Cub Cadet HG-70633

Yoke, Brake Assembly

$20.99

$

Usually ships in 3-6 days

0

124

Cub Cadet HG-50936

Arm, Brake

$

$

Not available

125

Cub Cadet HG-44127

Pin, Brake
(Superseded to 941-0343)

$

$

Not available

126

Lockwasher, 1/4 (purchase locally)

$

$

Not available

127

Nut, 1/4-20 (purchase locally)

$

$

Not available

128

Cub Cadet HG-44142

Nut, Castle
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

129

Cub Cadet HG-44101

Cotter Pin
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

130

Cub Cadet HG-23711

Spacer

$11.99

$

Usually ships in 3-6 days

0

131

Cub Cadet HG-44134

Puck Plate
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

132

Cub Cadet HG-50865

Rib Neck Bolt, 3"

$

$

Not available

133

Cub Cadet HG-50869

Wheel Stud, 7/16-14

$

$

Not available

136

Cub Cadet HG-50384

Extension Spring

$

$

Not available

137

Cub Cadet HG-50882

Spring Pin

$

$

Not available

138

Cub Cadet HG-50653

Screw

$2.99

$

Usually ships in 3-6 days

0

139

Cub Cadet HG-44278

Washer, 7/8 x .265 x .125

$

$

Not available

141

Cub Cadet HG-50884

Spring, Brake Arm Bias

$10.99

$

Usually ships in 3-6 days

0

142

Hex Lock Nut, 5/16-18 (purchase locally)

$

$

Not available

143

Bolt, 5/16-18 x 2.5 (purchase locally)

$

$

Not available

144

Cub Cadet HG-50974

O-Ring

$

$

Not available

145

Cub Cadet HG-51157

Spring, Relief

$3.49

$

Usually ships in 3-6 days

0

146

Cub Cadet HG-9001214-4400

Ball

$3.49

$

Usually ships in 3-6 days

0

151

Cub Cadet HG-50919

Comp. Spring, Brake Anti-Drag

$3.99

$

Usually ships in 3-6 days

0

153

Cub Cadet HG-9005110-5600

Plug

$20.99

$

Usually ships in 3-6 days

0

154

Cub Cadet HG-50920

Wire Retaining Ring

$

$

Not available

157

Cub Cadet HG-50977

O-Ring

$

$

Not available

168

Cub Cadet HG-51151

Shouldered Torx Hd. Screw, 5/16-18

$

$

Not available

Cub Cadet HG-50928

Sealant

$103.99

$

In Stock, Qty 8

0

Cub Cadet HG-70492

Kit, Seal

$

$

Not available

20W50 oil (122oz fluid)

$

$

Not available
