GT 1554 (14AK13CK710) - Cub Cadet 54" Garden Tractor (2005 & Before) Hood & Grille Parts Diagram

54" Garden Tractor

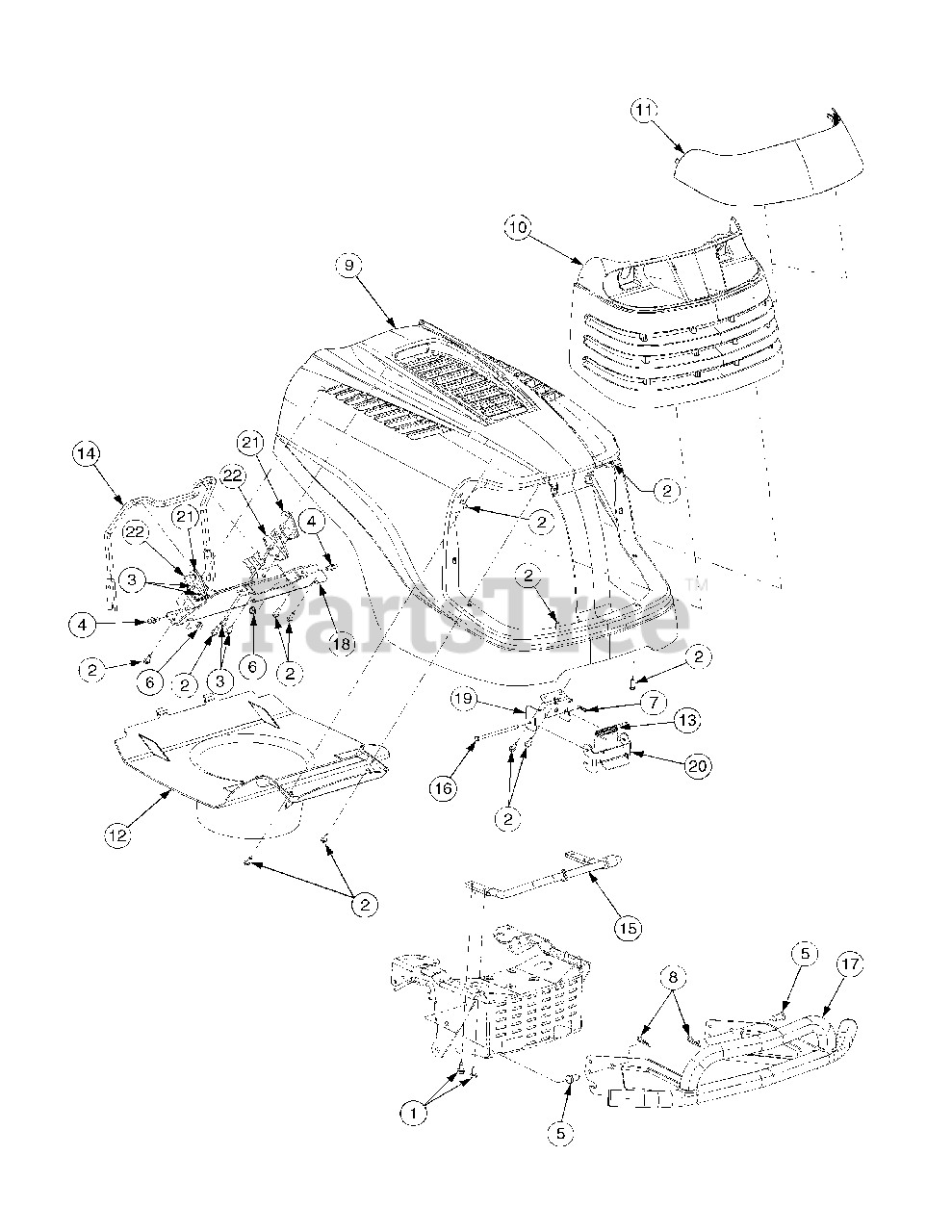

Hood & Grille Parts Diagram

  • Title

1

Cub Cadet 710-0726

Screw, Hx Wash. Hd Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0895

Screw, Hx Wash. Hd Tapp, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1276

Screw, Hx Wash. Hd Tapp, 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3170

Screw, Ball, 5/16-18

$13.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 711-0332

Pin,Clevis, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

6

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 759-04209

Hood Service Kit

Note: (contains 931-06887, 726-0233, 710-1242 and installation instructions)

$

$

Not available

9

Cub Cadet 931-06887

Hood
(Superseded to 931-06887A)

Note: Labels not included, Replaces 731-05053

$

$

Not available

9

Cub Cadet 726-0233

Push Nut .25ID x .50 OD

Note: Not shown, use with 931-06887

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1242

Screw, Hi Low 5/16-14 x .75

Note: Not shown, use with 931-06887

$4.99

$

In Stock, Qty 19

0

9

Cub Cadet 777D07558

Graphic, Cub Cadet RH

Note: Not shown

$38.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 777D07559

Graphic, Cub Cadet LH

Note: Not shown

$

$

Not available

9

Cub Cadet 777D08736

Graphic, GT1554 LH

Note: Not shown

$

$

Not available

9

Cub Cadet 777D08737

Graphic, GT1554 RH

Note: Not shown

$

$

Not available

10

Cub Cadet 731-05103

Grill
(Superseded to 931-05103)

$98.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-0963

Miniature Lamp, 12 V
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

10

Cub Cadet 725-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

11

Cub Cadet 731-05111

Lens, Hood
(Superseded to 931-05111)

$47.99

$

In Stock, Qty 11

0

12

Cub Cadet 731-05129

Plenum, Hood

$

$

Not available

13

Cub Cadet 732-04281

Spring, Latch, Hood
(Superseded to 732-04281A)

$8.49

$

In Stock, Qty 12

0

14

Cub Cadet 747-04354

Rod, Hood Pivot
(Superseded to 747-04354B)

$

$

Not available

15

Cub Cadet 747-04368

Rod, Hood Latch

$

$

Not available

16

Cub Cadet 747-1323A

Rod, .25 x 4.55

$11.99

$

In Stock, only 3 left!

0

17

Cub Cadet 749-04207

Bumper, Front
(Superseded to 683-04218-0637)

Variations

Cub Cadet 749-04207-0637

USE 683-04218-0637 BUMPER-FRO - POWDER BLACK (0637)

$164.99

$

Usually ships in 3-6 days

0

$164.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-05368

Cap, Bumper

$5.99

$

In Stock, Qty 11

0

18

Cub Cadet 783-04662

Bracket, Hood Hinge
(Superseded to 783-04971-0637)

Variations

Cub Cadet 783-04662-0499

Hood Hinge Bracket - CUB BEIGE (0499)

$

$

Not available

$

$

19

Cub Cadet 783-04714

Plate, Latch
(Superseded to 783-04714A)

$19.99

$

In Stock, Qty 6

0

20

Cub Cadet 783-04717

Bracket, Latch Pivot
(Superseded to 783-04717A)

$

$

Not available

21

Cub Cadet 783-04724

Bracket, Upper Pivot
(Superseded to 783-04724A)

$

$

Not available

22

Cub Cadet 783-04725

Bracket, Hood Pivot
(Superseded to 783-04725A)

$

$

Not available
