GT 1554 (14AK13CK710) - Cub Cadet 54" Garden Tractor (2005 & Before) Carburetor & Fuel System Parts Diagram

54" Garden Tractor

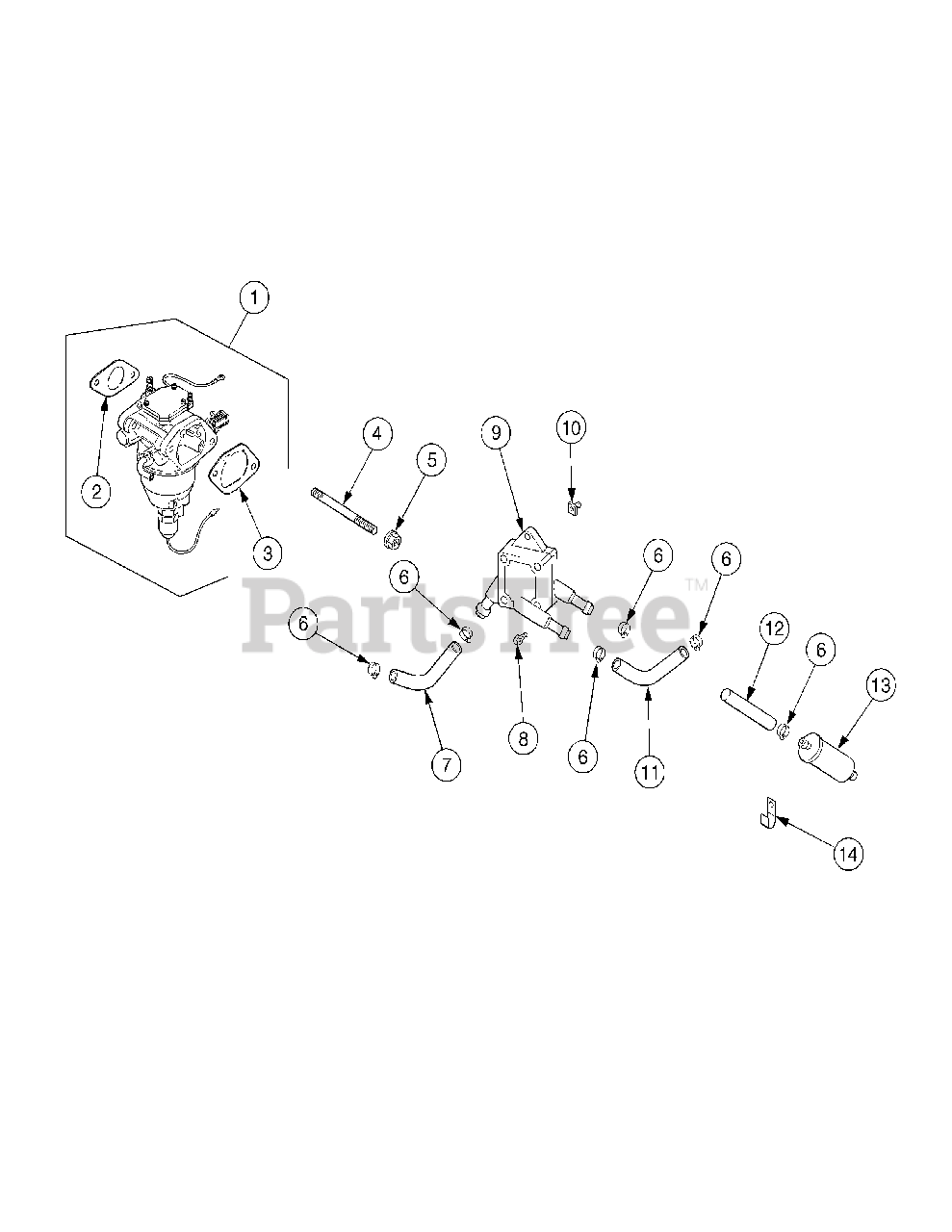

Carburetor & Fuel System Parts Diagram

  • Title
1

Cub Cadet KH-24-853-102-S

Kit, Carburetor w/Gaskets

$795.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-52-S

Gasket, Carburetor
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

4

Cub Cadet KH-M-629095-S

Stud, Intake Manifold

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-641060-S

Nut, Hex Flange, M6-1.0

$4.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-25-237-14-S

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-353-12

Line, Fuel, 11"

$

$

Not available

8

Cub Cadet KH-24-086-12

Screw, Hex Cap, M6-1.7 x 18

$

$

Not available

9

Cub Cadet KH-24-393-16

Pump, Pulse Fuel

$

$

Not available

10

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 9

0

11

Cub Cadet KH-15-353-04

Line, Fuel, 11-1/2

$

$

Not available

12

Cub Cadet KH-25-353-03-S

Line, Fuel, 13-3/4

$19.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-050-10-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

14

$5.49

$

In Stock, Qty 5

0

Cub Cadet KH-25-153-05-S

O-Ring, Heavy Duty Air Cleaner (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-234-02-S

Chamber, Float (not shown)

$137.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-431-01-S

Sleeve, Insulating (not shown)
(Superseded to KH-24-431-02-S)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-18-S

Kit, Overhaul w/Gaskets (not shown)

$79.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-757-19

Kit, Choke Repair w/Gaskets (not shown)

$

$

Not available

Cub Cadet KH-24-757-20

Kit, Gasket (not shown)

$

$

Not available

Cub Cadet KH-24-757-21-S

Kit, Accelerator Pump, w/Gaskets (not shown)

$120.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-22

Kit, Solenoid, w/Gaskets (not shown)

$

$

Not available
