GT 1554 (14AK13CK709) - Cub Cadet 54" Garden Tractor (2005 & Before) Head Valve Breather Parts Diagram

54" Garden Tractor

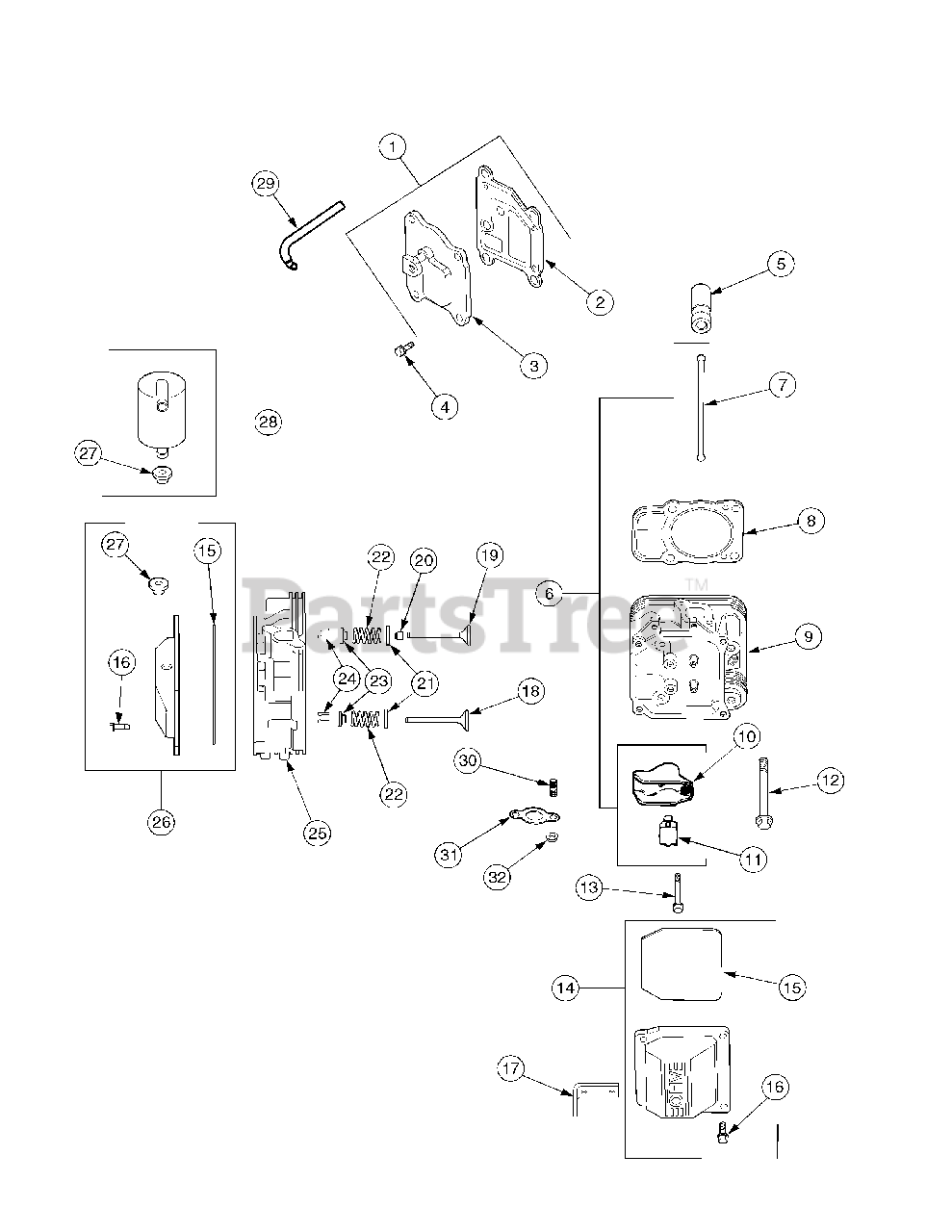

Head Valve Breather Parts Diagram

  • Title
1

Cub Cadet KH-24-033-03

Kit, Breather Cover

$

$

Not available

2

Cub Cadet KH-24-041-51-S

Gasket, Breather
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-096-87-S

Cover, Breather
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-M-645020-S

Screw, Hx Flange, M6-1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, Qty 9

0

6

Cub Cadet KH-24-755-66

Kit, Valve Train

$

$

Not available

$

$

Not available

8

Cub Cadet KH-24-841-03-S

Kit, Cylinder Hd Gasket (Includes Head Mtg. Hardware)
(Superseded to KH-24-841-04-S)

$45.99

$

In Stock, Qty 16

0

9

Cub Cadet KH-24-318-72-S

Head Assembly, #2 Cylinder
(Superseded to KH-24-318-116-S)

$

$

Not available

10

$

$

Not available

11

Cub Cadet KH-24-599-01

Pivot, Rocker Arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-12-086-16

Screw, Hex Flange
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

13

Cub Cadet KH-66-086-07-S

Screw, Hex Flange, M6-1.0 x 34
(Superseded to KH-M-640034-S)

$2.49

$

In Stock, Qty 18

0

14

Cub Cadet KH-24-755-141-S

Kit, Valve Cover

$35.99

$

In Stock, Qty 5

0

15

Cub Cadet KH-24-153-28-S

O-Ring
(Superseded to KH-24-153-30-S)

$11.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-M-651030-S

Screw, Hex Flange, M6-1.0 x 30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-24-445-01

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

18

Cub Cadet KH-24-016-01

Valve, Exhaust, Std
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, Qty 14

0

Cub Cadet KH-24-016-02

Valve, Exhaust, .010 (25mm)

$

$

Not available

19

Cub Cadet KH-24-017-01

Valve, Intake, Std.

$

$

Not available

Cub Cadet KH-24-017-02

Valve, Intake, .010 (25mm)

$

$

Not available

20

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

21

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 1 left!

0

22

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

23

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, only 3 left!

0

24

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 8

0

25

Cub Cadet KH-24-318-69-S

Head, Cylinder, #1
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

26

Cub Cadet KH-24-755-142-S

Kit, Valve Cover

$38.99

$

In Stock, only 1 left!

0

27

Cub Cadet KH-25-313-03-S

Grommet, Rubber

$11.99

$

In Stock, only 3 left!

0

28

Cub Cadet KH-24-755-57-S

Kit, Breather Separator
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 6

0

29

Cub Cadet KH-24-326-74-S

Hose, Breather
(Superseded to KH-24-326-93-S)

$13.99

$

In Stock, only 1 left!

0

30

Cub Cadet KH-25-072-04

Stud, M8-1.25 x 33
(Superseded to KH-25-072-24-S)

$3.99

$

In Stock, Qty 14

0

31

Cub Cadet KH-24-041-49-S

Gasket, Exhaust

$

$

Not available

32

Cub Cadet KH-M-0841080

Nut, Muffler Mtg., M8-1.25
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-24-755-147-S

Kit, Cylinder Head Hardware (not shown)

$96.99

$

In Stock, only 3 left!

0
