GT 1554 (14AK13CK709) - Cub Cadet 54" Garden Tractor (2005 & Before) Engine Accessories Parts Diagram

54" Garden Tractor

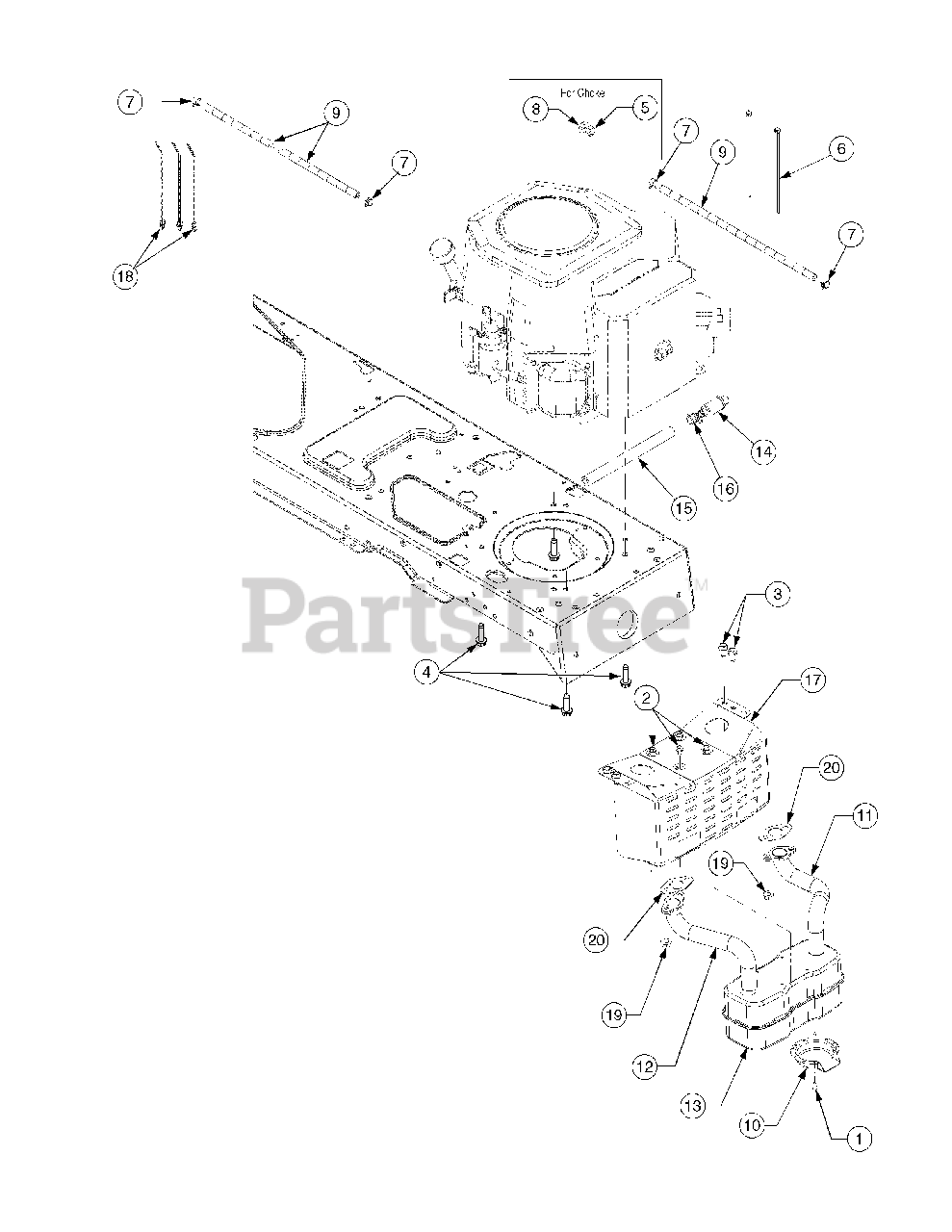

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 710-0227

Screw, #8-18, 0.500

$4.49

$

In Stock, Qty 15

0

2

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0726

Screw, Hx. Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1315

Screw, Hx. Wash. Hd. Tapp 3/8-16 x

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet 712-3005

Nut, Hex Flange Lock, 3/8-16, Gr5

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet 726-0205

Clamp, Hose, .490 Dia.

$3.99

$

In Stock, Qty 18

0

8

Cub Cadet 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 751-0535

Hose, Fuel Line, 45 in

$

$

Currently unavailable

10

Cub Cadet 751-0564A

Deflector, Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 6

0

11

Cub Cadet 751-0644B

Pipe, Exhaust, LH

$146.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751-0645A

Pipe, Exhaust, RH

$93.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 751-0805

Muffler, Dual Inlet
(Superseded to 951-0805A)

$123.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

15

Cub Cadet 751-3141

Hose, Extension, Oil Drain, 12in
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

16

Cub Cadet 751-3142

Cap, Oil, Drain

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 783-0615D

Shield, Heat, Muffler
(Superseded to 783-0615E-0637)

Variations

Cub Cadet 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

18

Cub Cadet 726-0154

Tie, Cable, Push Mount 7.5 Lg
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-3086

Nut, M8, 1.25

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-24-041-02

Gasket, Exhaust
(Superseded to KH-24-041-49-S)

$

$

Not available
