GT 1554 (14AK13CK709) - Cub Cadet 54" Garden Tractor (2005 & Before) Drive System Parts Diagram

54" Garden Tractor

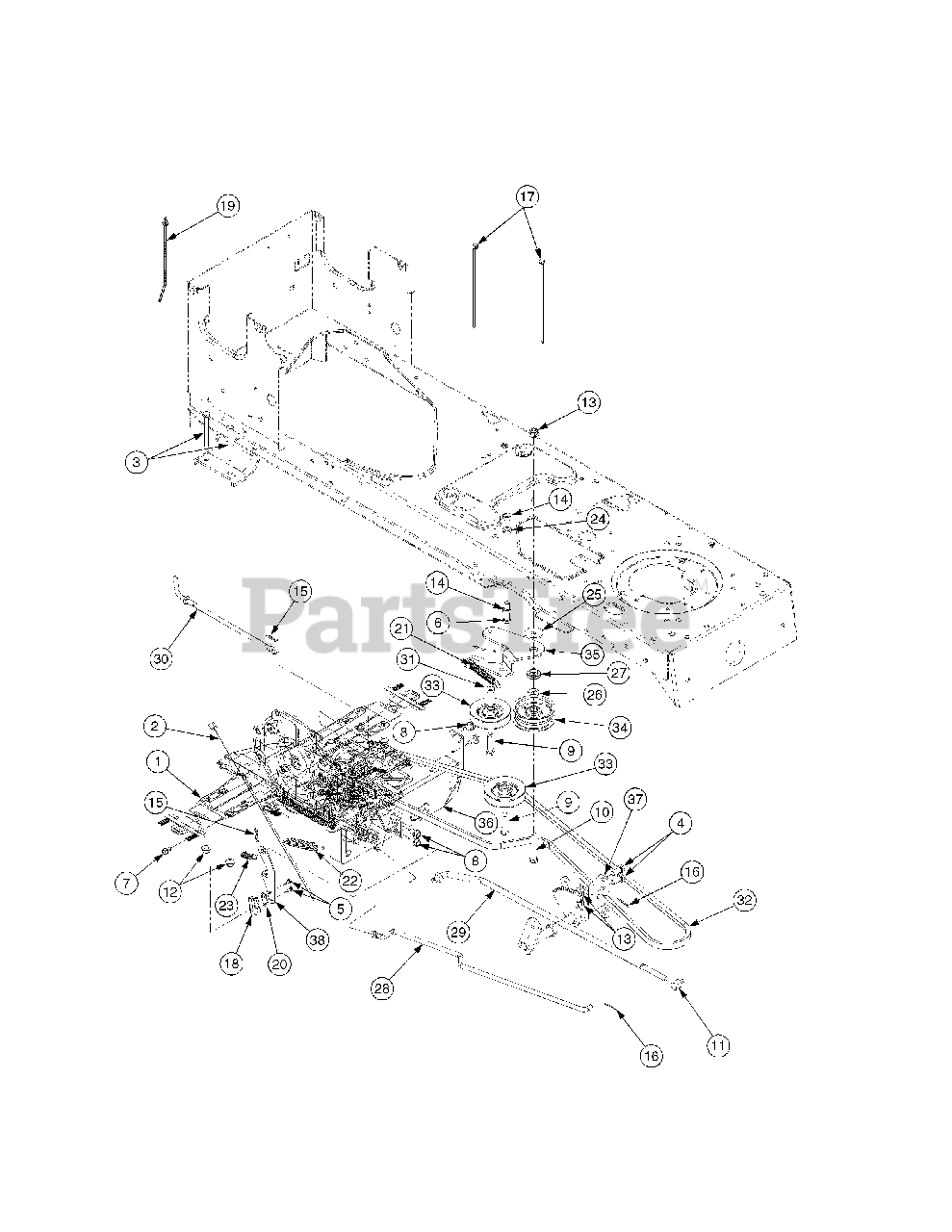

Drive System Parts Diagram

  • Title

1

Cub Cadet 618-0379

Transmission, Hydro
(Superseded to 753-05398)

$

$

Not available

2

Cub Cadet 629-04143

Harness, Rev

$

$

Not available

3

Cub Cadet 710-0176

Screw, Hex Cap, 5/16-18 x 2.75 GR5

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 GR5

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 710-0227

Screw, Hex Wash Hd Tapp, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0344

Hex Cap Screw, 3/8-16 x 1.5, GR5

$5.99

$

In Stock, Qty 11

0

7

Cub Cadet 710-0599

Screw, Hx Wash Hd Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0726

Screw, Hx Wash Hd Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1007

Screw, Hx Wash Hd Sems Tapp 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

10

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 711-0832

Ferrule, 3/8-24 x .375 Dia
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

12

Cub Cadet 712-3004A

Nut, Flange Insert Lock, 5/16-18 Gr5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

Nut, Flange Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3017

Nut, Hex, 3/8-16, GR5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0104

Pin, Cotter, .072 Dia. x 1.13 Lg

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0111

Pin, Cotter, 3/32, 1.0

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 725-1644

Switch, Spring, Short

$9.99

$

In Stock, Qty 11

0

19

Cub Cadet 726-0154

Tie, Cable, Push Mount 7.5 Lg
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 726-0320

Plate, Insulator Nut
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

21

Cub Cadet 732-0429A

Spring, Extension, .50 Dia x 3.97 Lg
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0716

Spring, Extension, .59 OD x 4.00 Lg
(Superseded to 732-0716D)

$13.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-3118

Spring, Extension, 3/8 OD x 1.44 Lg

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet 736-0169

Washer, Lock, 3/8 , Regular Duty

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0320

Washer, Flat, .38 x 1.38 x .125

$6.99

$

In Stock, Qty 7

0

26

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135 Hdn

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 738-0372B

Spacer, Shoulder, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

28

Cub Cadet 747-04140

Rod, Brake, LT

$

$

Not available

29

Cub Cadet 747-1119

Rod, Hydro Control

$

$

Not available

30

Cub Cadet 747-1121

Rod, Hydro Disengage
(Superseded to 747-1121A)

$

$

Not available

31

Cub Cadet 750-0535

Spacer, .376 ID x .625 OD x .22
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 754-0349

Belt, V Type A, 79.10 Lg
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

33

Cub Cadet 756-0116A

Pulley, Idler, V Type x 3.06 Dia
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

34

Cub Cadet 756-0981B

Pulley, Idler, Flat 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

35

Cub Cadet 783-04442

Bracket, Idler

Variations

Cub Cadet 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

In Stock, only 1 left!

0

36

Cub Cadet 783-0667B

Bracket, Transmission Torq

Variations

Cub Cadet 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 783-0745

Bracket, Speed Control
(Superseded to 783-0745-0637)

Variations

Cub Cadet 783-0745-0637

BRACKET-CONTROL SP - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 783-0782

Bracket, Actuator
(Superseded to 783-0782-0637)

Variations

Cub Cadet 783-0782-0637

Actuator Bracket, S - POWDER BLACK (0637)

$

$

Not available

$

$
