GT 1554 (14AK13CK709) - Cub Cadet 54" Garden Tractor (2005 & Before) Dash Panel Parts Diagram

54" Garden Tractor

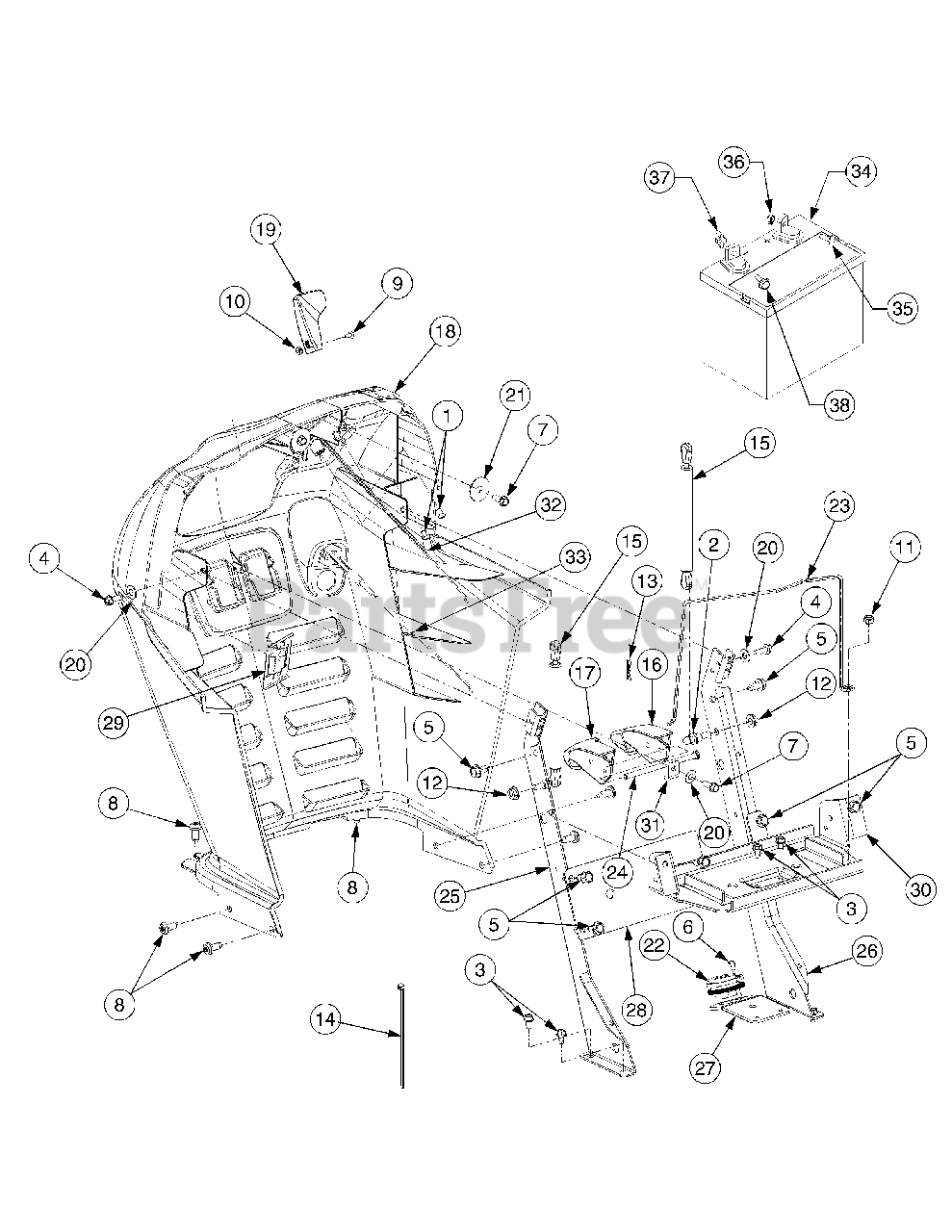

Dash Panel Parts Diagram

  • Title

1

Cub Cadet 710-0192

Screw, #10-24 X .375

$3.99

$

In Stock, Qty 12

0

2

Cub Cadet 710-04471

Screw, Ball, 5/16-18

$27.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0642

Screw, Hx. Wash. Hd, Tapp. 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0726

Screw, Hx. Wash. Hd, Tapp, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0837

Screw, Oval Cntrsnk, #10-16 x .625

$4.49

$

In Stock, Qty 5

0

7

Cub Cadet 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-1611B

Screw, Torx Hd. Tapp. 5/16-18 x .75

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-3217

Screw, Truss Mach., #8-32 x .375

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 712-0142

Nut, Hex, #8-32 GrA

$4.49

$

In Stock, Qty 10

0

11

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20 GR8

$3.99

$

In Stock, Qty 16

0

12

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 714-0104

Internal Cotter Pin, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 727-3194

Cylinder, Gas

$120.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-04293A

Lever, Dash, Brake
(Superseded to 731-04293B)

$30.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-04294A

Lever, Dash, Cruise

$17.99

$

In Stock, only 1 left!

0

18

Cub Cadet 731-05077

Dash
(Superseded to 731-05077C)

$

$

Not available

18

Cub Cadet 777I22459

Graphic, Dash Insert

$

$

Not available

19

Cub Cadet 731-3161

Knob, Throttle Control
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

20

Cub Cadet 736-0173

Washer, Flat, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0362

Washer, Flat, .33 x 1.25 x .06 HT

$4.49

$

In Stock, Qty 7

0

22

Cub Cadet 741-0587

Bearing, Steering Column

$4.49

$

In Stock, Qty 10

0

23

Cub Cadet 747-04215

Strap, Batter
(Superseded to 747-04215-0637)

Variations

Cub Cadet 747-04215-0637

Battery Strap - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 7

0

$16.99

$

In Stock, Qty 7

0

24

Cub Cadet 747-1323A

Rod, .25 x 4.55

$11.99

$

In Stock, only 3 left!

0

25

Cub Cadet 783-04285B

Plate, Dash Support RH
(Superseded to 783-04285F-0637)

Variations

Cub Cadet 783-04285B-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

26

Cub Cadet 783-04323B

Plate, Dash Support, LH
(Superseded to 783-04323F-0637)

Variations

Cub Cadet 783-04323B-0637

USE 783-04323F-0637 SUPPORT-D - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-04475

Bracket, Steering Support
(Superseded to 783-04475-0637)

Variations

Cub Cadet 783-04475-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 783-04506A

Plate, Dash Support
(Superseded to 783-04506C-0637)

Variations

Cub Cadet 783-04506A-0637

USE 783-04506B-0637 DASH SUPP - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

30

Cub Cadet 783-1447A

Bracket, Support, Battery
(Superseded to 783-1447C-0716)

Variations

Cub Cadet 783-1447A-0716

SUPPORT BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

31

Cub Cadet 783-1499

Bracket, Rod, Dash
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 746-1100

Cable, Throttle, 38.0 Lg
(Superseded to 946-1100)

$34.99

$

In Stock, Qty 9

0

33

Cub Cadet 746-04120

Cable, Choke, 40.5 Lg.
(Superseded to 746P04120)

$34.99

$

In Stock, only 3 left!

0

34

Cub Cadet 925-1707D

Battery, 235 CCA, Dry

$

$

Not available

35

Cub Cadet 710-0703

Screw, Carriage, 1/4-20, .75,

$4.49

$

In Stock, Qty 15

0

36

Cub Cadet 712-0271

Nut, Hex, 1/4-20, Sems

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 738-1132

Screw, Shoulder, 1/4-20, .25 x .15

$5.49

$

In Stock, only 2 left!

0
