GT 1554 (14AK13CK010) - Cub Cadet 54" Garden Tractor Seat Parts Diagram

54" Garden Tractor

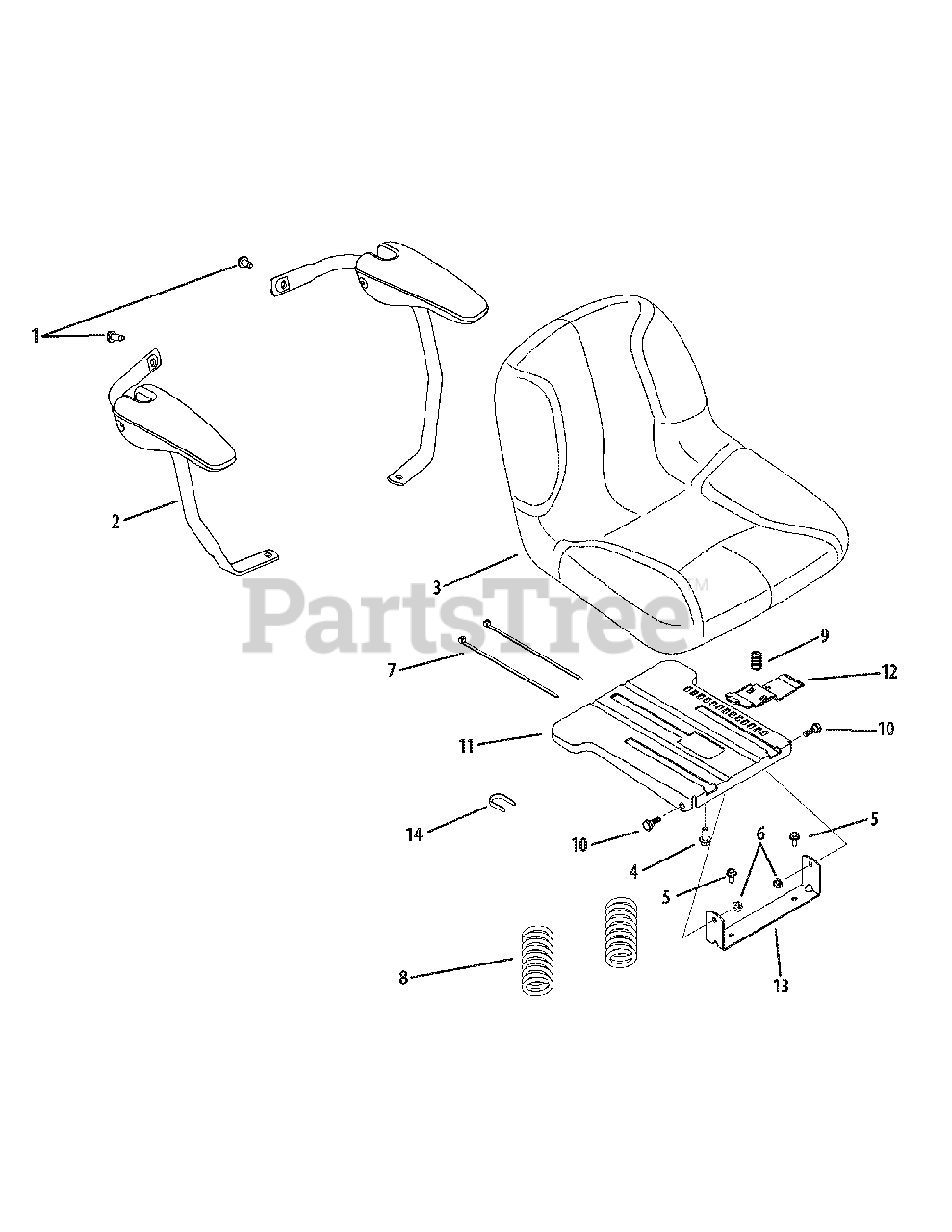

Seat Parts Diagram

  • Title

1

Cub Cadet 710-0262

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 9

0

2

Cub Cadet 757-04073

Seat Arm

$130.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 757-04090

Seat

$291.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04482

Screw, Hex Flange, 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-04484

Screw, Hex Washer, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 732-04561

Spring, Comp., 1.71 x 3.735 x .238

$16.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 732-04563

Spring, Comp., .68 x 1.065 x .055

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 938-0296

Screw, Shldr., 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 783-06049-4021

Bracket, Seat Moun
(Superseded to 783-06049-0637)

$68.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 783-06050

Lever, Seat Adjust

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 783-06088-4021

Bracket, Seat Pivot
(Superseded to 783-06088A-0637)

$21.99

$

In Stock, only 3 left!

0

14

Cub Cadet 783-06448

Clip, Ret. Switch

$5.99

$

In Stock, only 3 left!

0
