GT 1554 (14AK13CK010) - Cub Cadet 54" Garden Tractor Lift Assembly Parts Diagram

54" Garden Tractor

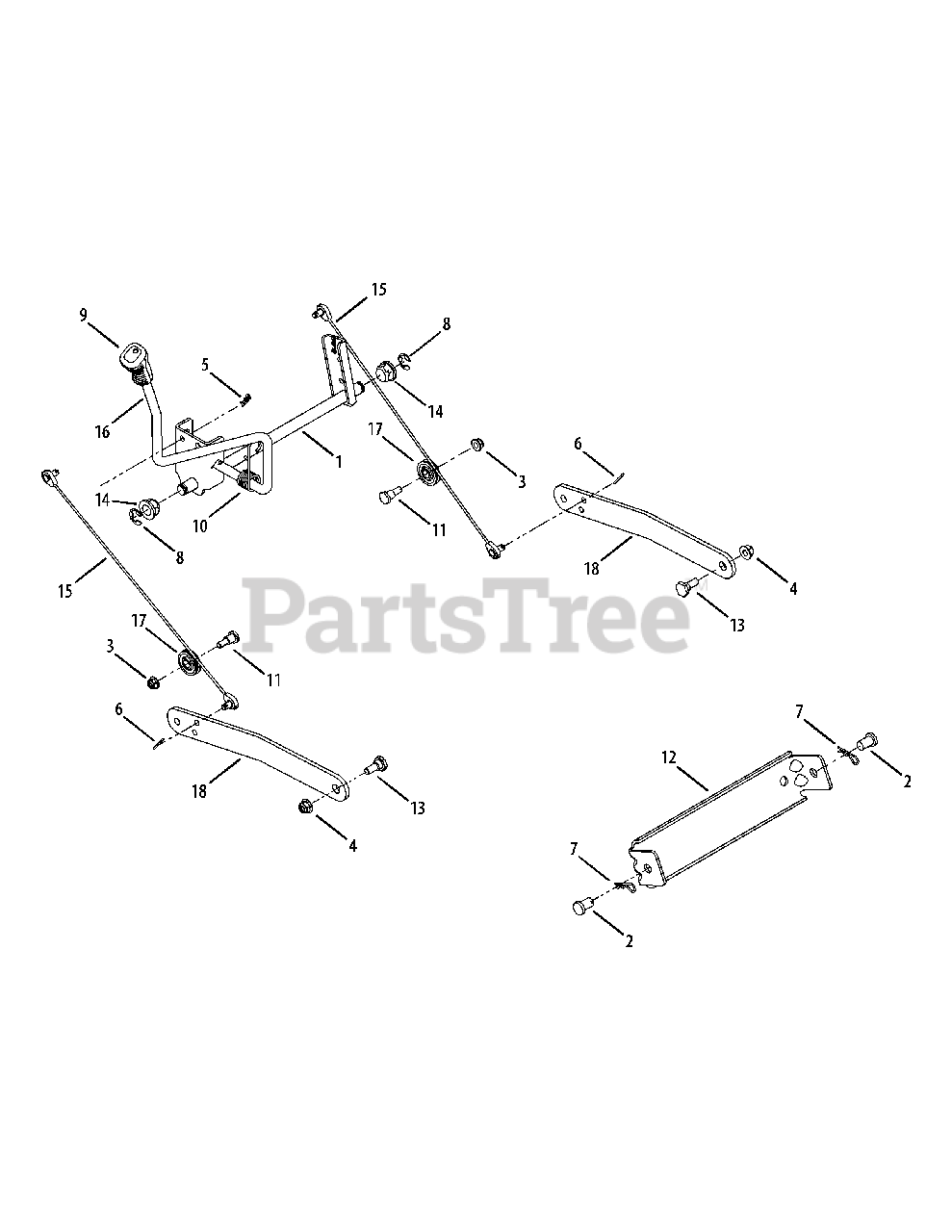

Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 683-04301-0637

Shaft Assembly, Lift (54" Deck)

$

$

Not available

2

Cub Cadet 911-0332

Pin, Clevis, .50 Dia x .78 Lg

$16.99

$

In Stock, Qty 17

0

3

Cub Cadet 712-04063

Nut, Nylon Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 5

0

4

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 914-0104

Pin, Cotter, .072 Dia. x 1.13 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

7

Cub Cadet 914-04023

Pin, Click, .092 x 1.64 Lg
(Superseded to 714-04023)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 716-0106A

E-ring, .625 Dia. Shaft

$5.49

$

In Stock, only 2 left!

0

9

Cub Cadet 720-0311

Grip, Handle

$15.99

$

In Stock, only 1 left!

0

10

Cub Cadet 732-0874

Spring, Torsion

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 738-0138A

Screw, Hex Cap, 5/16-18x.620 Gr2

$6.99

$

In Stock, only 2 left!

0

12

Cub Cadet 783-0720C-0637

Bracket, Deck

$45.99

$

In Stock, only 2 left!

0

13

Cub Cadet 938-0380

Shldr. Screw, 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

14

Cub Cadet 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet 746-0968

Cable, Lift, 16.16 Lg

$19.99

$

In Stock, Qty 20+

0

16

Cub Cadet 747-04447

Handle, Lift

$44.99

$

In Stock, only 3 left!

0

17

Cub Cadet 756-1154

Pulley, Roller

$7.99

$

In Stock, only 2 left!

0

18

Cub Cadet 783-05546-0637

Arm, Lift
(Superseded to 783-05546A-0637)

$20.99

$

In Stock, only 2 left!

0
