GT 1554 (14AK13CK010) - Cub Cadet 54" Garden Tractor Kohler SV740-0010 Fuel System Parts Diagram

54" Garden Tractor

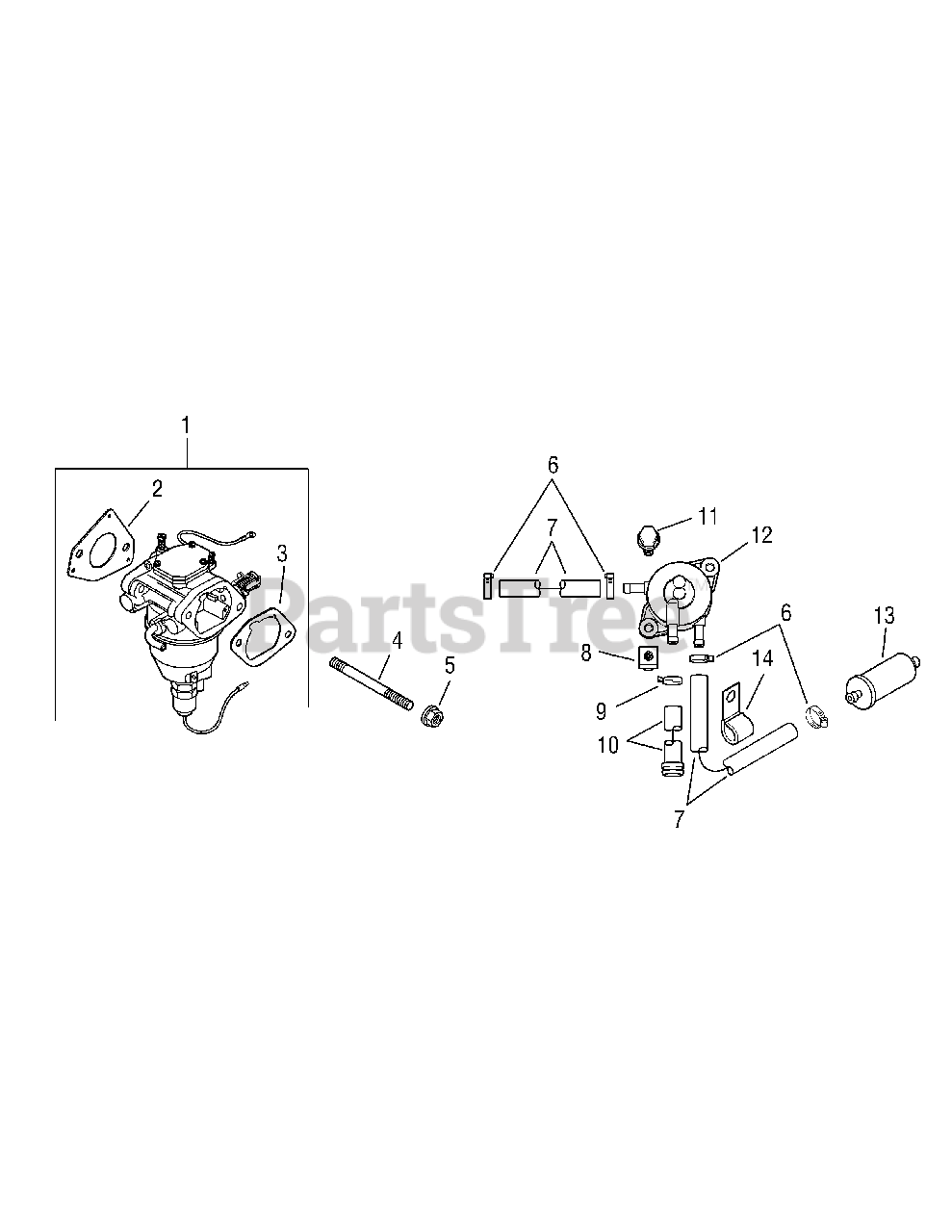

Kohler SV740-0010 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-32-853-12-S

Carburetor Kit w/ Gaskets (Inc. 2 & 3)

$359.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

4

Cub Cadet KH-M-629105-S

Carburetor Stud
(Superseded to KH-25-072-25-S)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

Hex Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 6

0

6

Cub Cadet KH-25-237-14-S

Hose Clamp
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-111-34-S

Fuel Line, 24
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

8

Cub Cadet KH-24-100-01

Plastic Nut
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

9

Cub Cadet KH-25-237-01-S

Hose Clamp

$3.49

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-32-326-07-S

Fuel Pump Hose

$4.49

$

In Stock, Qty 6

0

11

Cub Cadet KH-24-086-12

Hex Cap Screw, M6 x 1.7 x 18

$

$

Not available

12

Cub Cadet KH-24-393-16

Pulse Fuel Pump

$

$

Not available

13

Cub Cadet KH-25-050-22-S1

Fuel Filter

$9.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-47-154-01-S

Cable Clip

$5.49

$

In Stock, only 4 left!

0

NS

Cub Cadet KH-24-757-36-S

Service Choke Repair Kit

$116.99

$

In Stock, only 1 left!

0

NS

Cub Cadet KH-24-757-38-S

Service Gasket Repair Kit

$32.99

$

In Stock, only 1 left!

0

NS

Cub Cadet KH-24-757-44-S

Float Kit w/ Gaskets

$94.99

$

In Stock, only 1 left!

0

NS

Cub Cadet KH-24-757-45-S

Solenoid Valve Kit w/ Gaskets

$246.99

$

In Stock, only 1 left!

0

NS

Cub Cadet KH-24-757-46-S

Overhaul Kit w/ Gaskets

$137.99

$

In Stock, only 1 left!

0
