GT 1554 (14AK13CK010) - Cub Cadet 54" Garden Tractor Engine Accessories Parts Diagram

54" Garden Tractor

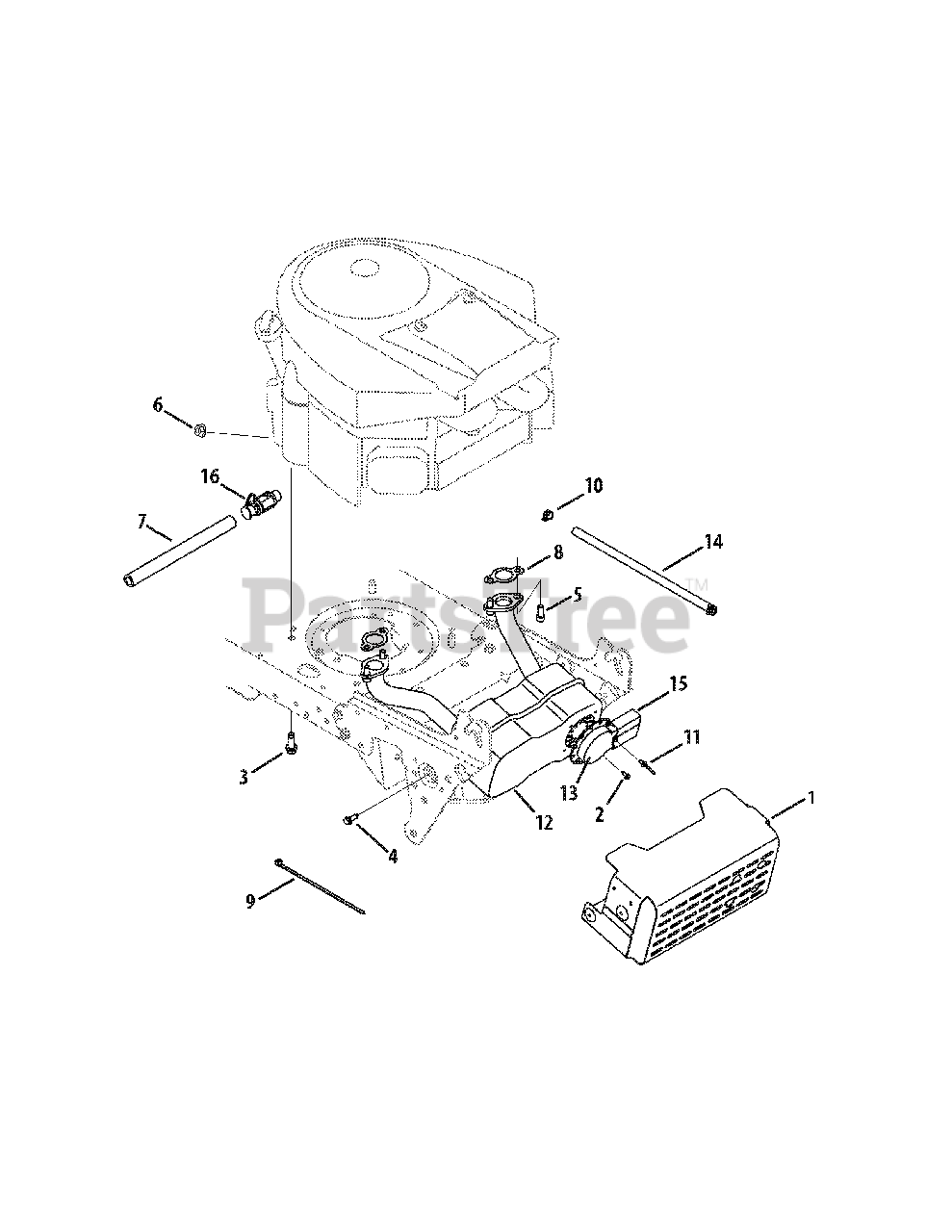

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 683-04549-0637

Muffler Assembly Shield
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04683

TT Screw 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0642

TT Screw 1/4-20 x 0.750

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1314A

Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

7

Cub Cadet 751-3141-14

OIl Drain Extension Hose

$11.99

$

In Stock, Qty 7

0

8

Cub Cadet 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 728-04000

Pop Rivets, .188 x .300

$6.99

$

In Stock, Qty 7

0

12

Cub Cadet 751-10528

Twin Inlet Muffler
(Superseded to 951-10528B)

$160.99

$

In Stock, only 2 left!

0

13

Cub Cadet 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 3 left!

0

14

Cub Cadet 751-10349-28

Fuel Line Hose

$41.99

$

In Stock, only 1 left!

0

15

Cub Cadet 751-10353

Long Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 951-10517A

Oil Drain Valve

$24.99

$

In Stock, only 1 left!

0

Cub Cadet 751K4723702

Clamp
(Superseded to KH-47-237-02-S)

Note: Not Shown

$10.99

$

Usually ships in 2-5 days

0

Cub Cadet 751K2408643

Screw

Note: Not Shown

$

$

Not available
