GT 1554 (14AK13CK010) - Cub Cadet 54" Garden Tractor Drive System Parts Diagram

54" Garden Tractor

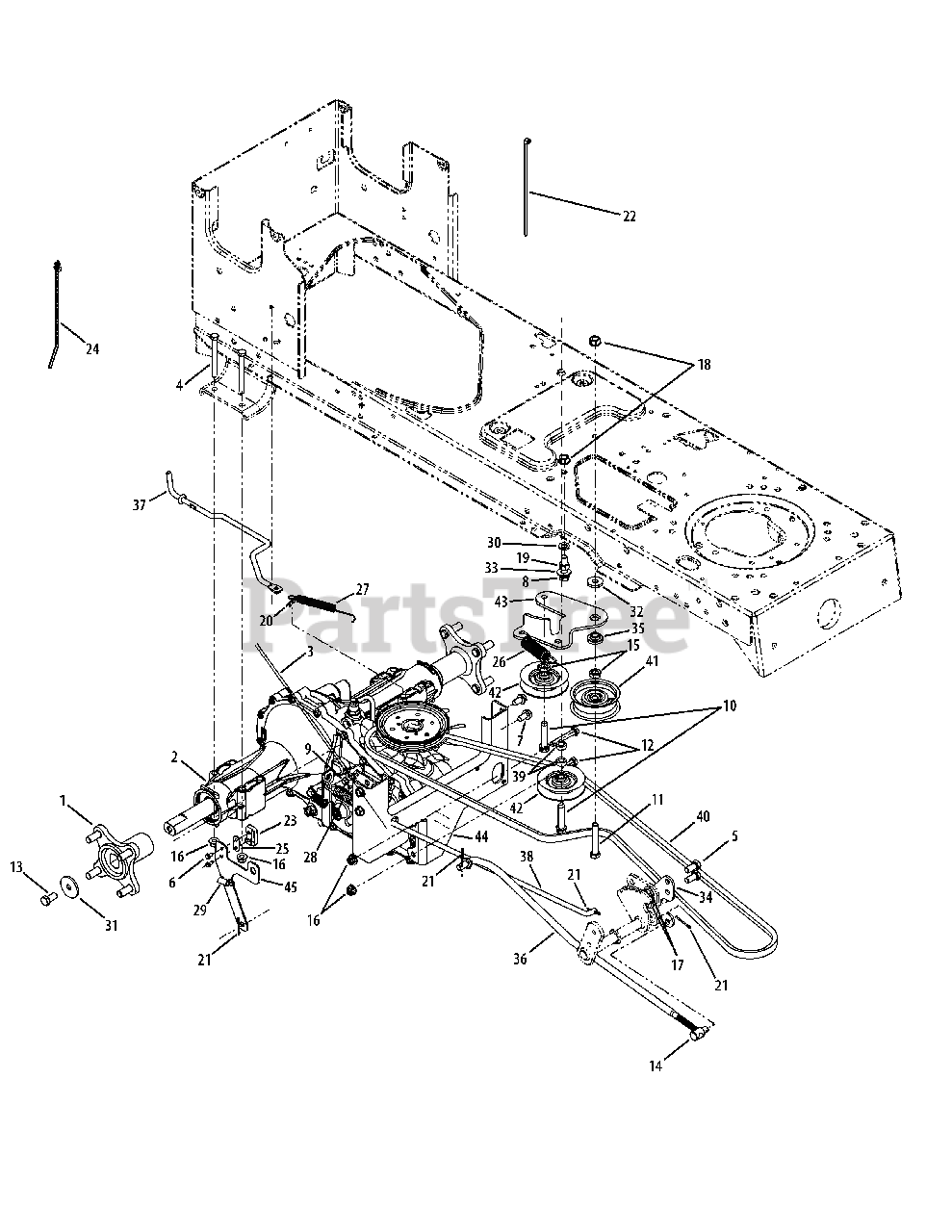

Drive System Parts Diagram

  • Title

1

Cub Cadet 918-04317

Hub Assembly

$116.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04468

Transmission, Hydrostatic

$1778.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 629-0949B

Wire Harness, Reverse

$43.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0189

Screw, Hex Cap, 5/16-18 x 3.00 Gr5

$6.49

$

In Stock, Qty 5

0

5

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 Gr5

$4.49

$

In Stock, Qty 15

0

6

Cub Cadet 710-0227

Screw, Hex Wash Hd Tapp, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04484

Screw, Hex Cap, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.50 Gr5

$4.49

$

In Stock, Qty 6

0

9

Cub Cadet 710-0599

Screw, Self-Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1008

Sems Screw, 3/8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

11

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25, Gr5

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3103

Screw, Hex Cap, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3119

Screw, Hex Cap Lock, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 911-0832

Ferrule, 3/8-24 x .375 Dia

$15.99

$

In Stock, only 4 left!

0

15

Cub Cadet 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04063

Nut, Flange Insert Lock, 5/16-18 Gr5

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04065

Nut, Flange Insert Lock, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 912-0431

Nut, Flange Insert Lock, 3/8-16 GrF

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 912-3017

Nut, Hex, 3/8-16, GR5
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 914-0104

Pin, Cotter, .072 Dia. x 1.13
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

22

Cub Cadet 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 725-1644

Switch, Spring, Short

$9.99

$

In Stock, Qty 11

0

24

Cub Cadet 926-0154

Tie, Cable, Push Mount 7.5

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 926-0320

Plate, Insulator Nut

$6.99

$

In Stock, Qty 11

0

26

Cub Cadet 732-04323B

Spring, Extension, .77 Dia x 3.7 Lg

$12.99

$

In Stock, only 1 left!

0

27

Cub Cadet 732-04528

Spring, Extension, .50 OD x 5.00 Lg

$9.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 732-0716D

Spring, Extension, .59 OD x 4.00 Lg

$13.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 732-3118

Spring, Extension, 3/8 OD x 1.44 Lg

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 936-0169

Washer, Lock, 3/8 , Regular Duty
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0227

Washer, Flat, .390 x 1.50 x .134
(Superseded to 736-0227)

$

$

Not available

32

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .135

$4.49

$

In Stock, only 3 left!

0

33

Cub Cadet 936-0300

Washer, Flat, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 783-0745-0637

Bracket, Speed Control

$

$

Not available

35

Cub Cadet 738-0372B

Spacer, Shoulder, 1.00 x .38 x .38

$9.49

$

In Stock, Qty 20+

0

36

Cub Cadet 747-04666

Rod, Hydro Control

$

$

Not available

37

Cub Cadet 747-04838A

Rod, Hydro Disengage

$

$

Not available

38

Cub Cadet 747-04873

Rod, Brake

$

$

Not available

39

Cub Cadet 750-04776

Spacer, .380 x .625 x .265

$5.49

$

In Stock, only 3 left!

0

40

Cub Cadet 954-0461

Belt, V-Type

$59.99

$

In Stock, Qty 20+

0

41

Cub Cadet 756-04224

Pulley, Idler, Flat 2.75 OD

$26.99

$

In Stock, Qty 20+

0

42

Cub Cadet 756-04325

Pulley, Idler, Flat 3.06 OD

$24.99

$

In Stock, Qty 20+

0

43

Cub Cadet 783-04442-0637

Bracket, Idler

$35.99

$

In Stock, only 1 left!

0

44

Cub Cadet 783-05443-0637

Bracket, Torque

$

$

Not available

45

Cub Cadet 783-05841

Bracket, Actuator
(Superseded to 753-06760)

$13.99

$

Usually ships in 3-6 days

0
