GT 1554 (14AK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007) Courage Engine Oil Pan & Lubrication Parts Diagram

54" Garden Tractor

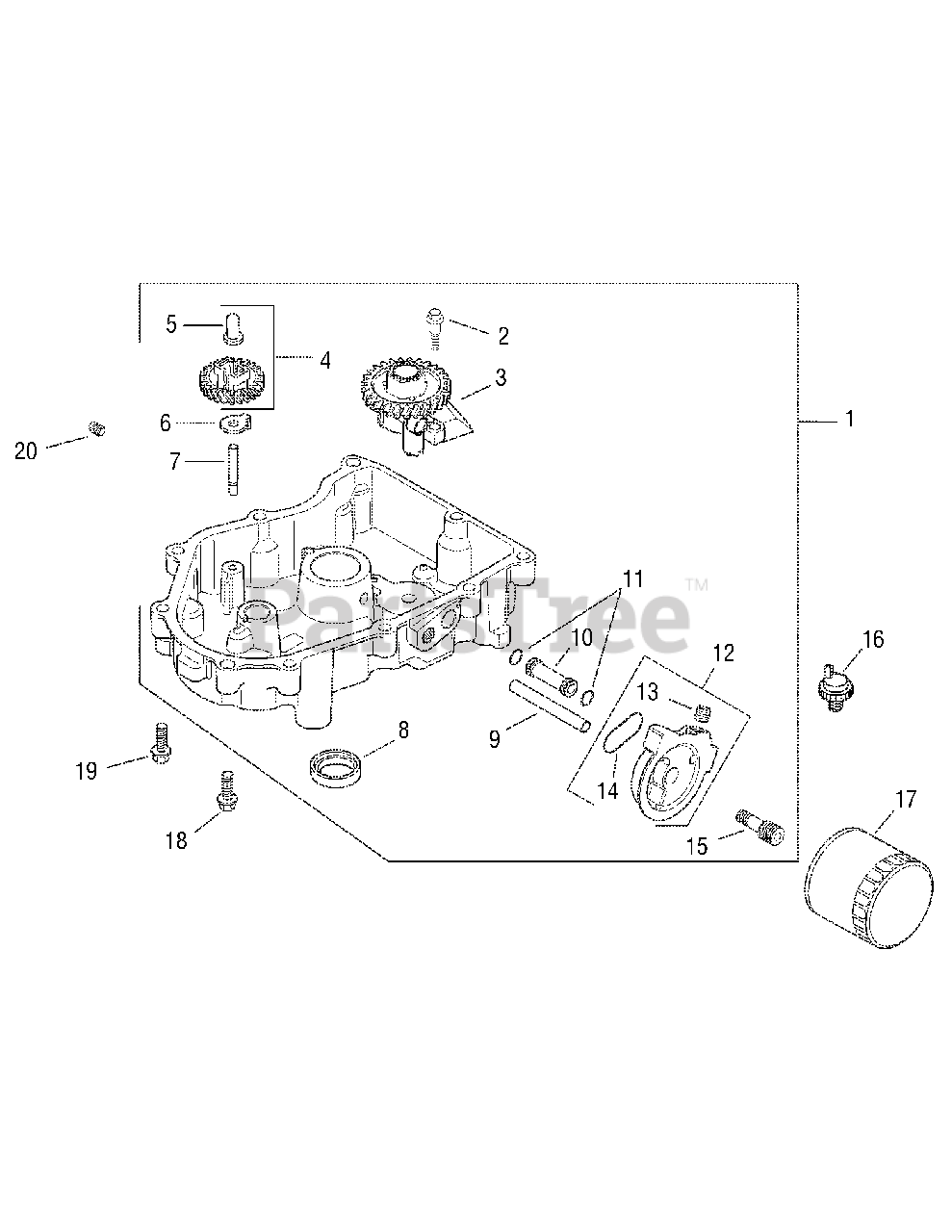

Courage Engine Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-32-199-02-S

Pan assembly, oil (Includes 2-15)
(Superseded to KH-32-199-20-S)

$

$

Not available

2

Cub Cadet KH-32-086-01-S

Screw, hex. flange thread forming shoulder

$2.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-32-393-08-S

Oil pump assembly
(Superseded to KH-32-393-10-S)

$

$

Not available

4

Cub Cadet KH-24-043-12

Kit, governor gear w/pin (Includes 5)

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, governor regulating

$

$

Not available

6

Cub Cadet KH-24-448-02-S

Tab, locking

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KH-12-144-02

Shaft, governor gear

$

$

Not available

8

Cub Cadet KH-52-032-08-S

Seal, oil (PTO end)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-32-123-01-S

Tube, oil feed - filter to oil pan

$

$

Not available

10

Cub Cadet KH-32-123-03-S

Tube, oil feed - oil pan to filter

$

$

Not available

11

Cub Cadet KH-24-153-01

O-Ring

$

$

Not available

12

Cub Cadet KH-32-029-10-S

Adapter, oil filter (Includes 13,14)

$

$

Not available

13

Cub Cadet KH-25-139-60-S

Plug, hex. ctsk. 1/8"

$3.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-32-153-02-S

O-Ring, oil filter adapter

$

$

Not available

15

Cub Cadet KH-32-136-03-S

Nipple, oil filter

$9.49

$

In Stock, only 1 left!

0

16

Cub Cadet KH-25-099-24-S

Switch, pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, Qty 6

0

17

Cub Cadet KH-52-050-02

Filter, oil
(Superseded to KH-52-050-02-S)

$14.99

$

In Stock, Qty 20+

0

18

Cub Cadet KH-24-086-17-S

Screw, hex. flange M8x1.25x45

$2.49

$

In Stock, Qty 5

0

19

Cub Cadet KH-24-086-16-S

Screw, hex. flange M8x1.25x45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 5

0

20

Cub Cadet KH-25-139-57-S

Plug, sq. hd. solid 3/8"

$2.49

$

In Stock, only 3 left!

0
