GT 1554 (14AK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007) Courage Engine Ignition and Electrical Parts Diagram

54" Garden Tractor

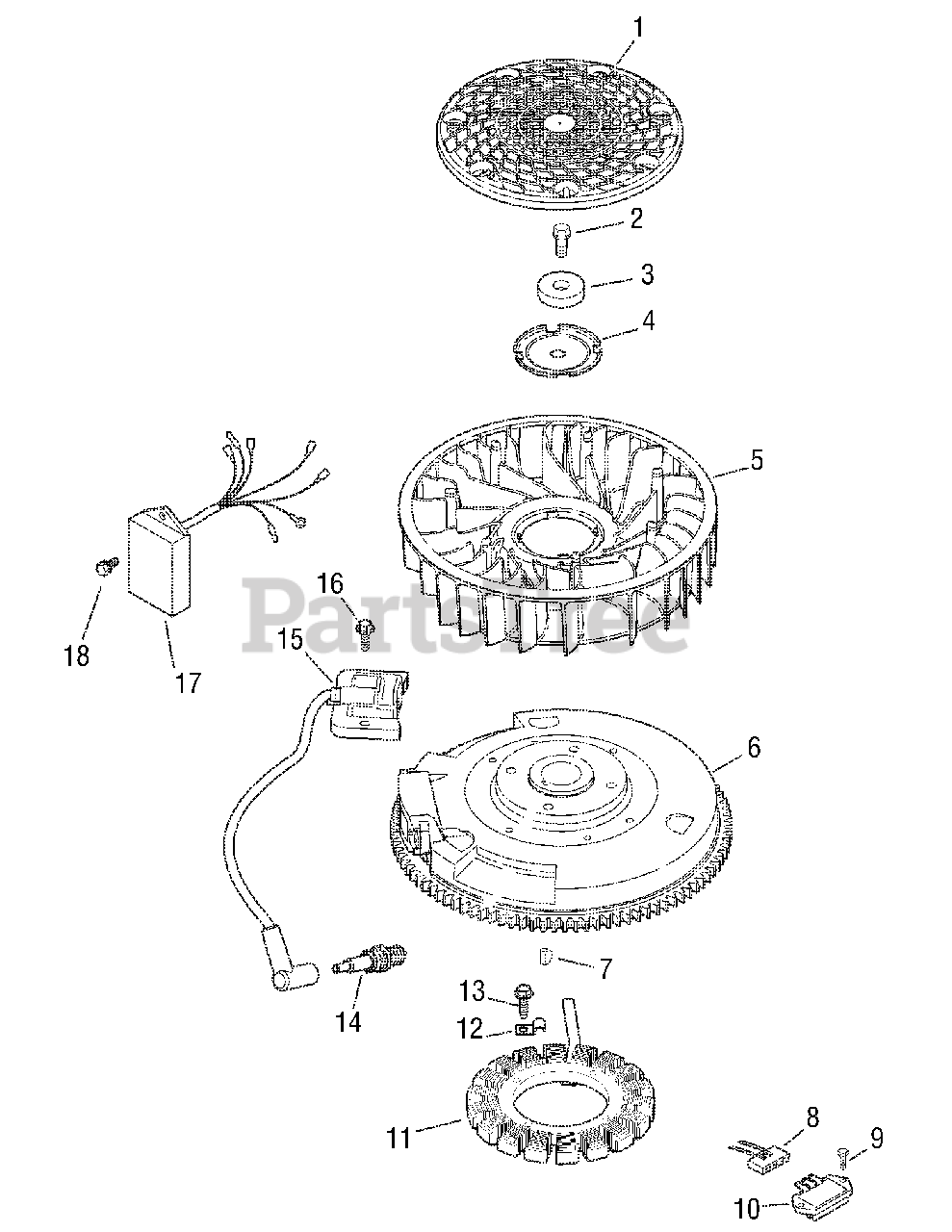

Courage Engine Ignition and Electrical Parts Diagram

  • Title
1

Cub Cadet KH-32-162-03-S

Screen, grass

$5.49

$

In Stock, Qty 7

0

2

Cub Cadet KH-12-086-14

Screw, hex. flange M10x1.5x45
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

3

Cub Cadet KH-12-468-03

Washer, plain 3/8"

$

$

Not available

4

Cub Cadet KH-20-146-02-S

Plate, fan mounting
(Superseded to KH-20-146-05-S)

$2.99

$

In Stock, Qty 11

0

5

Cub Cadet KH-32-157-01-S

Fan
(Superseded to KH-32-755-38-S)

$21.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-32-025-05-S

Flywheel
(Superseded to KH-32-025-21-S)

$347.99

$

In Stock, only 1 left!

0

$

$

Not available

8

Cub Cadet KH-41-403-09

Rectifier-regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

9

Cub Cadet KH-236602-S

Connector (3 contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-M-551016-S

Screw, heavy hex. flange M5x0.8x16

$2.49

$

In Stock, only 1 left!

0

11

Cub Cadet KH-54-755-09-S

Kit, 15 amp stator
(Superseded to KH-237878)

$

$

Not available

12

$5.49

$

In Stock, Qty 5

0

13

Cub Cadet KH-M-548025-S

Screw, hex. head thread forming M5x0.8x25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet 759-3336

Spark plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

15

Cub Cadet KH-24-584-36-S

Module, ignition

$102.99

$

In Stock, only 2 left!

0

16

Cub Cadet KH-M-545020-S

Screw, hex. flange thread forming M5x0.8x20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

17

Cub Cadet KH-24-584-31-S

Module, speed advance

$

$

Not available

18

Cub Cadet KH-M-448010

Screw, hex. flange thread forming

$

$

Not available

Cub Cadet KH-32-176-05-S

Wire Harness, Engine

Note: not shown

$

$

Not available

Cub Cadet KH-25-454-03-S

Wire Tie

Note: not shown

$2.49

$

Usually ships in 2-5 days

0
