GT 1554 (14AK13BK756) - Cub Cadet 54" Garden Tractor (2005 - 2007) Command Engine Fuel System Parts Diagram

54" Garden Tractor

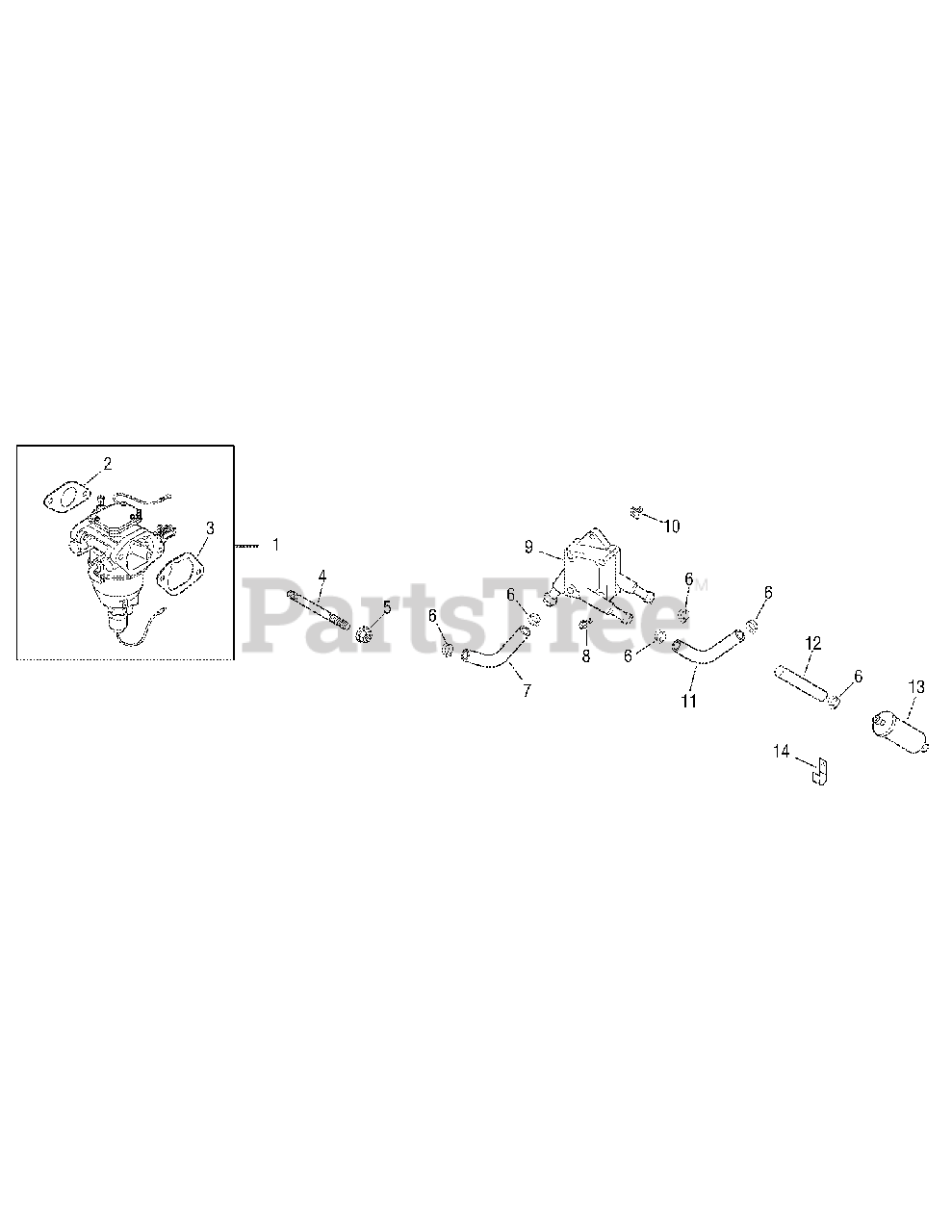

Command Engine Fuel System Parts Diagram

  • Title
1

Cub Cadet KH-24-853-102-S

Kit, carburetor w/gaskets (Includes 2-4 & 24 153 05-S)

$795.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-52-S

Gasket, carburetor
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

Gasket, air cleaner base

$

$

Not available

4

Cub Cadet KH-M-629095-S

Stud, intake manifold

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

Nut, hex. flange M6 x 1.0

$4.49

$

In Stock, Qty 8

0

6

Cub Cadet KH-25-237-14-S

Clamp, hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-353-12

Line, fuel 11 inches

$

$

Not available

8

Cub Cadet KH-24-086-12

Screw, hex. cap. M6 x 1.7 x 18

$

$

Not available

9

Cub Cadet KH-24-393-16

Pump, fuel - pulse

$

$

Not available

10

Cub Cadet KH-24-100-01

Nut, plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

11

Cub Cadet KH-15-353-04

Line, fuel 11-1/2"

$

$

Not available

12

Cub Cadet KH-25-353-03-S

Line, fuel 13-3/4"

$19.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-050-10-S

Filter, fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

14

$5.49

$

In Stock, only 4 left!

0

Cub Cadet KH-25-153-05-S

O-Ring, heavy-duty air cleaner

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-234-02-S

Chamber, float

Note: NOT ILLUSTRATED

$137.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-431-01-S

Sleeve, insulating
(Superseded to KH-24-431-02-S)

Note: NOT ILLUSTRATED

$6.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-18-S

Kit, overhaul w/gaskets

Note: NOT ILLUSTRATED

$79.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-757-19

Kit, choke repair w/gaskets

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-24-757-20

Kit, gasket w/gaskets

Note: NOT ILLUSTRATED

$

$

Not available

Cub Cadet KH-24-757-21-S

Kit, accelerator pump w/gaskets

Note: NOT ILLUSTRATED

$120.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-22

Kit, solenoid replacement w/gaskets

Note: NOT ILLUSTRATED

$

$

Not available
