GT 1554 (14AK13BK709) - Cub Cadet 54" Garden Tractor (2005 - 2007) Power Take-Off System Parts Diagram

54" Garden Tractor

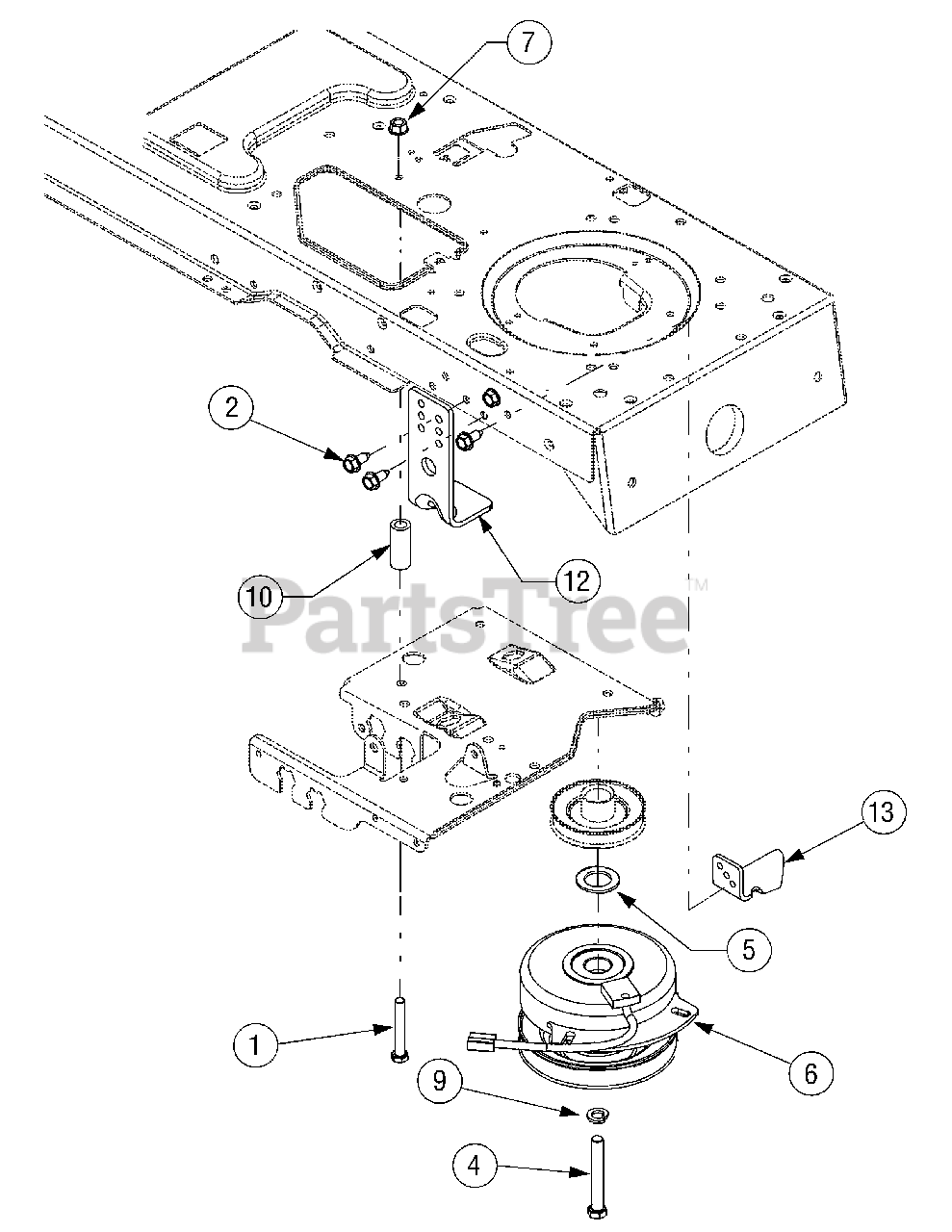

Power Take-Off System Parts Diagram

  • Title
1

Cub Cadet 710-3011

Screw, 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0726

Screw, 5/16-12, .75

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-1260A

Screw, 5/16-18, .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04379A

Screw, Hex Cap, 7/16-20 x 3.50 GR5

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 736-0277

Washer, Flat, 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 717-1774B

Clutch, PTO
(Superseded to 917-05001)

$630.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-04065

Nut, Hex. Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0171

Washer, Lock, 7/16, Regular Duty

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

10

Cub Cadet 748-0415B

Spacer, 3/8 x 1.54

$7.49

$

In Stock, Qty 10

0

11

Cub Cadet 736-0277

Washer, Flat, 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 20+

0

12

Variations

Cub Cadet 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 783-04419B

Bracket, Clutch
(Superseded to 783-04419B-0637)

Variations

Cub Cadet 783-04419B-0637

Clutch Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, only 4 left!

0

Cub Cadet 783-04419B-4008

Clutch Bracket - WINE RED (4008)

$14.99

$

In Stock, only 4 left!

0

$14.99

$

In Stock, only 4 left!

0
