GT 1554 (14AK13BK709) - Cub Cadet 54" Garden Tractor (2005 - 2007) Command Engine Cylinder Head Parts Diagram

54" Garden Tractor

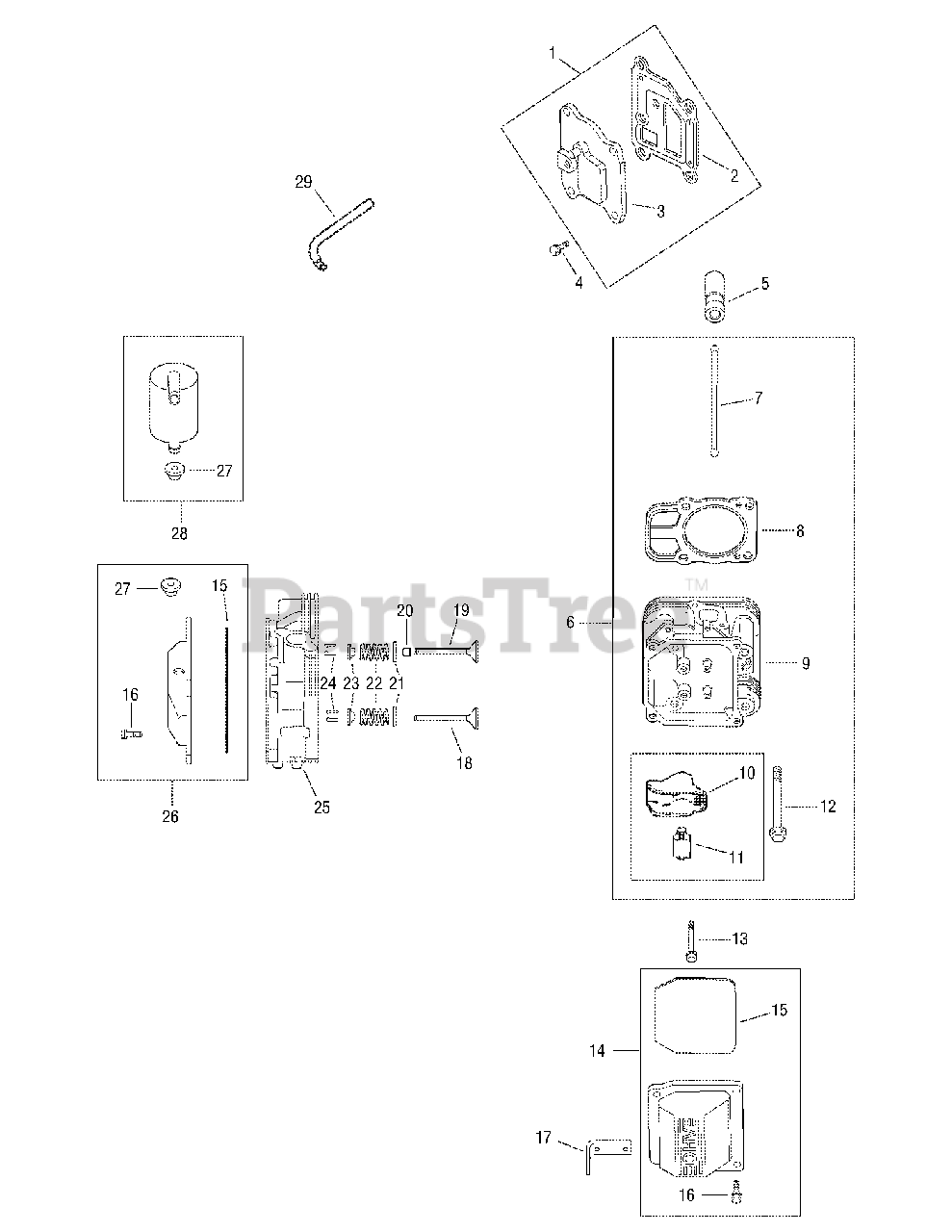

Command Engine Cylinder Head Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Kit, breather cover w/ gasket (Includes 2,3)

$

$

Not available

2

Cub Cadet KH-24-041-51-S

Gasket, breather
(Superseded to KH-24-041-67-S)

$12.99

$

In Stock, Qty 6

0

3

Cub Cadet KH-24-096-87-S

Cover, breather
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-M-645020-S

Screw, hex. flange M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-01

Lifter, valve
(Superseded to KH-25-351-11-S)

$22.99

$

In Stock, Qty 14

0

6

Cub Cadet KH-24-755-66

Kit, valve train (Includes 7,10,11)

$

$

Not available

7

Cub Cadet KH-24-411-05

Rod, push

$

$

Not available

8

Cub Cadet KH-24-841-03-S

Kit, cylinder head gasket (Includes head mounting hardware)
(Superseded to KH-24-841-04-S)

$45.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-318-72-S

Head assembly, #2 cylinder
(Superseded to KH-24-318-116-S)

$

$

Not available

10

Cub Cadet KH-25-186-01

Arm, rocker

$

$

Not available

11

Cub Cadet KH-24-599-01

Pivot, rocker arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 12

0

12

Cub Cadet KH-12-086-16

Screw, hex. flange
(Superseded to KH-62-086-08-S)

$5.49

$

In Stock, Qty 5

0

13

Cub Cadet KH-66-086-07-S

Screw, hex. flange M6 x 1.0 x 34
(Superseded to KH-M-640034-S)

$2.49

$

In Stock, Qty 19

0

14

Cub Cadet KH-24-755-141-S

Kit, valve cover – plain (Includes 15,16)

$35.99

$

In Stock, only 4 left!

0

15

Cub Cadet KH-24-153-28-S

O-Ring
(Superseded to KH-24-153-30-S)

$11.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-M-651030-S

Screw, hex. flange M6 x 1.0 x 30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-24-445-01

Strap, lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

18

Cub Cadet KH-24-016-01

Valve, exhaust (Std.)
(Superseded to KH-32-016-01-S)

$14.99

$

In Stock, Qty 7

0

Cub Cadet KH-24-016-02

Valve, exhaust (.25)

$

$

Not available

19

Cub Cadet KH-24-017-01

Valve, intake (Std.)

$

$

Not available

Cub Cadet KH-24-017-02

Valve, intake (.25)

$

$

Not available

20

Cub Cadet KH-66-032-05-S

Seal, valve stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

21

Cub Cadet KH-235011-S

Retainer, spring

$6.49

$

In Stock, only 2 left!

0

22

Cub Cadet KH-24-089-02

Spring, valve

$

$

Not available

23

Cub Cadet KH-12-173-01

Cap, valve sprin
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 9

0

24

Cub Cadet KH-12-755-03

Kit, retainer

$5.99

$

In Stock, only 3 left!

0

25

Cub Cadet KH-24-318-69-S

Head assembly, #1 cylinder
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

26

Cub Cadet KH-24-755-142-S

Kit, valve cover – breather (Includes

$38.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-25-313-03-S

Grommet, rubber

$10.99

$

In Stock, only 2 left!

0

28

Cub Cadet KH-24-755-57-S

Kit, breather separator (Includes 27)
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

29

Cub Cadet KH-24-326-74-S

Hose, breather
(Superseded to KH-24-326-93-S)

$13.99

$

In Stock, only 1 left!

0
