GT 1554 (14AK13BK010) - Cub Cadet 54" Garden Tractor (2007 & After) Steering Parts Diagram

54" Garden Tractor

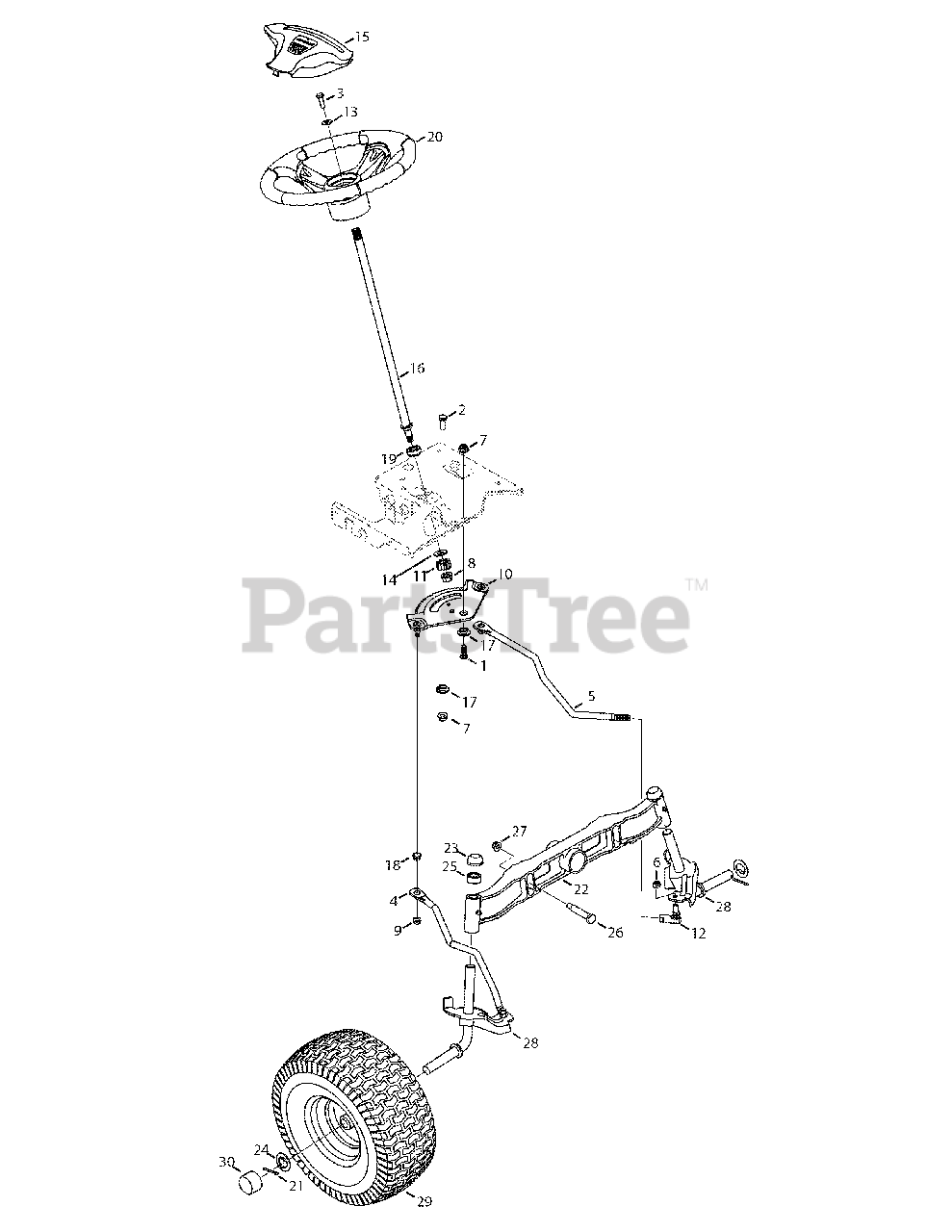

Steering Parts Diagram

  • Title

1

Cub Cadet 710-04095

Hex Cap Screw, 3/8-16, 1.00

$5.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0650

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 711-1408

Link, Drag, RH

$

$

Not available

5

Cub Cadet 711-1409A

Link, Drag, LH

$

$

Not available

6

Cub Cadet 712-0214

Nut, Hex, 3/8-24, Gr5

$6.49

$

In Stock, only 3 left!

0

7

Cub Cadet 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0459

Nut, Flange Lock, 7/16-20

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3004A

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

11

Cub Cadet 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0

14

Cub Cadet 736-3084

Washer, Flat, .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-04532A

Cover, Steering Wheel
(Superseded to 731-04532B)

$24.99

$

In Stock, Qty 12

0

16

Cub Cadet 738-04262

Shaft, Steering, .625 OD x 25.00 Lg

$66.99

$

In Stock, only 2 left!

0

17

Cub Cadet 738-04154

Spacer, Shoulder, 1.00 x .38 x .38

$5.49

$

In Stock, Qty 17

0

18

Cub Cadet 741-0475

Bushing, Plastic, .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 741-04237

Bearing, Hex Flange, 5/8
(Superseded to 741-04237B)

$6.99

$

In Stock, Qty 18

0

20

Cub Cadet 631-04008A

Wheel, Steering, Three Spoke
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

21

Cub Cadet 714-0162

Pin, Cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 719-04177A

Axle, Pivot Bar, Cast
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

22

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive Type
(Superseded to 937-3000)

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 737-0475

Fitting, Lube, M6 Threaded Type

Note: Not Shown

$11.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 726-0341

Push Cap, .75

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 736-04228A

Washer, Flat, .781 x 1.590
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

25

Cub Cadet 748-04068

Spacer, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 738-1011A

Screw, Shoulder, .500 x 2.23, 3/8-16

$8.49

$

In Stock, Qty 11

0

27

Cub Cadet 712-04065

Nut, Jam, 3/8-16, Grf.

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 638-04003A

Axle Ass’y, LH .750 Dia.
(Superseded to 638-04003AP)

$

$

Not available

28

Cub Cadet 638-04004A

Axle Ass’y, RH .750 Dia.
(Superseded to 938-04004A)

$71.99

$

In Stock, only 2 left!

0

29

Cub Cadet N/A

Wheel Assembly

Note: (See Wheel Assembly for breakdown)

$

$

Currently unavailable

30

Cub Cadet 731-05674

Hub Cap

$5.49

$

In Stock, Qty 20+

0
