GT 1222 (14AB13CH710) - Cub Cadet 46" Garden Tractor Tractor Body / Fuel Tank / Hood Parts Diagram

46" Garden Tractor

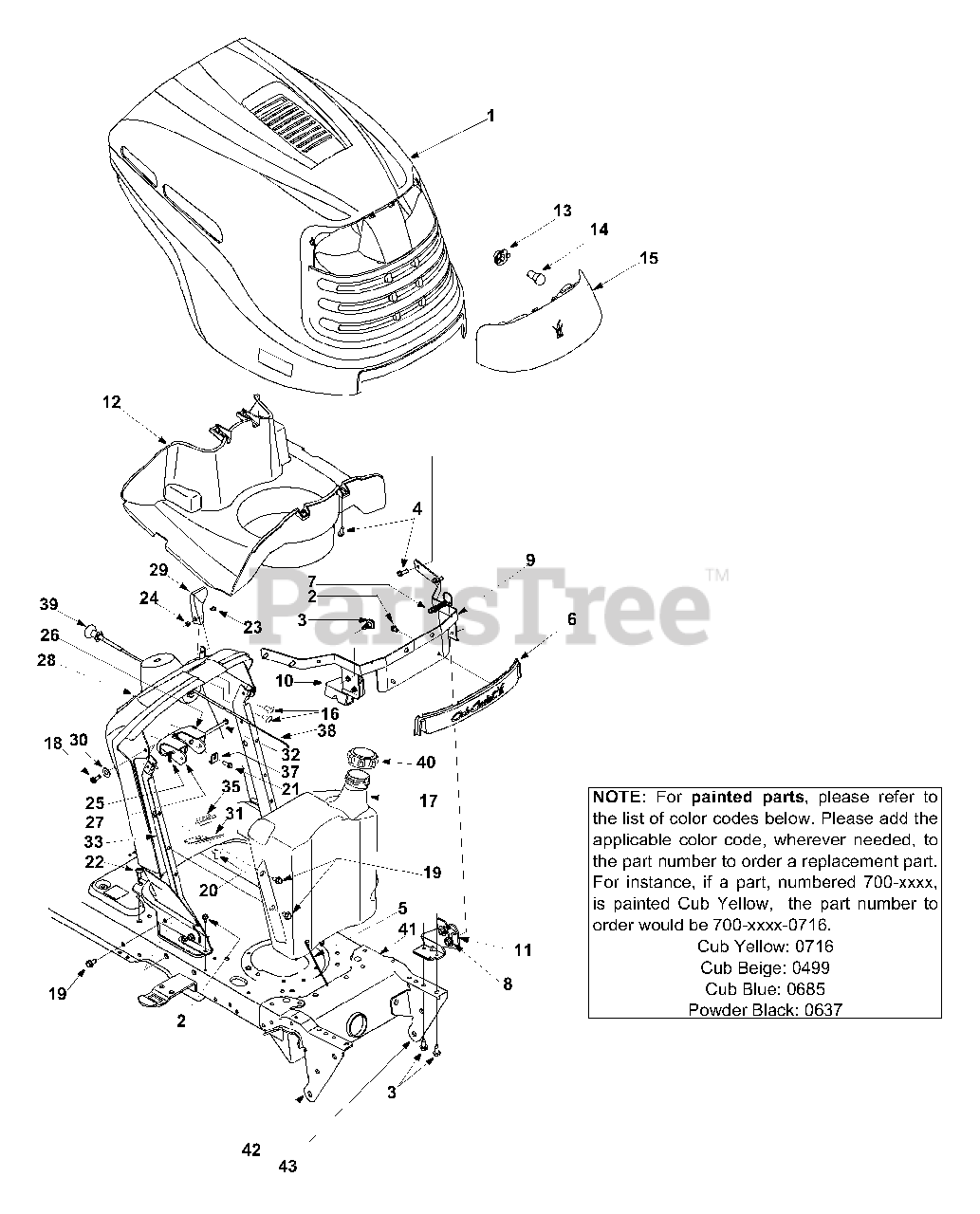

Tractor Body / Fuel Tank / Hood Parts Diagram

  • Title

1

Cub Cadet 731-04567

Hood
(Superseded to 931-04567A)

$344.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0895

Hi-Lo Screw 1/4-15 x 0.75

$6.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 731-04687

Cover: Front Hood
(Superseded to 931-04687A)

$

$

Not available

7

Cub Cadet 732-04189

Extension Spring
(Superseded to 732-04189B)

$17.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 738-04091

Shoulder Screw 5/16-18
(Superseded to 738-04091A)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 783-04428

Pivot Bracket

Variations

Cub Cadet 783-04428-0637

HOOD PIVOT BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-04428-0716

Hood Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

$

$

10

Cub Cadet 783-04464

Pivot Bracket RH: Hood
(Superseded to 783-04464B-0716)

Variations

Cub Cadet 783-04464-0716

Hood Pivot Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

11

Cub Cadet 783-04465

Pivot Bracket LH: Hood
(Superseded to 783-04465A-0716)

Variations

Cub Cadet 783-04465-0716

Hood Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

12

Cub Cadet 731-04679

Plenum: Hood
(Superseded to 731-04679A)

$63.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-0963

Lamp 12 V
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

15

Cub Cadet 731-04577

Headlight Lens
(Superseded to 931-04577A)

$46.99

$

In Stock, Qty 8

0

16

Cub Cadet 710-0192

Mach. Screw

$3.99

$

In Stock, Qty 12

0

17

Cub Cadet 751-0658E

Fuel Tank: 3 Gallon

$115.99

$

In Stock, only 3 left!

0

18

Cub Cadet 710-0642

TT Screw 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0837

Oval C-Sunk AB Screw

$4.49

$

In Stock, Qty 5

0

21

Cub Cadet 710-0895

Hi-Lo Screw 1/4-15 x 0.75

$6.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 710-1611B

TT Screw 5/16-18 x 0.75

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 710-3217

Mach. Screw

$6.99

$

In Stock, Qty 7

0

24

Cub Cadet 712-0142

Hex Nut

$4.49

$

In Stock, Qty 10

0

25

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 731-04293A

Brake Lever: Dash
(Superseded to 731-04293B)

$30.99

$

In Stock, only 1 left!

0

27

Cub Cadet 731-04294A

Cruise Lever: Dash

$17.99

$

In Stock, only 1 left!

0

28

Cub Cadet 731-04668

Dash
(Superseded to 931-04668)

$

$

Not available

29

Cub Cadet 731-3161

Throttle Control Knob
(Superseded to 931-3161A)

$19.99

$

In Stock, only 1 left!

0

30

Cub Cadet 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 741-0587

Steering Column

$4.49

$

In Stock, Qty 10

0

32

Cub Cadet 747-1323A

Rod

$11.99

$

In Stock, only 3 left!

0

33

Cub Cadet 783-04285

Support Plate RH
(Superseded to 783-04285F-0637)

Variations

Cub Cadet 783-04285-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 783-04323

Support Plate LH
(Superseded to 783-04323F-0637)

Variations

Cub Cadet 783-04323-0637

USE 783-04323F-0637 SUPPORT-D - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 783-04510

Support Bracket
(Superseded to 783-04510-0637)

Variations

Cub Cadet 783-04510-0637

BRACKET-STEERING SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

36

Cub Cadet 783-0462

PTO Bracket

$

$

Not available

37

Cub Cadet 783-1499

Rod Bracket
(Superseded to 783-1499-0637)

Variations

Cub Cadet 783-1499-0637

Lever Rod Retainer - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 746-1086

Throttle Cable 39" LG
(Superseded to 946-1086)

Note: MFG Date 030104 & prior

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 746-04066

Throttle Cable 34" LG
(Superseded to 946-04066)

Note: MFG Date 030104 & after

$34.99

$

In Stock, only 2 left!

0

39

Cub Cadet 746-04120

Choke Control
(Superseded to 746P04120)

$34.99

$

In Stock, only 3 left!

0

40

Cub Cadet 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 1 left!

0

41

Cub Cadet 783-0728

Bracket: Pivot Bar
(Superseded to 783-0728B)

Variations

Cub Cadet 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0728-0691

Pivot Bar Bracket - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0728-4008

Pivot Bar Bracket - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0728-0650

USE 783-0728B-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0728-0665

USE 783-0728B-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 783-0726B

Bracket: Pivot Support RH
(Superseded to 783-0726E)

Variations

Cub Cadet 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726B-0637

USE 783-0726E-0637 BRACKET:PI - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726B-0650

USE 783-0726E-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0726B-0665

USE 783-0726E-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726B-0691

USE 783-0726E-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

43

Cub Cadet 783-0727A

Bracket: Pivot Support LH
(Superseded to 783-0727B)

Variations

Cub Cadet 783-0727A-0606

USE 783-0727D-0606 BRACKET:PI - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0727A-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727A-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727A-0650

USE 783-0727D-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727A-0665

USE 783-0727D-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727A-0691

USE 783-0727D-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727A-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0
