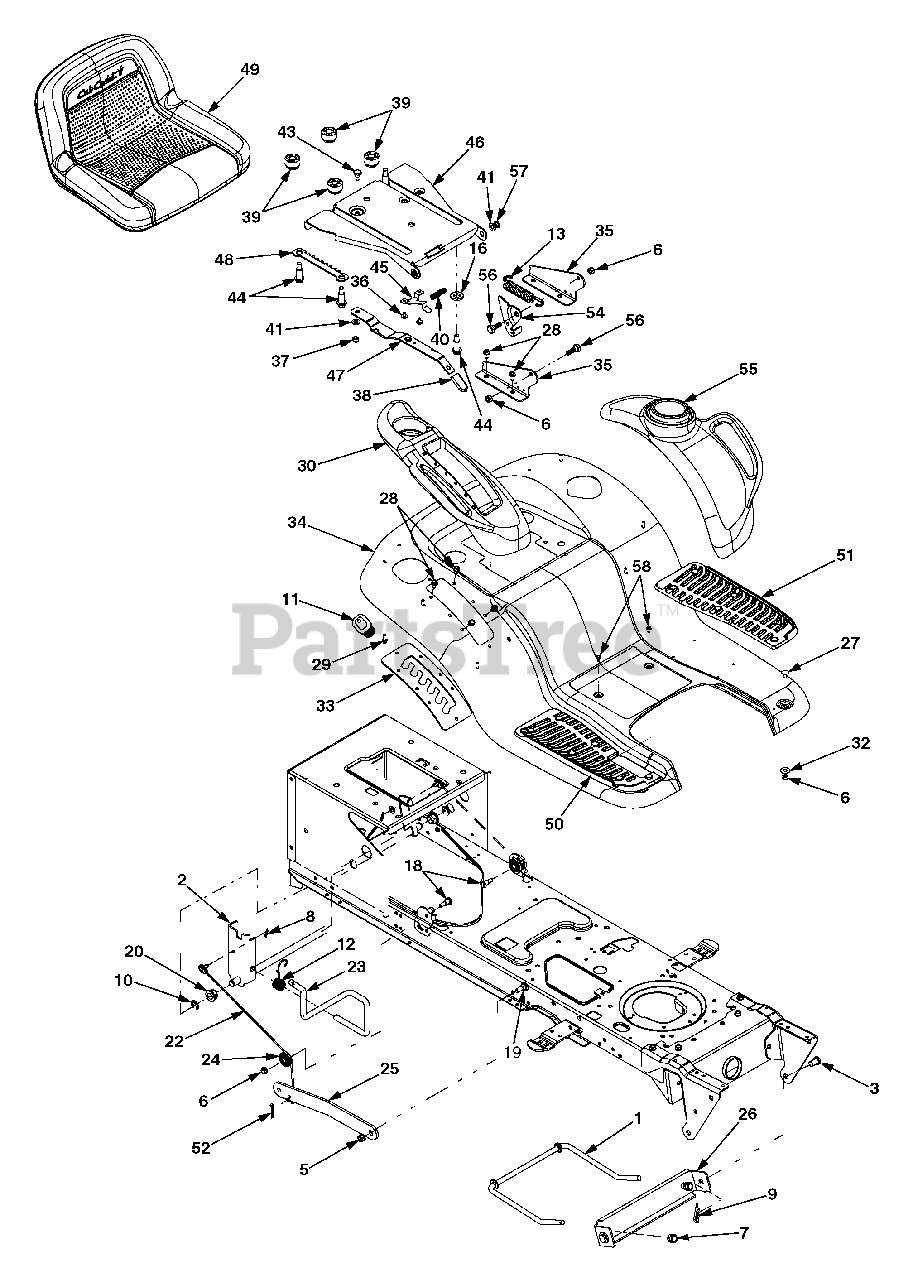

46" Garden Tractor

Fender, Seat & Deck Lift Parts Diagram

  • Title

1

Cub Cadet 747-1130B

Deck Stabilizer Rod

$41.99

$

In Stock, only 3 left!

0

2

Cub Cadet 753-06260

Lift Shaft Assembly

Note: Replaces 683-04079

$57.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 12

0

5

Cub Cadet 712-0130

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

6

Cub Cadet 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 714-04023

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 716-0106A

E-Ring

$5.49

$

In Stock, only 2 left!

0

11

Cub Cadet 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

12

Cub Cadet 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 732-1184

Extension Spring, .84 x 4.6

$11.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-3019

Flat Washer, .31 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

18

Cub Cadet 738-0138A

Hex Cap Screw, 5/16-18 x .62

$6.99

$

In Stock, only 2 left!

0

19

Cub Cadet 738-0380

Shoulder Screw, 3/8-16

$7.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

Cub Cadet 747-04155

Lift Handle

$

$

Not available

24

Cub Cadet 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

25

Cub Cadet 783-0678A

Arm Lift
(Superseded to 783-0678C)

Variations

Cub Cadet 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0678A-4008

USE 783-0678C-4008 LINK-LIFT - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

Cub Cadet 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Cub Cadet 783-0720A-4008

USE 783-0720C-4008 BRACKET-AD - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0260A

Carriage Bolt, 5/16 x .62

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0726

AB Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 9

0

30

Cub Cadet 731-2616A

Fender Cover RH
(Superseded to 931-2616A)

$

$

Not available

32

Cub Cadet 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 783-0677

Lift Adjustment Bracket
(Superseded to 783-0677B-0637)

Variations

Cub Cadet 783-0677-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 783-04477

Fender
(Superseded to 783-04477A)

Variations

Cub Cadet 783-04477-0716

FENDER:R STYLE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

35

Cub Cadet 783-1489

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

Cub Cadet 783-1489-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 720-0433

Seat Adjuster Grip

$10.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 731-04074

Spacer

$7.49

$

In Stock, Qty 20+

0

40

Cub Cadet 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

41

Cub Cadet 736-0275

Spring Washer, .265 x .562 x .025

$6.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .03

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 738-0137A

Shoulder Screw, .340 x .285,1/4-20

$10.99

$

In Stock, Qty 10

0

44

Cub Cadet 738-0966

Shoulder Screw, .50 x .50, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

45

Cub Cadet 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

46

Cub Cadet 783-0738B

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

Cub Cadet 783-0738B-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0738B-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0738B-0650

USE 783-0738D-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0738B-0665

USE 783-0738D-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0738B-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

47

Cub Cadet 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

Cub Cadet 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

49

Cub Cadet 757-04004

Medium Back Seat
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

50

Cub Cadet 735-0698A

RH Foot Pad
(Superseded to 735-0698B)

$

$

Not available

51

Cub Cadet 735-0697

LH Foot Pad

$

$

Not available

51

Cub Cadet 726-3046

Foot Pad Clips

$3.99

$

In Stock, only 4 left!

0

52

Cub Cadet 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

54

Cub Cadet 783-0209C

Seat Lift Bracket
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

55

Cub Cadet 631-04102

Fender Cover LH
(Superseded to 931-04102)

$

$

Not available

56

Cub Cadet 738-0296

Shoulder Screw, .437 x .268; 5/16-18

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 726-0201

Speed Nut, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0
