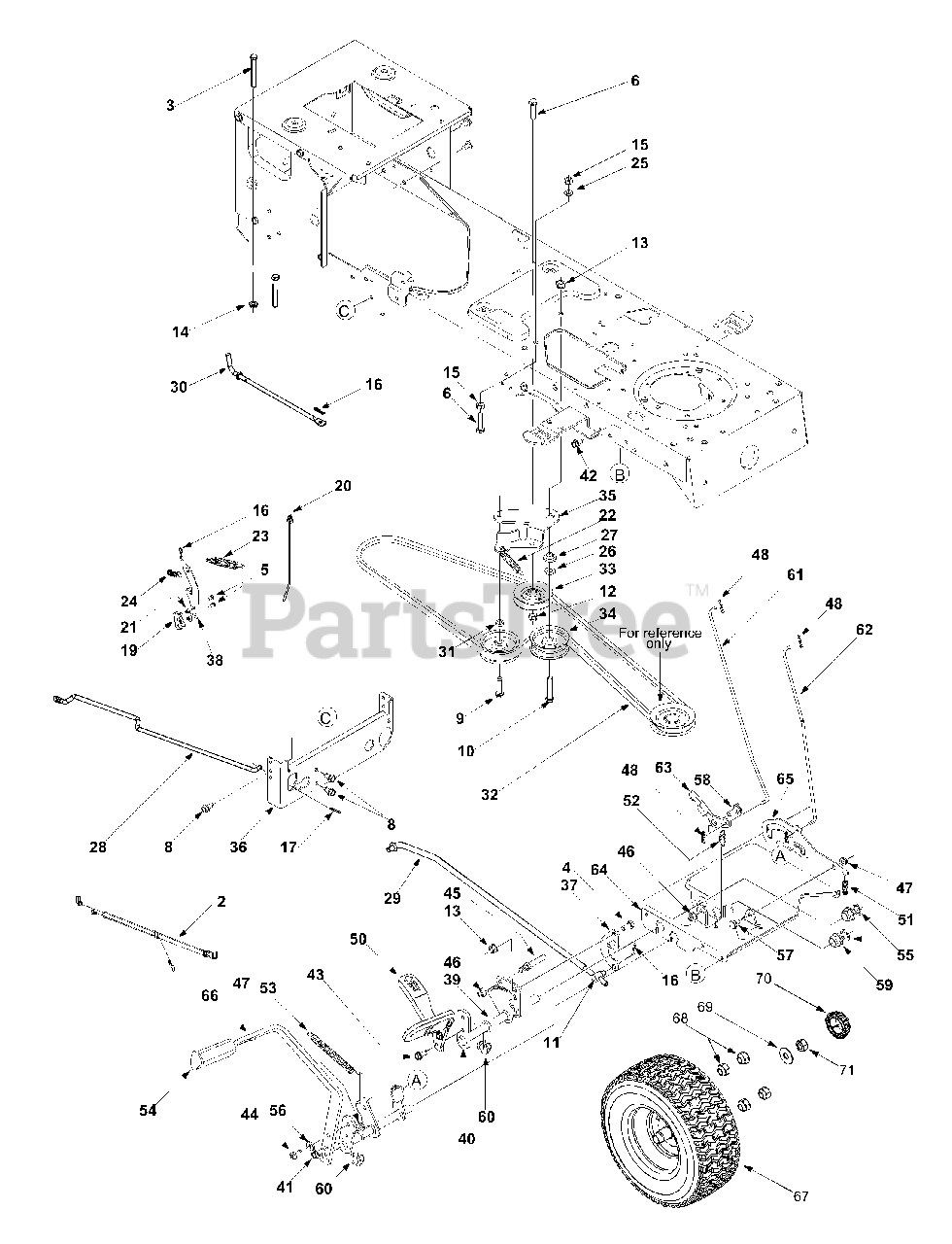

GT 1222 (14AB13CH710) - Cub Cadet 46" Garden Tractor Drive & Rear Wheel Parts Diagram

46" Garden Tractor

Drive & Rear Wheel Parts Diagram

  • Title

1

Cub Cadet 618-0379

Hydrostatic Transmission
(Superseded to 753-05398)

Note: (not shown)

$

$

Not available

2

Cub Cadet 629-0949A

Harness Assembly
(Superseded to 629-0949B)

$43.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0176

Hex Bolt 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0216

Hex Bolt 3/8-16 x 0.75

$4.49

$

In Stock, Qty 12

0

5

Cub Cadet 710-0227

AB Screw

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0344

Hex Bolt 3/8-16 x 1.5

$5.99

$

In Stock, Qty 11

0

7

Cub Cadet 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1007

TT Sems Screw 3/8-16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3011

Hex Bolt 3/8-16 x 2.25

$6.99

$

In Stock, Qty 19

0

11

Cub Cadet 711-0832

Ferrule
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

12

Cub Cadet 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

13

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3004A

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0111

Hairpin Clip

$4.99

$

In Stock, Qty 13

0

18

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 725-1644

Switch: Spring

$9.99

$

In Stock, Qty 11

0

20

Cub Cadet 726-0154

Cable Tie
(Superseded to 926-0154)

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 726-0320

Plate: Insulator Nut
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

22

Cub Cadet 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

23

Cub Cadet 732-0716

Extension Spring
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

24

Cub Cadet 732-3118

Extension Spring

$10.99

$

In Stock, only 1 left!

0

25

Cub Cadet 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-3010

Flat Washer

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 18

0

28

Cub Cadet 747-04140

Brake Rod

$

$

Not available

29

Cub Cadet 747-1119

Control Rod

$

$

Not available

30

Cub Cadet 747-1121

Disengagement Rod: Hydro
(Superseded to 747-1121A)

$

$

Not available

31

Cub Cadet 750-0535

Spacer
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 754-0349

V Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

33

Cub Cadet 756-0116

Idler Pulley
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

34

Cub Cadet 756-0981A

Flat Idler Pulley
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

35

Cub Cadet 783-04442

Idler Bracket: Center Double

Variations

Cub Cadet 783-04442-0637

Double Idler Bracket Assembly - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04442-4008

Double Idler Bracket Assembly - WINE RED (4008)

$

$

Not available

$35.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 783-0667B

Transmission Bracket

Variations

Cub Cadet 783-0667B-0637

Trans Torque Bracket - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0667B-4008

BRACKET-TRANS TORQUE - WINE RED (4008)

$

$

Not available

$40.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 783-0745

Speed Control Bracket
(Superseded to 783-0745-0637)

Variations

Cub Cadet 783-0745-0637

BRACKET-CONTROL SP - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 783-0782

Actuator Bracket
(Superseded to 783-0782-0637)

Variations

Cub Cadet 783-0782-0637

Actuator Bracket, S - POWDER BLACK (0637)

$

$

Not available

$

$

39

Cub Cadet 647-0031B

Brake Control Assembly
(Superseded to 753-05606)

Variations

Cub Cadet 647-0031B-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 647-0049A

Hydro control Assembly
(Superseded to 647-0049A-0637)

Variations

Cub Cadet 647-0049A-0637

Hydro Control Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

41

Cub Cadet 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 710-0726

AB Screw 5/16-12 0.75

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 710-1260A

LD Screw 5/16-18 x 0.75

$3.99

$

In Stock, Qty 20+

0

44

Cub Cadet 710-1611B

TT Screw 5/16-18 x 0.75

$6.99

$

In Stock, only 2 left!

0

45

Cub Cadet 711-04159

Pin
(Superseded to 753-04872)

$

$

Not available

46

Cub Cadet 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

47

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

48

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 714-0111

Hairpin Clip

$4.99

$

In Stock, Qty 13

0

50

Cub Cadet 719-0584A

Control Pedal: Hydro
(Superseded to 719-0584B-0637)

$60.99

$

In Stock, only 1 left!

0

51

Cub Cadet 732-0335

Compression Spring

$

$

Not available

52

Cub Cadet 732-0955

Extension Spring

$9.99

$

In Stock, only 1 left!

0

53

Cub Cadet 732-0963

Extension Spring

$9.99

$

In Stock, only 4 left!

0

54

Cub Cadet 735-3049

Brake Pedal
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

55

Cub Cadet 736-0187

Flat Washer

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 736-3008

Flat Washer
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 738-0155

Shoulder Screw
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 738-0380

Shoulder Screw

$7.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

60

Cub Cadet 741-3065B

Hex Flange Bearing

$8.49

$

In Stock, Qty 20+

0

61

Cub Cadet 747-04093

Control Rod: Brake Lock
(Superseded to 747-04093A)

$

$

Not available

62

Cub Cadet 747-04096

Control Rod: Cruise

$15.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 748-04039B

Cruise Latch
(Superseded to 748-04039C)

$

$

Not available

64

Cub Cadet 783-0653F

Support Bracket: Steering
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

65

Cub Cadet 783-0663C

Lockout Bracket
(Superseded to 783-0663E)

$17.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 783-0773A

Brake Pedal
(Superseded to 753-05606)

Variations

Cub Cadet 783-0773A-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0773A-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0773A-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0773A-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0773A-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0773A-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0773A-4008

Service Kit - WINE RED (4008)

$

$

Not available

$

$

67

Cub Cadet 634-04133

Wheel Complete 23 x 9.5 x 12

$

$

Currently unavailable

Cub Cadet 634-3178

Rim Assembly
(Superseded to 634-04238)

Variations

Cub Cadet 634-3178-0662

USE 634-04238-0662 RIM ASM:12 - OYSTER GRAY (0662)

$197.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-3178-0674

USE 634-04238-0674 RIM ASM:12 - YARDMAN YELLOW (0674)

$197.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-3178-0688

USE 634-04238-0662 RIM ASM:12 - SPRING GREEN (0688)

$197.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-3178-0499

USE 634-04238-0499 RIM ASM:12 - CUB BEIGE (0499)

$172.99

$

Usually ships in 3-6 days

0

$186.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0255

Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 734-3190

Tire
(Superseded to 734-3190A-0901)

$

$

Not available

68

Cub Cadet 712-3050

Lug Nut 7/16-14

$9.99

$

In Stock, only 1 left!

0

69

Cub Cadet 736-0866

Flat Washer

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 731-3020

Hubcap
(Superseded to 931-3020)

$8.99

$

In Stock, Qty 20+

0

71

Cub Cadet 712-3026

Jam Nut 3/4-16

$4.99

$

In Stock, Qty 7

0
