GT 1222 (14AB13CH710) - Cub Cadet 46" Garden Tractor Battery, Frame & PTO Clutch Parts Diagram

46" Garden Tractor

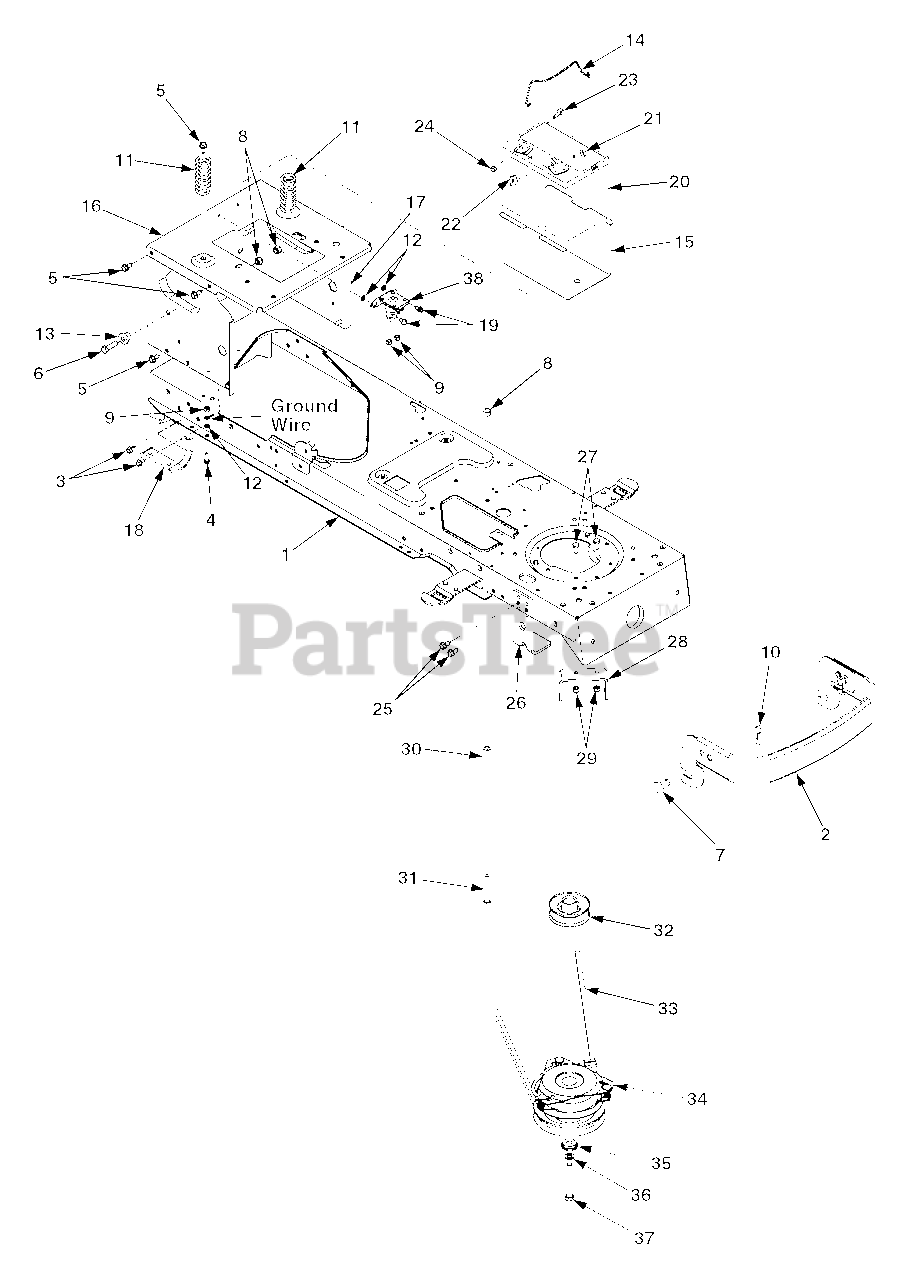

Battery, Frame & PTO Clutch Parts Diagram

  • Title

1

Cub Cadet 683-04099

Lower Frame Assembly

Variations

Cub Cadet 683-04099-0637

LOWER FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-04099-0650

FRAME ASM-LOWER - RED METALLIC (0650)

$

$

Not available

Cub Cadet 683-04099-0691

LOWER FRAME ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 683-04099-0709

LOWER FRAME ASSEMBLY - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 683-04099-0716

FRAME ASM-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$353.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-0612

Bumper

Variations

Cub Cadet 683-0612-0637

Front Bumper - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0612-0716

Front Bumper - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 710-0607

Hex Wash. Hd Tapp 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

4

Cub Cadet 710-0642

TT Screw 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0726

Hex Wash. Hd. Tapp 5/16-12 x 75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

7

Cub Cadet 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

8

Cub Cadet 712-0130

Nylon Lock Nut, 3/8-16 GR8

$3.99

$

In Stock, Qty 11

0

9

Cub Cadet 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

10

Cub Cadet 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 732-04035

Compression Spring

$10.99

$

In Stock, only 4 left!

0

12

Cub Cadet 736-0222

Lock Washer

$5.99

$

In Stock, only 3 left!

0

13

Cub Cadet 738-04058

Shoulder Spacer

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet 747-04121A

Battery Hold-Down Rod

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 783-0349

Battery Tray

Variations

Cub Cadet 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

16

Cub Cadet 783-04329

Seat Bracket: Frame
(Superseded to 783-04329A)

Variations

Cub Cadet 783-04329-0637

USE 783-04329A-0637 BRACKET-F - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-04329-0716

BRACKET-FRAME SEAT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

17

Cub Cadet 783-04376

Upper Frame
(Superseded to 783-04811C)

Variations

Cub Cadet 783-04376-0606

FRAME-UPPER - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-04376-0637

FRAME-UPPER - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-04376-0638

FRAME-UPPER - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-04376-0650

FRAME-UPPER - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-04376-0665

FRAME-UPPER - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-04376-0691

FRAME-UPPER - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-04376-0716

FRAME-UPPER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

18

Cub Cadet 783-0693

Axle Bracket

Variations

Cub Cadet 783-0693-0637

USE 783-0693A-0637 BRACKET-AX - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0693-4008

BRACKET-AXLE - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 725-1707D

Battery
(Superseded to 925-1707D)

$

$

Not available

21

Cub Cadet 738-1132

Shoulder Screw, .25 x .15:1/4-20

$5.49

$

In Stock, only 2 left!

0

22

Cub Cadet 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

24

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0726

Hex Wash. Hd. Tapp 5/16-12 x 75

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 783-04467

Deck Stop Bracket

Variations

Cub Cadet 783-04467-0606

BRACKET-DECK:UP STOP - MAJESTIC ORANGE (0606)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0691

Deck Up-Stop Bracket - BLACK JACK (0691)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04467-0650

BRACKET-DECK:UP STOP - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-04467-0665

BRACKET-DECK:UP STOP - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-04467-0716

BRACKET-DECK:UP STOP - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-04467-4008

BRACKET-DECK:UP STOP - WINE RED (4008)

$

$

Not available

$34.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-3025

Hex Bolt 5/16-18 x 0.625

$3.99

$

In Stock, Qty 8

0

28

Cub Cadet 783-1003

Clutch Bracket
(Superseded to 783-1003-0637)

Variations

Cub Cadet 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 748-0415B

Spacer

$7.49

$

In Stock, Qty 10

0

31

Cub Cadet 710-0859

Hex Bolt 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

32

Cub Cadet 756-0978A

Engine Pulley
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 13

0

33

Cub Cadet 754-04033

V Belt
(Superseded to 954-04033A)

$50.99

$

In Stock, only 3 left!

0

34

Cub Cadet 717-04080

Electric Clutch
(Superseded to 917-04080)

$558.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0785

Shoulder Spacer

$

$

Currently unavailable

36

Cub Cadet 736-0171

Lock Washer

$4.49

$

In Stock, only 4 left!

0

37

Cub Cadet 710-1049

Hex Bolt 7/16-20 x 3.75 GR5

$10.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0
