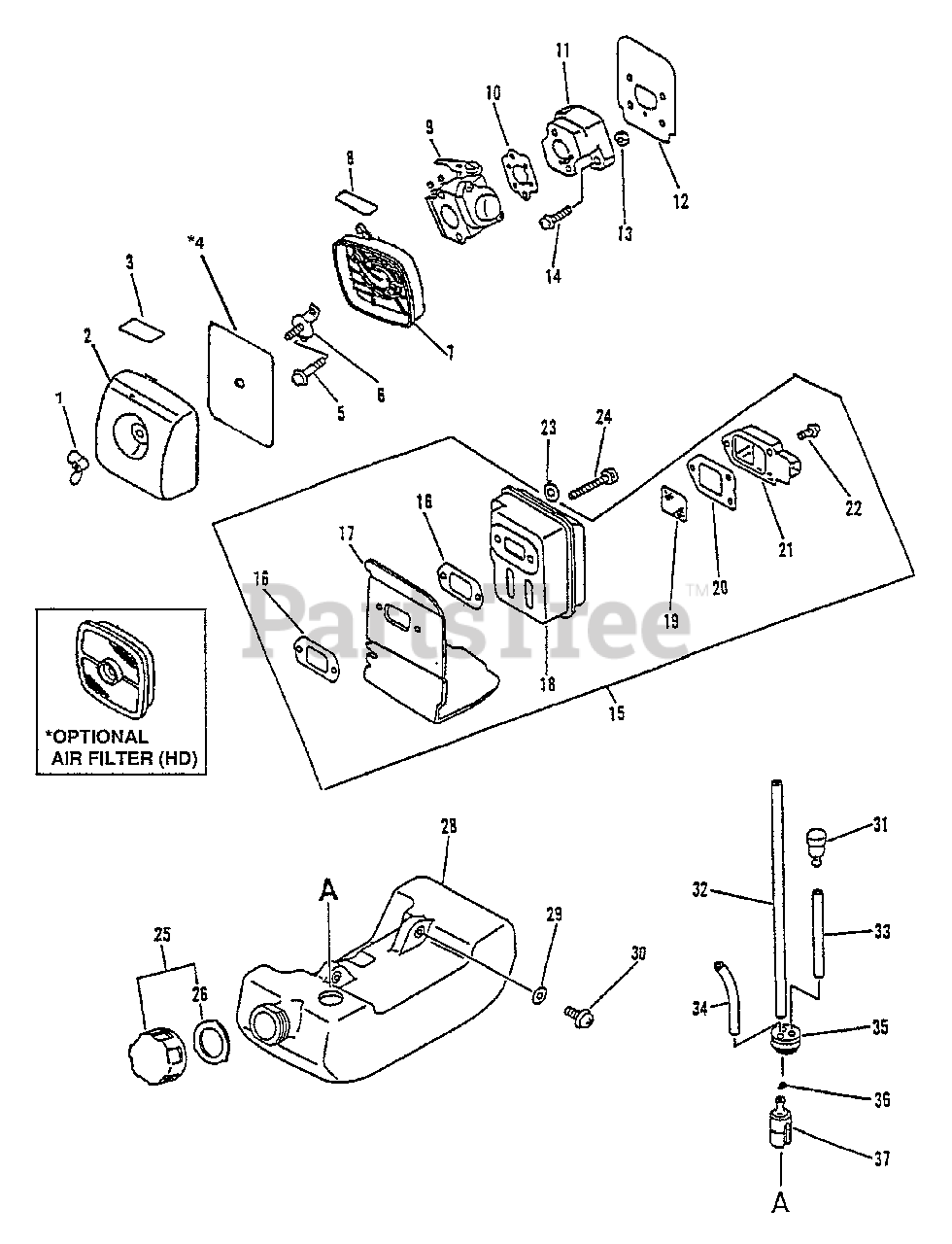

GT-1100 - Echo String Trimmer (SN: 252600 - 999999) Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

2

Echo 13031306560

COVER, AIR FILTER
(Superseded to 13031306561)

$7.99

$

In Stock, Qty 10

0

3

Echo 89018706960

LABEL - TOP

$3.49

$

Usually ships in 2-4 days

0

4

Echo 13031006560

FILTER, AIR

Note: OPTIONAL

$3.99

$

In Stock, Qty 9

0

5

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

6

Echo 12901105060

PLATE, PREVENT

$5.99

$

In Stock, Qty 8

0

7

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$12.99

$

In Stock, Qty 6

0

8

Echo 89012105360

LABEL - CHOKE

$1.99

$

In Stock, Qty 15

0

9

Echo 12520048730

CARBURETOR C1U-K29
(Superseded to 12520048731)

$

$

Not available

10

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

11

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

12

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

15

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes ITEMS 16-22

$46.99

$

In Stock, only 1 left!

0

16

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

17

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$4.99

$

In Stock, Qty 14

0

18

Echo 14580642030

MUFFLER

$46.99

$

In Stock, only 1 left!

0

19

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

20

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

21

Echo 14580942030

GUIDE, EXHAUST - OUTER

$7.49

$

In Stock, only 1 left!

0

22

Echo 90023804010

SCREW - 4X10

$0.99

$

In Stock, Qty 15

0

23

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

24

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 7

0

25

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 26

$4.49

$

In Stock, only 1 left!

0

26

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 18

0

28

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$20.99

$

In Stock, only 1 left!

0

29

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

30

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

31

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 11

0

32

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 14

0

33

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

34

Echo 13201256030

PIPE - 3X6X80 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

35

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 19

0

36

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

37

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0
