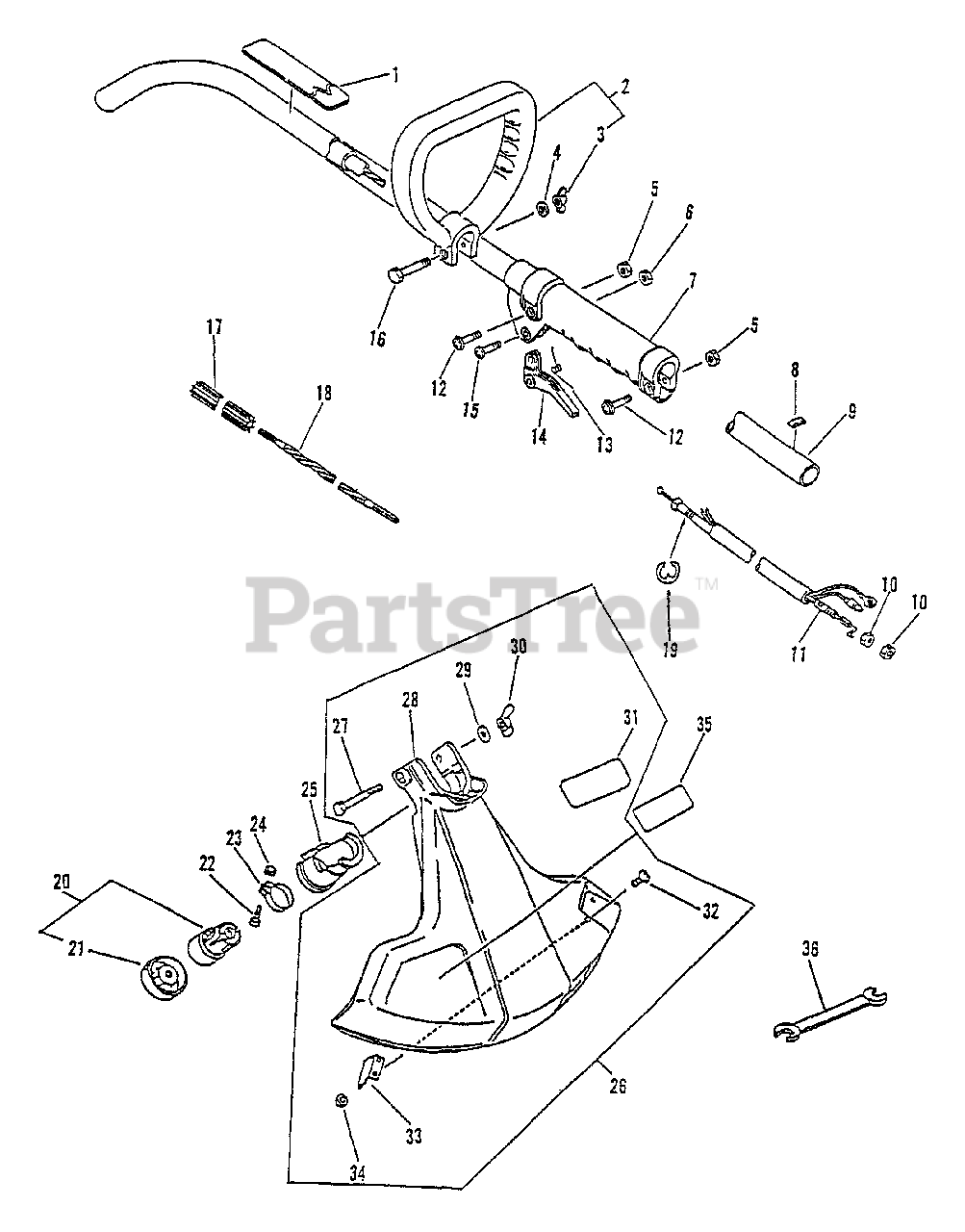

GT-1100 - Echo String Trimmer (SN: 181001 - 252599) Driveshaft, Handles, Throttle, Gear Case, Shield, Tools Parts Diagram

String Trimmer

Driveshaft, Handles, Throttle, Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

2

Echo 35160009630

HANDLE ASSY
(Superseded to Discontinued)

Note: Includes items 3, 4 & 16

$

$

Not available

3

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

4

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

7

Echo 35121344330

GRIP, HANDLE

$13.99

$

In Stock, only 1 left!

0

8

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

9

Echo 61060944330

MAIN PIPE ASSY

Note: Includes ITEM 17

$48.99

$

In Stock, Qty 9

0

10

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 8

0

11

Echo 17800144430

CABLE, THROTTLE

$10.99

$

In Stock, only 1 left!

0

12

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

13

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

14

Echo 17801048731

TRIGGER, THROTTLE
(Superseded to C450000070)

$1.49

$

In Stock, Qty 20+

0

15

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

16

Echo 90010006040

BOLT - 6X40

$0.99

$

In Stock, Qty 9

0

17

Echo 61021744330

LINER - FLEXIBLE
(Superseded to C507000250)

$22.99

$

In Stock, only 1 left!

0

18

Echo 61001306930

DRIVESHAFT - FLEXIBLE

$

$

Currently unavailable

19

Echo 90070000005

RING, RETAINING - 5

$0.99

$

In Stock, Qty 11

0

20

Echo 61040044330

GEAR CASE ASSY
(Superseded to 61040452430)

Note: Includes ITEM 21

$58.99

$

In Stock, only 1 left!

0

21

Echo 61030544330

ADAPTOR, BLADE - UPPER

$26.99

$

Usually ships in 2-4 days

0

22

Echo 90010505010

SCREW - 5X10

$1.49

$

In Stock, Qty 10

0

23

Echo 61044844330

BAND

$7.49

$

Usually ships in 2-4 days

0

24

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 61044944330

BRACKET, BEARING CASE
(Superseded to Discontinued)

$

$

Not available

26

Echo 69900440630

DEBRIS SHIELD KIT
(Superseded to 69900452730)

Note: Includes items 27 - 34

$19.99

$

In Stock, only 1 left!

0

27

Echo 90010006050

BOLT - 6X50

$0.99

$

In Stock, Qty 5

0

28

Echo 69901040631

SHIELD, DEBRIS - PLASTIC
(Superseded to 69901044330)

$10.99

$

Usually ships in 2-4 days

0

29

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

30

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

31

Echo 89016844330

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

32

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

33

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

34

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

35

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 8

0

36

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0
