GT-1100 - Echo String Trimmer (SN: 126001 - 174348) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

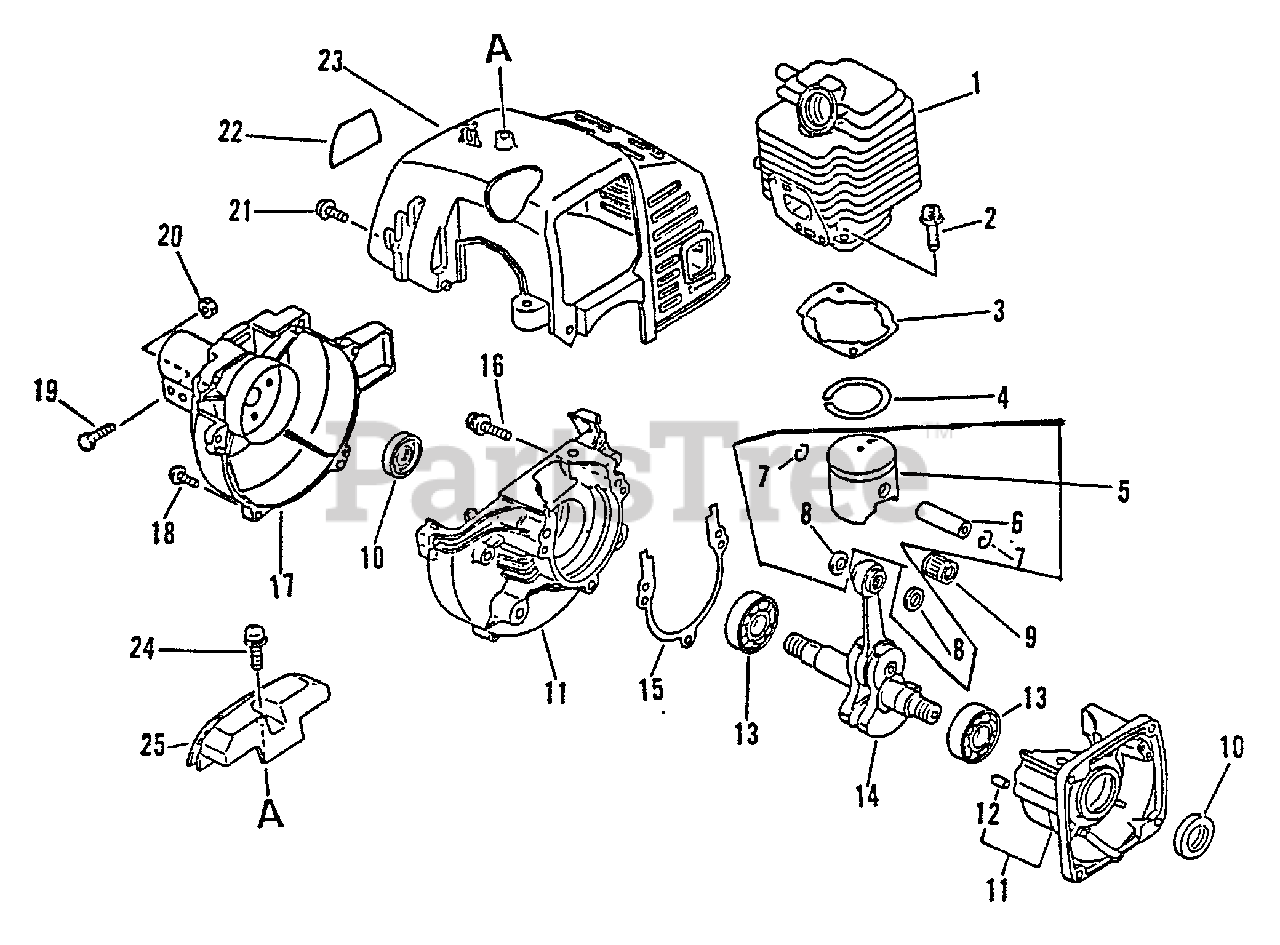

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

1

Echo 10101145230

CYLINDER

$127.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

Note: Use Kit 88900044331

$3.99

$

In Stock, only 4 left!

0

4

Echo 10001144330

RING, PISTON
(Superseded to P021002930)

$

$

Not available

5

Echo 10000044430

PISTON KIT
(Superseded to 10000044330)

Note: Includes items 6, 7, 8

$65.99

$

Usually ships in 2-4 days

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

8

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

9

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$9.99

$

In Stock, only 2 left!

0

10

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

11

Echo 10020442030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes items 10, 12, 13

$131.99

$

Usually ships in 2-4 days

0

12

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

13

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

14

Echo 10010044330

CRANKSHAFT ASSY
(Superseded to 10010044331)

Note: Includes ITEM 9

$283.99

$

Usually ships in 2-4 days

0

15

------------------

GASKET, CRANKCASE

Note: Use Kit 88900044331. Not sold seperately.

$

$

Not available

16

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

17

Echo 10150348730

FAN CASE ASSY
(Superseded to 10150356630)

Note: (Includes Clutch Drum, Bearings & Circlip)

$

$

Not available

18

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0

19

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

20

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 90024604012

SCREW - 4X12

$1.49

$

In Stock, Qty 12

0

22

Echo 89011248730

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

23

Echo 10151448730

COVER, ENGINE - GRAY
(Superseded to 10151448731)

$19.99

$

Usually ships in 2-4 days

0

24

Echo 90025344530

SCREW - 5X16

$

$

Currently unavailable

25

Echo 15991244530

GUARD, TOP - BLACK

$6.99

$

Usually ships in 2-4 days

0

Echo 88900044333

GASKET KIT

$37.99

$

Usually ships in 2-4 days

0

Echo 10101042031

GASKET, CYLINDER
(Superseded to 10101044330)

$3.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

Echo 14563142030

COVER, MUFFLER
(Superseded to A320000250)

$4.99

$

In Stock, Qty 14

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

Echo 13001044431

GASKET, INTAKE

$2.49

$

In Stock, Qty 12

0

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 20+

0

Echo 61041404560

GASKET, GEAR CASE

$1.49

$

In Stock, only 3 left!

0

Echo 88900044331

GASKET KIT
(Superseded to 88900044332)

$37.99

$

Usually ships in 2-4 days

0
