GT-1100 - Echo String Trimmer (SN: 098001 - 126000) Driveshaft, Handles, Throttle Parts Diagram

String Trimmer

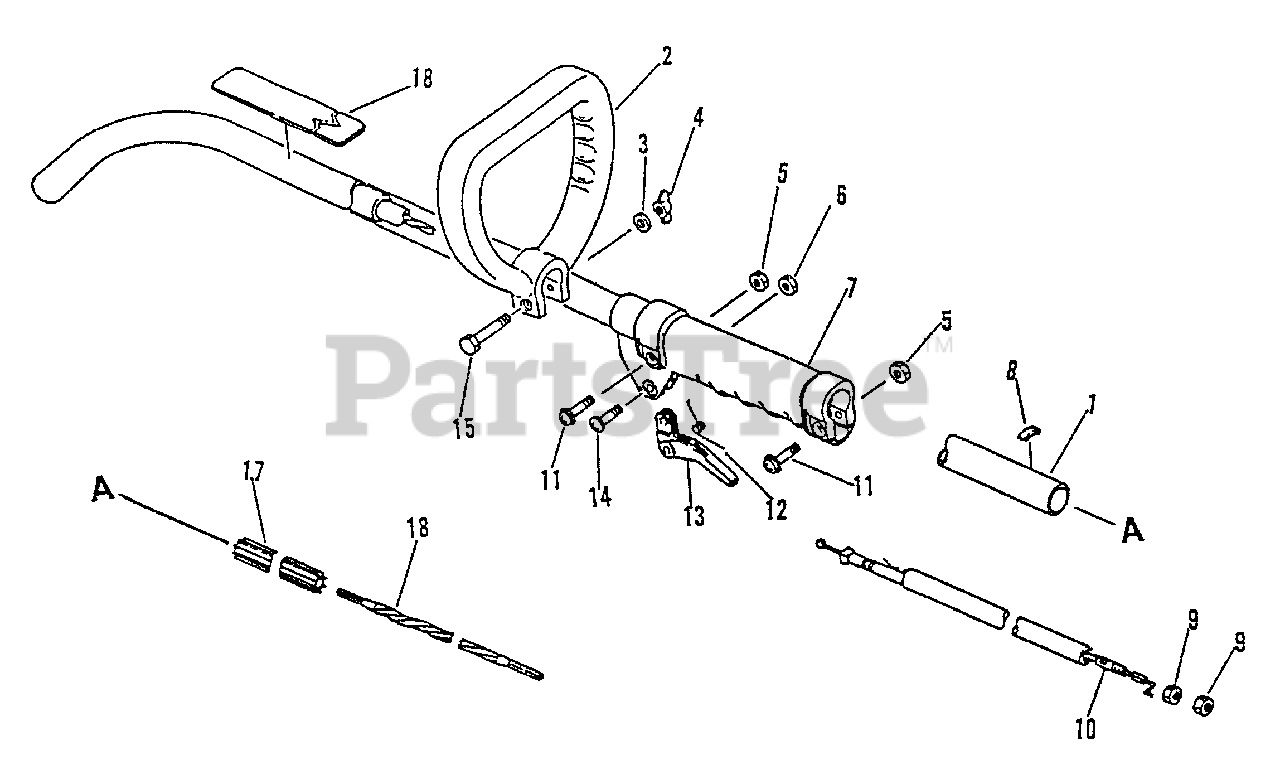

Driveshaft, Handles, Throttle Parts Diagram

  • Title

1

Echo 61060944330

MAIN PIPE ASSY

Note: Includes Items 8, 17 & 18

$48.99

$

In Stock, Qty 9

0

1

Echo 61060944430

MAIN PIPE ASSY
(Superseded to Discontinued)

Note: Includes Items 8, 17 & 18 (Canadian Models)

$

$

Not available

2

Echo 35161009630

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

3

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

4

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

7

Echo 35121344330

GRIP, HANDLE

$13.99

$

In Stock, only 1 left!

0

8

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

9

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

10

Echo 17800145130

CABLE, THROTTLE
(Superseded to 17800144430)

$10.99

$

In Stock, only 1 left!

0

11

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

12

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

13

Echo 17801048730

TRIGGER, THROTTLE
(Superseded to 17801048731)

$1.49

$

In Stock, Qty 20+

0

14

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 6

0

15

Echo 90010006040

BOLT - 6X40

$0.99

$

In Stock, Qty 9

0

16

Echo 61001344330

DRIVESHAFT - FLEXIBLE
(Superseded to 61001309630)

Note: (L 48", 1219.2mm D 1/4", 6mm)

$13.99

$

In Stock, Qty 20+

0

17

Echo 61021744330

LINER - FLEXIBLE
(Superseded to C507000250)

Note: (L 44.5", 1130.3mm D 3/4", 18mm)

$22.99

$

In Stock, only 1 left!

0

18

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

18

Echo 89031744330

LABEL - CAUTION
(Superseded to 89031744430)

Note: CANADA MODEL

$

$

Not available
