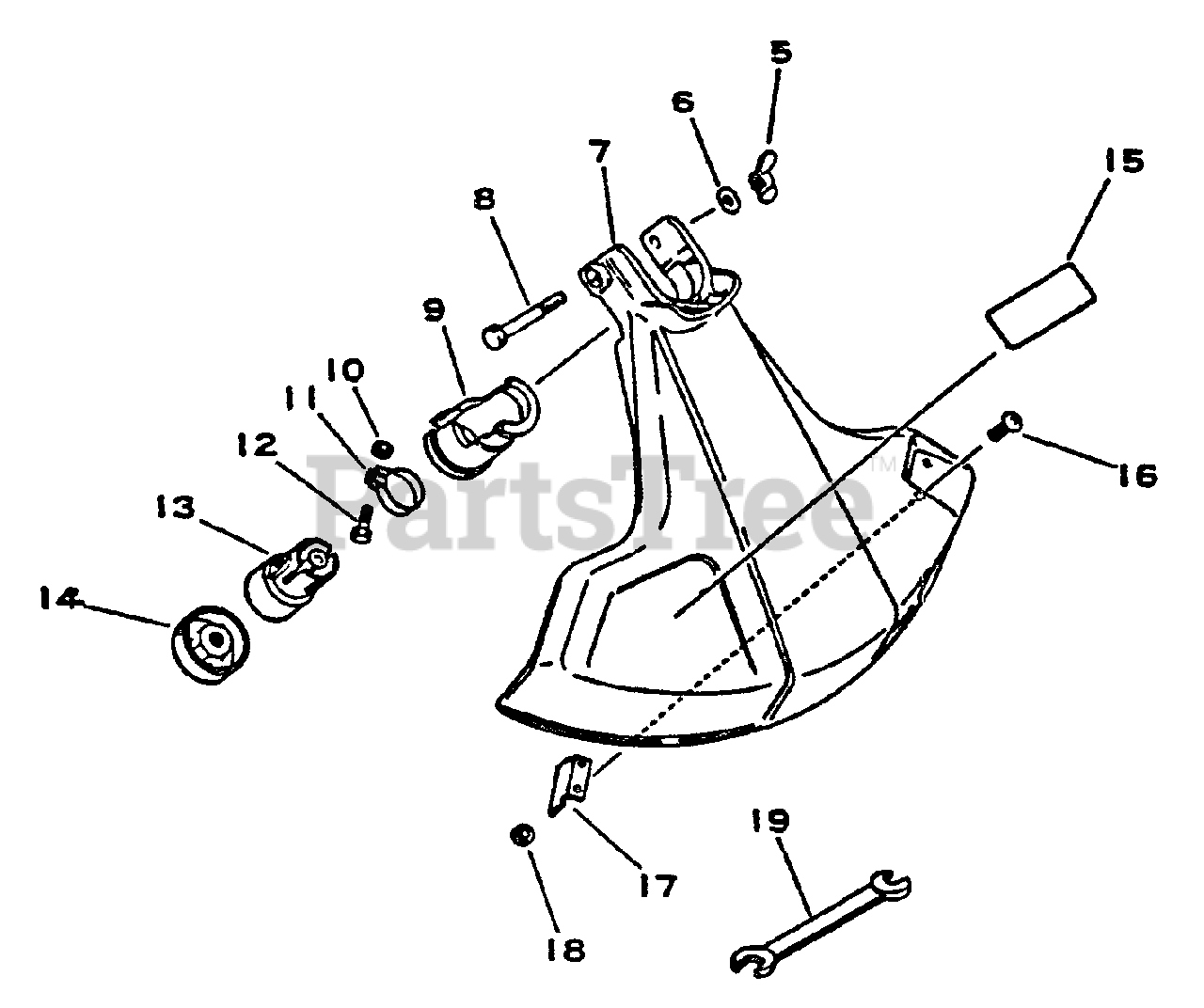

GT-1100 - Echo String Trimmer (SN: 001001 - 077000) Gear Case, Shield, Tool Parts Diagram

String Trimmer

Gear Case, Shield, Tool Parts Diagram

  • Title

7

Echo 69900040630

SHIELD, DEBRIS - PLASTIC
(Superseded to 69900440630)

$19.99

$

In Stock, only 1 left!

0

5

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

6

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

8

Echo 90010006050

BOLT - 6X50

$0.99

$

In Stock, Qty 5

0

16

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

17

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo 61044944330

BRACKET, BEARING CASE
(Superseded to Discontinued)

$

$

Not available

10

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

11

Echo 61044844330

BAND

$7.49

$

Usually ships in 2-4 days

0

12

Echo 90015005010

BOLT

$1.49

$

Usually ships in 2-4 days

0

13

Echo 61040044330

GEAR CASE ASSY
(Superseded to 61040452430)

$58.99

$

Usually ships in 2-4 days

0

14

Echo 61030544330

ADAPTOR, BLADE - UPPER

$26.99

$

Usually ships in 2-4 days

0

15

Echo 89013844330

LABEL - ECHO
(Superseded to 89011848730)

$0.99

$

In Stock, Qty 8

0

19

Echo 89511200339

SPANNER - 5X10mm

$

$

Currently unavailable
