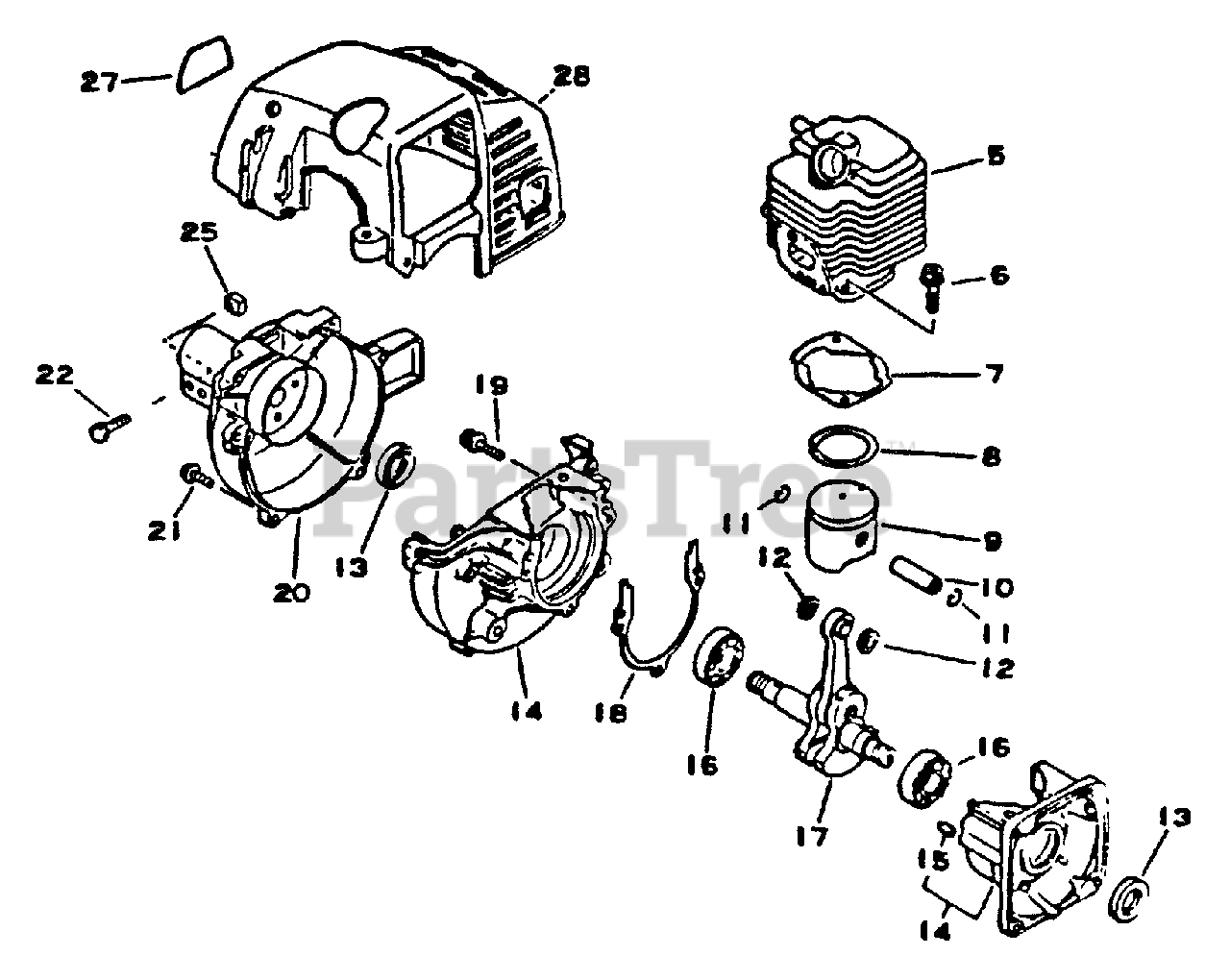

GT-1100 - Echo String Trimmer (SN: 001001 - 077000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

String Trimmer

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title

5

Echo 10101144730

CYLINDER
(Superseded to 10101145230)

$127.99

$

Usually ships in 2-4 days

0

6

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

7

------------------

GASKET, CYLINDER

Note: Use Gasket Kit P/N 88900044330

$

$

Not available

8

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

9

Echo 10001044330

PISTON
(Superseded to 10000044330)

$65.99

$

Usually ships in 2-4 days

0

10

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

12

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

14

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

$131.99

$

Usually ships in 2-4 days

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

Echo 90051030201

BEARING, BALL - 6201

$

$

Currently unavailable

17

Echo 10010044330

CRANKSHAFT ASSY
(Superseded to 10010044331)

$283.99

$

Usually ships in 2-4 days

0

18

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit P/N 88900044330

$

$

Not available

19

Echo 90023805028

SCREW - 5X28

$0.99

$

Usually ships in 2-4 days

0

20

Echo 10150344330

FAN CASE ASSY

$55.99

$

Usually ships in 2-4 days

0

21

Echo 90023805018

SCREW - 5X18

$0.99

$

In Stock, Qty 20+

0

22

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, only 4 left!

0

25

Echo 90056500005

NUT - 5 -- SQUARE
(Superseded to 90056550005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 89011244330

LABEL - ECHO
(Superseded to 89011248730)

$

$

Not available

28

Echo 10151444330

COVER, ENGINE

$24.99

$

Usually ships in 2-4 days

0

Echo 88900044330

GASKET KIT
(Superseded to 88900044332)

$37.99

$

Usually ships in 2-4 days

0
