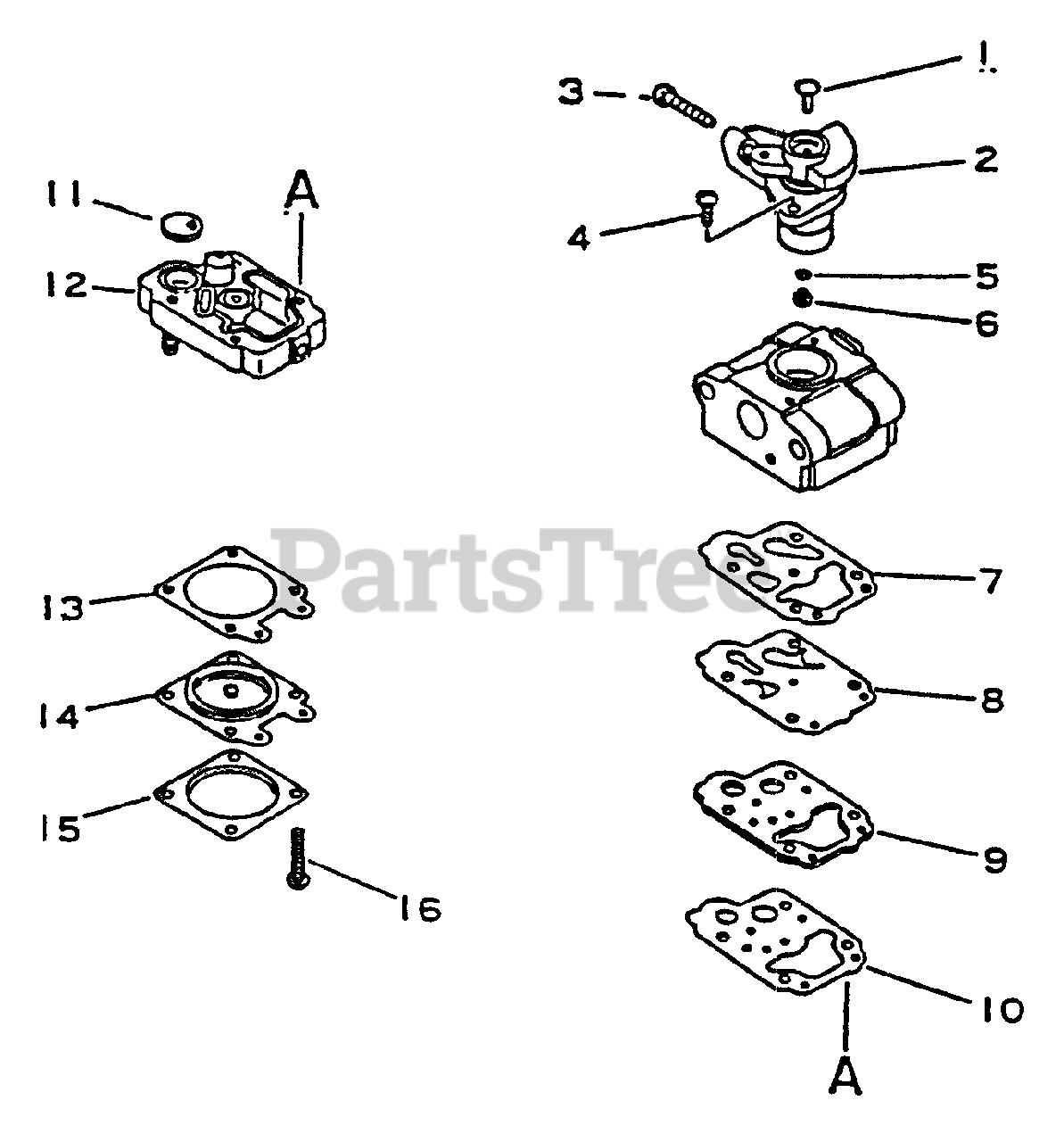

GT-1100 - Echo String Trimmer (SN: 001001 - 077000) Carburetor S/N: 001001 - 051000 Parts Diagram

String Trimmer

Carburetor S/N: 001001 - 051000 Parts Diagram

  • Title

Echo 12300044430

CARBURETOR WYL-1
(Superseded to Discontinued)

$

$

Not available

1

Echo 12314644330

PLUG, WELCH

$0.99

$

In Stock, only 1 left!

0

2

Echo 12311644330

VALVE, THROTTLE

$19.99

$

Usually ships in 2-4 days

0

3

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

$0.99

$

Usually ships in 2-4 days

0

5

------------------

O-RING

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit, P/N 12310144430

$

$

Not available

6

------------------

JET

Note: Included in Carburetor Repair Kit, P/N 12310044430

$

$

Not available

7

------------------

GASKET, PURGE

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit, P/N 12310144430

$

$

Not available

8

------------------

DIAPHRAGM, PURGE

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit, P/N 12310144430

$

$

Not available

9

Echo 12316040630

PLATE, PUMP

$3.99

$

Usually ships in 2-4 days

0

10

------------------

GASKET, PLATE

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit, P/N 12310144430

$

$

Not available

11

------------------

STRAINER

Note: Included in Carburetor Repair Kit, P/N 12310044430

$

$

Not available

12

------------------

BASE, PURGE

Note: Included in Carburetor Repair Kit, P/N 12310044430

$

$

Not available

13

------------------

GASKET, METERING

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit, P/N 12310144430

$

$

Not available

14

------------------

DIAPHRAGM, METERING

Note: Included in Carburetor Repair Kit, P/N 12310044430 & Carburetor Diaphragm/Gasket Kit, P/N 12310144430

$

$

Not available

15

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

16

$1.99

$

Usually ships in 2-4 days

0

Echo 12310044430

REPAIR KIT

$27.99

$

Usually ships in 2-4 days

0

Echo 12310144430

DIAPHRAGM/GASKET KIT

$11.99

$

Usually ships in 2-4 days

0
