GT-1100 B - Echo String Trimmer (SN: 174349 - 181000) Gear Case, Shield, Tool, Accessories Parts Diagram

String Trimmer

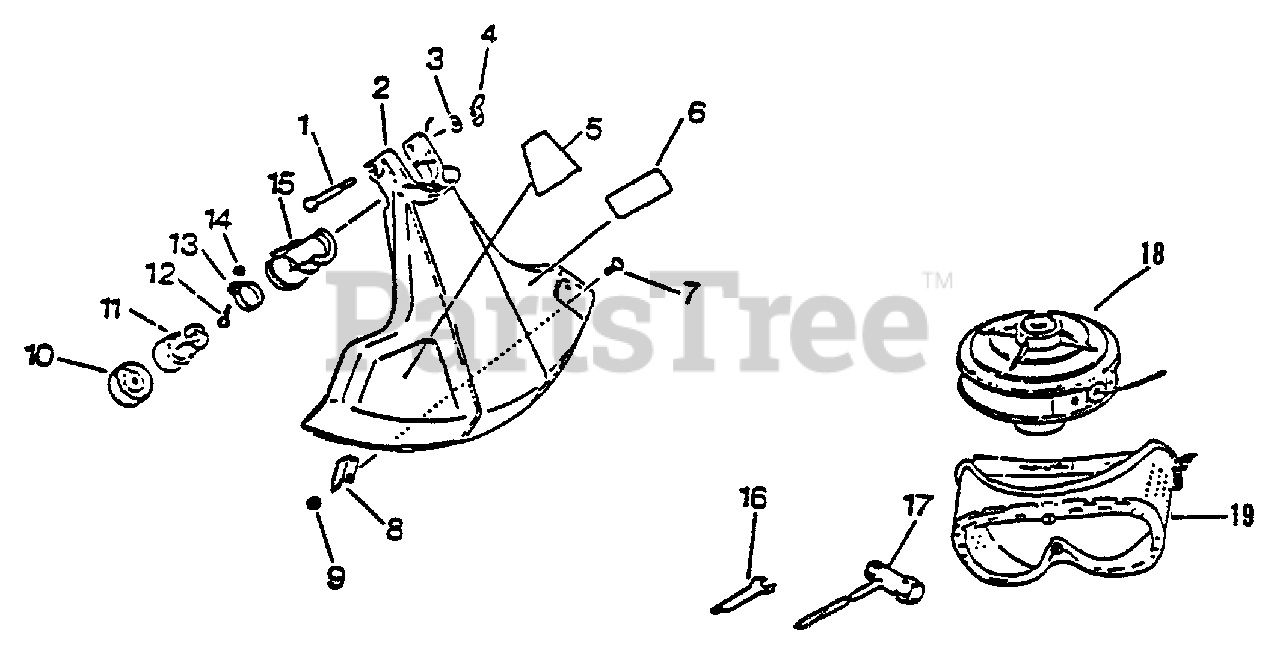

Gear Case, Shield, Tool, Accessories Parts Diagram

  • Title

1

Echo 90010006050

BOLT - 6X50

$0.99

$

In Stock, Qty 5

0

2

Echo 69900440630

DEBRIS SHIELD KIT
(Superseded to 69900452730)

Note: Includes Items 1-5,7-9 & 14

$19.99

$

In Stock, only 1 left!

0

3

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 18

0

4

Echo 90052500006

WINGNUT - 6

$1.49

$

In Stock, Qty 20+

0

5

Echo 89016844330

LABEL - CAUTION

$2.99

$

Usually ships in 2-4 days

0

6

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 10

0

7

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

8

Echo 69901644330

KNIFE, TRIMMER LINE
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

9

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

10

Echo 61030544330

ADAPTOR, BLADE - UPPER

$26.99

$

Usually ships in 2-4 days

0

11

Echo 61040044330

GEAR CASE ASSY
(Superseded to 61040452430)

$58.99

$

In Stock, only 1 left!

0

12

Echo 90010505010

SCREW - 5X10

$1.49

$

In Stock, Qty 10

0

13

Echo 61044844330

BAND

$7.49

$

Usually ships in 2-4 days

0

14

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 61044944330

BRACKET, BEARING CASE
(Superseded to Discontinued)

$

$

Not available

16

Echo 89501526630

SPANNER - 10mm

$4.99

$

In Stock, only 1 left!

0

17

Echo 89541009460

T-WRENCH - 8X19mm
(Superseded to Discontinued)

$

$

Not available

18

Echo 99944200190

KNIFE, TRIMMER LINE

$

$

Not available

19

Echo 89958040930

GOGGLES

$

$

Currently unavailable
