GT-1100 B - Echo String Trimmer (SN: 174349 - 181000) Carburetor Parts Diagram

String Trimmer

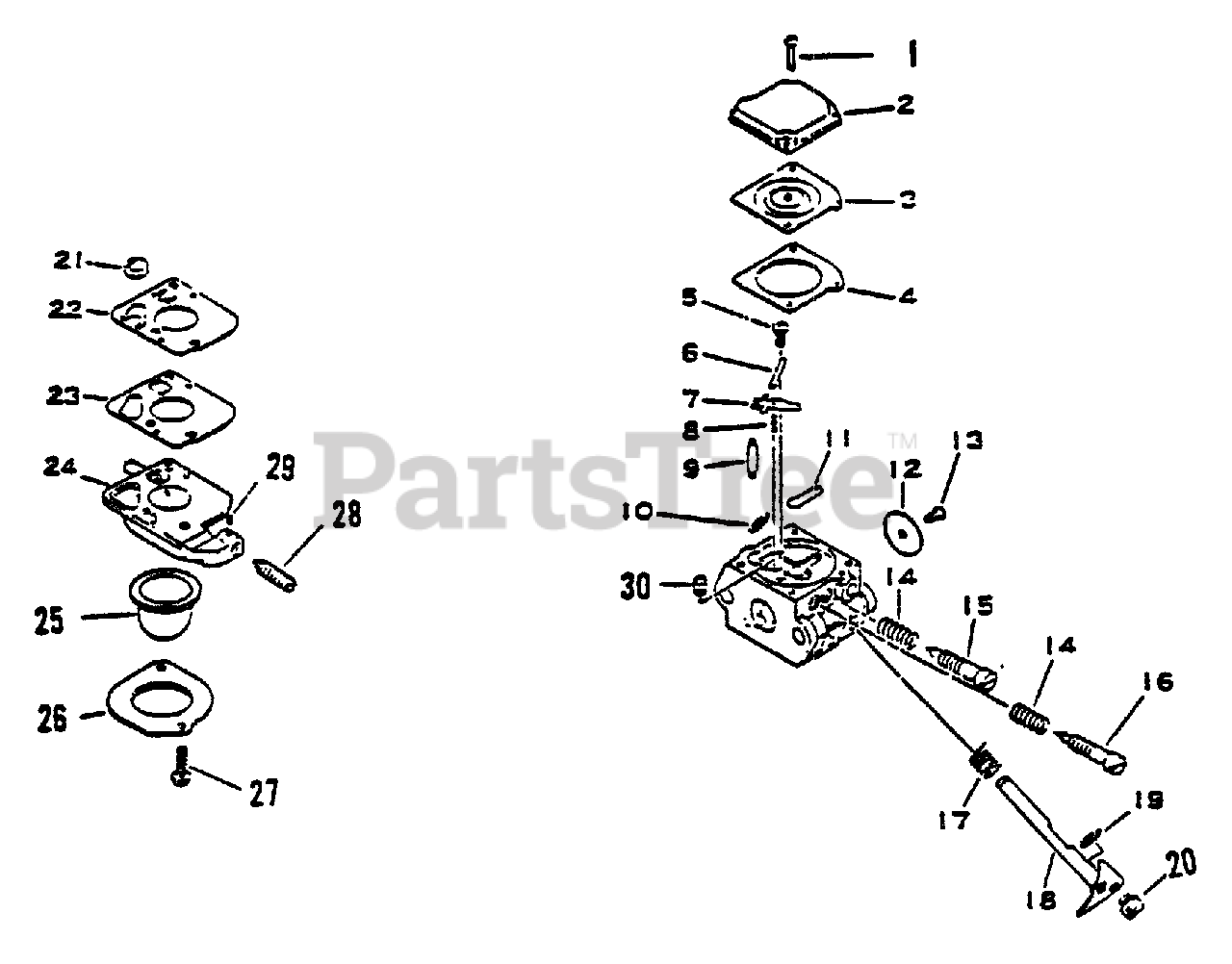

Carburetor Parts Diagram

  • Title

Echo 12520050630

CARBURETOR C1U-K16
(Superseded to 12520050631)

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

2

Echo 12534215130

COVER, METERING
(Superseded to 12534213210)

$3.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: Included in Gasket/Diaphragm Kit, P/N 12530342030 And Repair Kit, P/N 12530211610

$

$

Not available

4

------------------

GASKET, METERING

Note: Included in Gasket/Diaphragm Kit, P/N 12530342030 And Repair Kit, P/N 12530211610

$

$

Not available

5

------------------

SCREW

Note: Included in Repair Kit, P/N 12530211610

$

$

Not available

6

------------------

PIN

Note: Included in Repair Kit, P/N 12530211610

$

$

Not available

7

------------------

LEVER, METERING

Note: Included in Repair Kit, P/N 12530211610

$

$

Not available

8

------------------

SPRING

Note: Included in Repair Kit, P/N 12530211610

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: Included in Repair Kit, P/N 12530211610

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

11

------------------

PLUG, WELCH

Note: Included in Repair Kit, P/N 12530211610

$

$

Not available

12

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

13

Echo 12531413930

SCREW

$1.49

$

Usually ships in 2-4 days

0

14

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

15

Echo 12532047630

NEEDLE - HIGH SPEED

$3.99

$

In Stock, only 1 left!

0

16

Echo 12531842030

NEEDLE - LOW SPEED
(Superseded to 12531851330)

$

$

Not available

17

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

18

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

19

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

20

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

21

------------------

STRAINER

Note: Included in Repair Kit, P/N 12530211610

$

$

Not available

22

Echo 12531242030

DIAPHRAGM, PUMP

$5.49

$

In Stock, only 1 left!

0

23

------------------

GASKET, PURGE

Note: Included in Gasket/Diaphragm Kit, P/N 12530342030 And Repair Kit, P/N 12530211610

$

$

Not available

24

------------------

COVER, PUMP

Note: Included in Gasket/Diaphragm Kit, P/N 12530342030 And Repair Kit, P/N 12530211610

$

$

Not available

25

Echo 12538108660

BULB, PURGE
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

26

Echo 12536311610

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 8

0

27

Echo 12531011610

SCREW, RETAINER

$1.49

$

In Stock, Qty 13

0

28

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

29

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

30

------------------

NOZZLE, CHECK VALVE

Note: Included in Repair Kit, P/N 12530211610

$

$

Not available

Echo 12530342030

DIAPHRAGM/GASKET KIT

Note: Includes Items Below

$13.99

$

In Stock, only 1 left!

0

------------------

DIAPHRAGM

$

$

Not available

------------------

GASKET, DIAPHRAGM

$

$

Not available

------------------

GASKET, PUMP

$

$

Not available

------------------

COVER, PUMP

$

$

Not available

Echo 12530211610

REPAIR KIT
(Superseded to 12530042030)

Note: Includes Items Below

$17.99

$

In Stock, Qty 20+

0

------------------

SCREW

$

$

Not available

------------------

PIN

$

$

Not available

------------------

LEVER, METERING CHAM

$

$

Not available

------------------

SPRING

$

$

Not available

------------------

VALVE, NEEDLE

$

$

Not available

------------------

PLUG, THROTTLE

$

$

Not available

------------------

STRAINER

$

$

Not available

------------------

NOZZLE, CHECK VALVE

$

$

Not available
