GT 1054 (14W794AK009) - Cub Cadet 54" Garden Tractor (2014) Drive System Parts Diagram

54" Garden Tractor

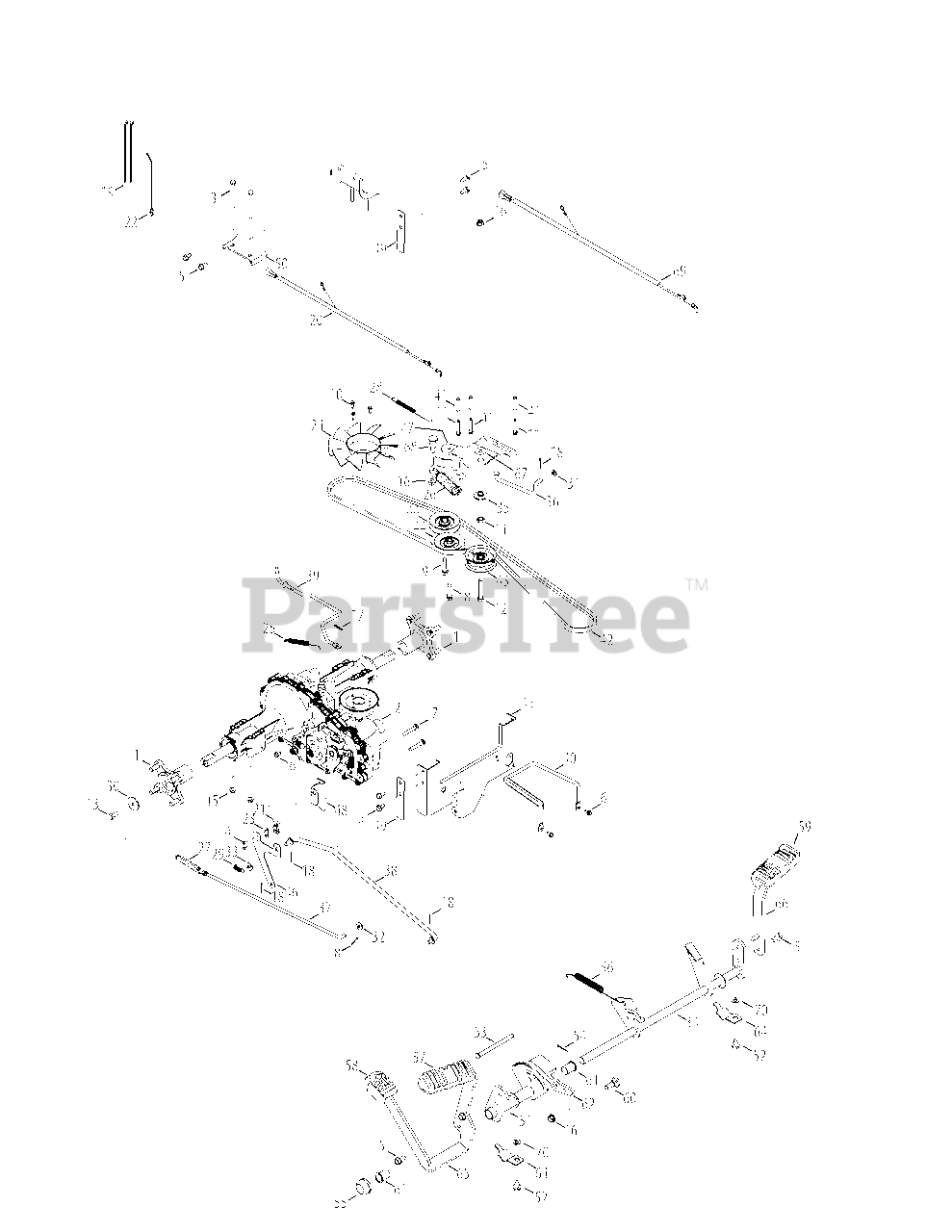

Drive System Parts Diagram

  • Title

1

Cub Cadet 918-04317

Wheel Assembly Hub

$116.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04917

Transmission

$1988.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0189

Hex Screw, 5/16-18 3.00

$6.49

$

In Stock, Qty 5

0

4

Cub Cadet 710-0227

Screw, #8-18 0.500

$4.49

$

In Stock, Qty 15

0

5

Cub Cadet 710-04484

Taptite Screw, 5/16-18 .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

Taptite Screw, 1/4-20 0.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0909A

Taptite Screw, 5/16-18 1.750

$10.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-1007

Taptite Sems Screw, 3/8-16 1.500

$6.49

$

In Stock, only 1 left!

0

9

Cub Cadet 710-1008

Taptite Sems Screw, 3/8-16 1.875

$5.49

$

In Stock, Qty 9

0

10

Cub Cadet 710-1189

Screw, #12-24 0.625

$

$

Not available

11

Cub Cadet 710-1026

Taptite Screw, 1/4-20 1.75

$6.99

$

In Stock, Qty 13

0

12

Cub Cadet 710-3011

Hex Screw, 3/8-16 2.25

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3119

Hex Screw, 3/8-16 .750

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 912-0240

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 914-0104

Cotter Pin, .072 DIA. x 1.13 LG
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 914-0111

Cotter Pin, 3/32 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

19

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

20

Cub Cadet 725-04791A

Jumper Harness

$15.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 725-1644

Short Spring Switch

$9.99

$

In Stock, only 1 left!

0

22

Cub Cadet 926-0154

Push Mount Cable Tie 7.5 LG

$6.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 926-0320

Insulator Nut Plate

$6.99

$

In Stock, Qty 9

0

24

Cub Cadet 931-1449A

Blade Fan

$35.99

$

In Stock, Qty 10

0

25

Cub Cadet 732-04528

Extension Spring, .50 DIA x 5.0 LG

$9.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-04792

Extension Spring, 1.00 DIA x 4.75

$9.49

$

In Stock, Qty 5

0

27

Cub Cadet 732-0716D

Extension Spring, .59 OD x 4.00 LG

$13.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-0932

Extension Spring, .38 DIA x 5.6

$14.99

$

In Stock, only 2 left!

0

29

Cub Cadet 732-3118

Extension Spring, .375 OD x 1.44 LG

$10.99

$

In Stock, only 3 left!

0

30

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

31

Cub Cadet 936-0264

Flat Washer, .330 x .630 x .0635

$6.99

$

In Stock, only 3 left!

0

32

Cub Cadet 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 2 left!

0

34

Cub Cadet 647-04152D

Brake Control Assembly

$

$

Not available

35

Cub Cadet 738-04420

Shoulder Spacer, 1.375 x .380 x .183

$6.99

$

In Stock, only 3 left!

0

36

Cub Cadet 747-04957A

Footpedal Bypass Transmission Rod

$13.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 747-05124

Brake Rod

$15.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 747-05125A

Control Rod

$

$

Not available

39

Cub Cadet 747-05130

Disengage Rod

$

$

Not available

40

Cub Cadet 747-05181

Belt Keeper, 5/16

$14.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 750-04456

Spacer, 260 x .372 x 1.420 LG

$7.49

$

In Stock, only 4 left!

0

42

Cub Cadet 954-04244A

V Belt, 4L x 77.0

$30.99

$

In Stock, only 1 left!

0

43

Cub Cadet 756-04224

Flat Idler Pulley, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

44

Cub Cadet 756-04325

V Idler Pulley, 3.06

$24.99

$

In Stock, Qty 20+

0

45

Cub Cadet 783-05443A-0637

Torque Bracket

$29.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 783-05841A

Switch Bracket

$11.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 783-06027B

Center Idler Bracket

$

$

Not available

48

Cub Cadet 783-06501A-0637

Deck Bracket

$

$

Not available

49

Cub Cadet 783-06503

Plate Bracket

$

$

Not available

50

Cub Cadet 783-0693A-0637

Axle Bracket

$24.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 683-04571

Hydro Pedal Bracket Assembly

$

$

Not available

52

Cub Cadet 710-0604A

Taptite Screw, 5/16-18 0.625

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 711-05068A

Clevis Pin, 5/16 x 3.985

$7.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

55

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

56

Cub Cadet 732-04587

Extension Spring, .63 DIA x 4.95 LG

$7.49

$

In Stock, Qty 12

0

57

Cub Cadet 735-04118A

Pad, Pedal, Forward

$14.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 735-04135

Pad, Pedal, Reverse

$7.99

$

In Stock, Qty 7

0

59

Cub Cadet 735-04136

Pad, Pedal, Brake

$15.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 938-0380

Shoulder Bolt, .500 x .270 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

61

Cub Cadet 741-0495

Flange Bearing, .630 ID x .695 OD x .60

$4.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 748-04203

Cruise Latch

$14.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 783-05914

Pedal Support Bracket

$7.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 783-05940

Pedal Support Bracket, 5/8

$7.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 783-06059-0637

Bracket, Pedal, Drive Hydro

$50.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 783-06103A-0637

Brake Pedal Bracket

$17.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 738-0430

Scr, Shldr, .50 x .685 3/8-16

$11.99

$

In Stock, only 2 left!

0

68

Cub Cadet 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

69

Cub Cadet 725-04791A

Jumper Harness, Ground & Reverse

$15.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available
