GT-1000 - Echo String Trimmer Intake, Exhaust, Air Cleaner Parts Diagram

String Trimmer

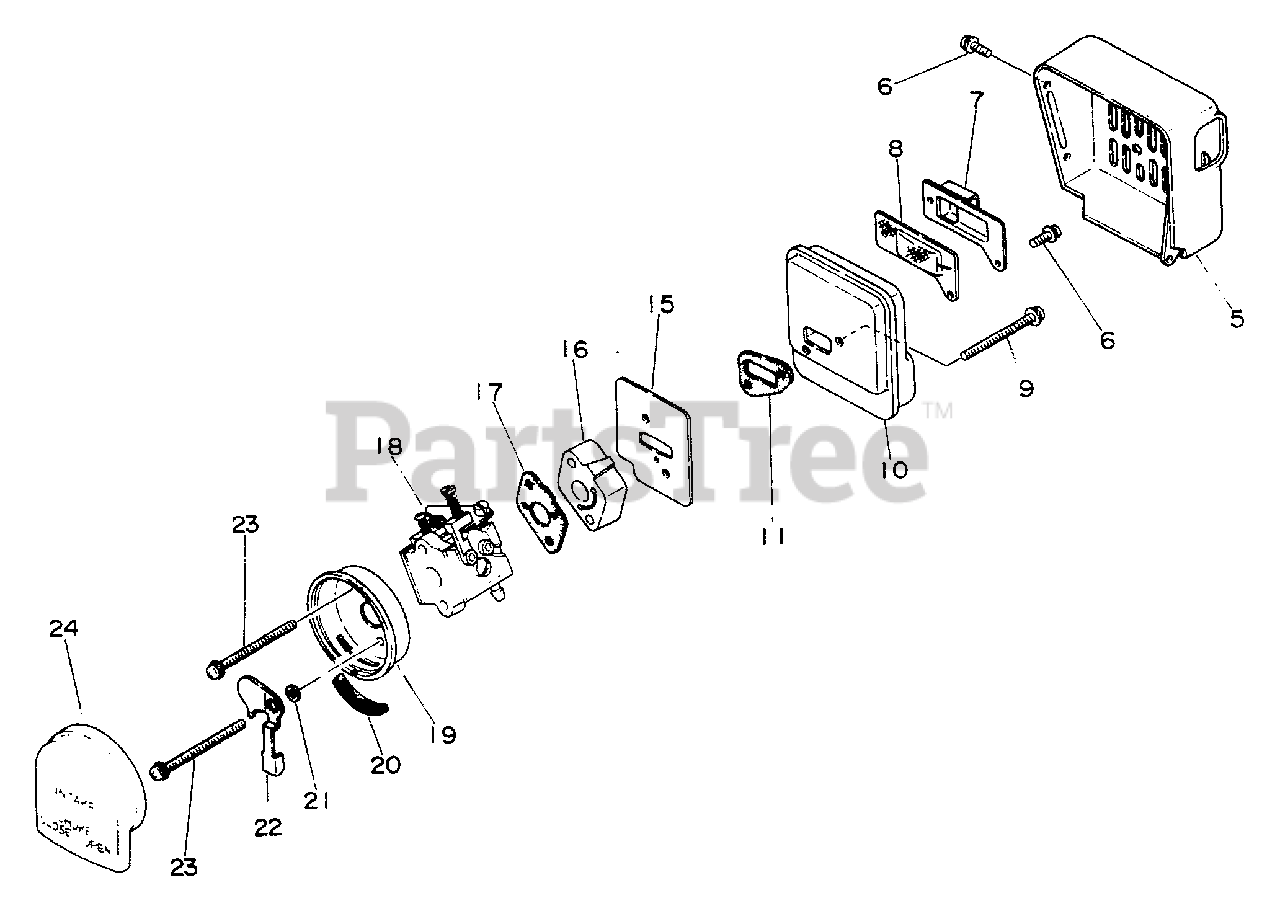

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

5

Echo 14562106320

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

6

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

7

Echo 14580921930

GUIDE, EXHAUST

$4.49

$

Usually ships in 2-4 days

0

8

Echo 14586206321

SCREEN, SPARK ARRESTOR

$1.99

$

Usually ships in 2-4 days

0

9

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 7

0

10

Echo 14580606320

CASE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

11

Echo 14551021930

GASKET, EXHAUST
(Superseded to 14551021931)

$2.49

$

Usually ships in 2-4 days

0

15

Echo 13001021630

GASKET, INTAKE
(Superseded to 13001021631)

$

$

Not available

16

Echo 13001704921

INSULATOR, INTAKE

$3.49

$

Usually ships in 2-4 days

0

17

Echo 13001604921

GASKET, INTAKE
(Superseded to 13001604922)

$

$

Not available

18

Echo 12300029130

CARBURETOR WA-168
(Superseded to Discontinued)

$

$

Not available

19

Echo 13030104920

CASE, AIR FILTER
(Superseded to Discontinued)

Note: Includes items 20

$

$

Not available

20

Echo 17881004920

GROMMET

$1.49

$

Usually ships in 2-4 days

0

21

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 17851504920

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

23

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

24

Echo 13031004922

FILTER, AIR
(Superseded to 13031003060)

$

$

Not available
