GT-1000 - Echo String Trimmer Carburetor Parts Diagram

String Trimmer

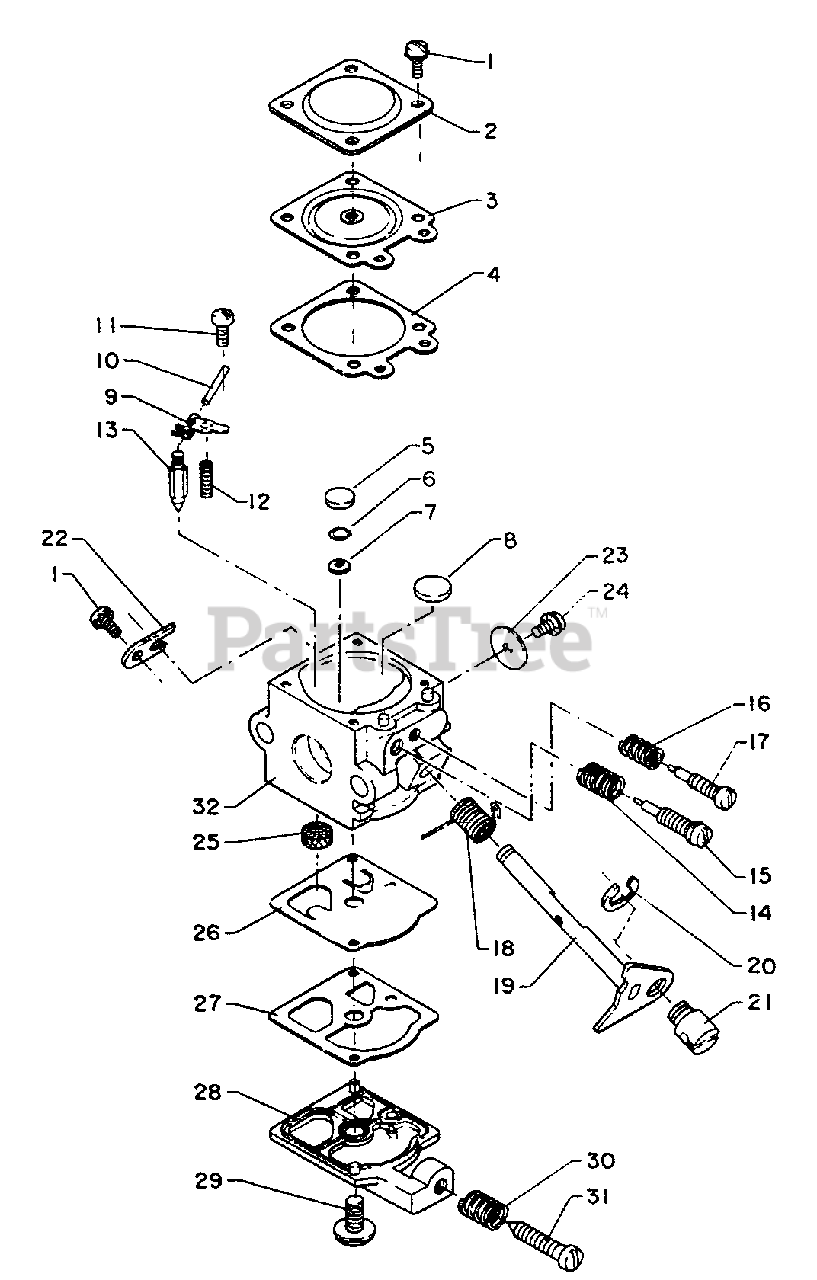

Carburetor Parts Diagram

  • Title

Echo 12300029130

CARBURETOR WA-168
(Superseded to Discontinued)

$

$

Not available

$1.99

$

Usually ships in 2-4 days

0

2

Echo 12314203930

COVER, METERING

$3.99

$

In Stock, only 1 left!

0

3

Echo 12314103930

DIAPHRAGM, METERING

$13.99

$

In Stock, Qty 6

0

4

Echo 12314006530

GASKET, METERING
(Superseded to Discontinued)

$

$

Not available

5

Echo 12314516330

PLUG, WELCH
(Superseded to Discontinued)

$

$

Not available

6

Echo 12316910630

RING, RETAINING

$1.49

$

In Stock, Qty 5

0

7

Echo 12316810631

SCREEN, SPARK ARRESTOR

$1.49

$

In Stock, only 1 left!

0

8

Echo 12314610630

PLUG, WELCH
(Superseded to 12314610631)

$1.49

$

Usually ships in 2-4 days

0

9

Echo 12312303930

LEVER, METERING
(Superseded to 12312338330)

$6.49

$

In Stock, only 1 left!

0

10

Echo 12313803930

PIN, METERING LEVER

$5.99

$

In Stock, only 4 left!

0

11

Echo 12313903930

SCREW, METERING LEVER PIN

$1.49

$

In Stock, only 1 left!

0

12

Echo 12312211130

SPRING, METERING LEVER

$1.49

$

In Stock, only 1 left!

0

13

Echo 12313703930

VALVE, INLET NEEDLE
(Superseded to Discontinued)

$

$

Not available

14

$1.49

$

In Stock, only 4 left!

0

15

Echo 12312000760

NEEDLE - HIGH SPEED

$4.49

$

In Stock, only 1 left!

0

16

Echo 12312103930

SPRING, IDLE ADJUST

$1.49

$

In Stock, Qty 5

0

17

Echo 12311824430

NEEDLE - LOW SPEED

$3.99

$

Usually ships in 2-4 days

0

18

Echo 12311303930

SPRING, THROTTLE RETURN
(Superseded to 12311309660)

$1.49

$

In Stock, Qty 11

0

19

Echo 12311709220

SHAFT, THROTTLE

$5.49

$

Usually ships in 2-4 days

0

20

Echo 12312710630

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

21

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12312703930

CLIP, THROTTLE SHAFT

$1.49

$

Usually ships in 2-4 days

0

23

Echo 12311606530

VALVE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

24

$1.49

$

In Stock, Qty 13

0

25

Echo 12312610631

STRAINER

$1.49

$

In Stock, Qty 19

0

26

Echo 12311215030

DIAPHRAGM, PUMP

$5.99

$

In Stock, only 2 left!

0

27

Echo 12312509220

GASKET, PUMP
(Superseded to Discontinued)

$

$

Not available

28

Echo 12312429130

COVER, PUMP

$4.49

$

Usually ships in 2-4 days

0

29

Echo 12311003930

SCREW, PUMP COVER

$0.99

$

In Stock, only 1 left!

0

30

Echo 12313306320

SPRING, IDLE ADJUST

$1.99

$

Usually ships in 2-4 days

0

31

Echo 12313406320

SCREW, IDLE ADJUST

$1.99

$

In Stock, only 4 left!

0

32

------------------

BODY, CARBURETOR

$

$

Not available
