GSV190 LA S3A (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-9999999) MUFFLER Parts Diagram

Engine, Made in USA

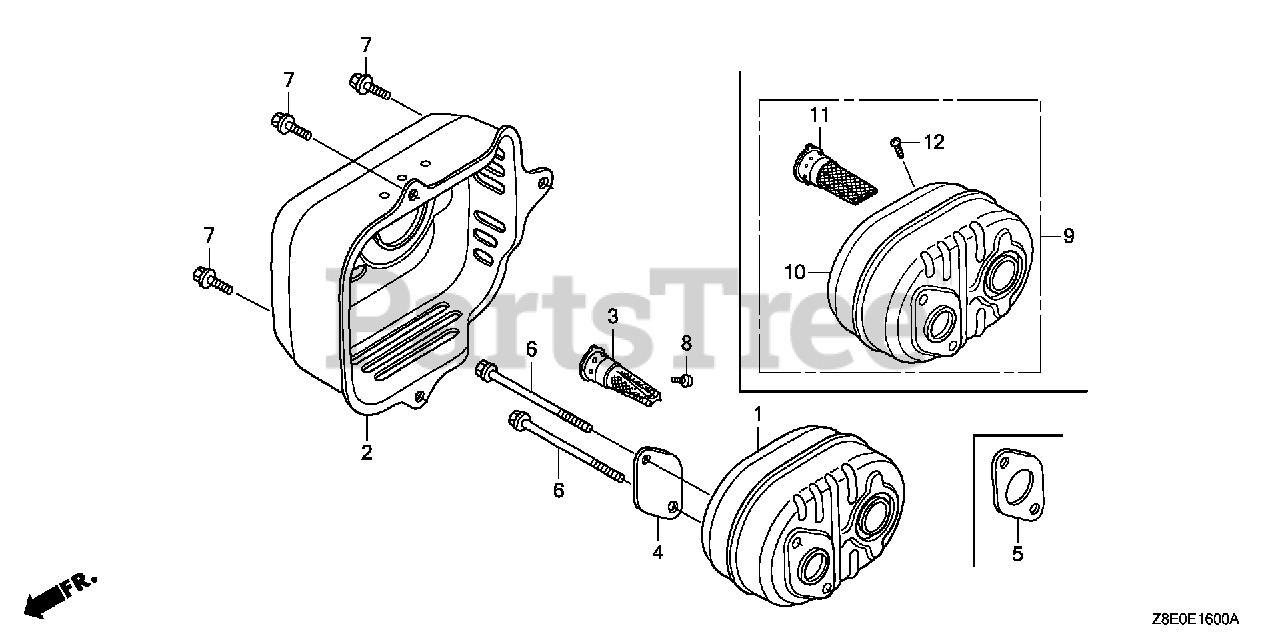

MUFFLER Parts Diagram

  • Title
1

Honda 18310-Z0Y-000

MUFFLER
(Superseded to 18310-Z0Y-010)

$28.99

$

In Stock, only 3 left!

0

2

Honda 18321-Z0L-J00

SEE PART DETAILS - SUP; PROTECTOR, MUFFLER
(Superseded to 18321-Z0L-J01)

Note: Use up to Engine SN 1068382.

$7.49

$

Usually ships in 3-6 days

0

2

Honda 18321-Z0L-J01

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

Note: Use from Engine SN 1068383.

$7.49

$

Usually ships in 3-6 days

0

3

Honda 18350-ZL8-000

SEE PART DETAILS - PRI; ARRESTER, SPARK

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

4

Honda 18356-ZL8-000

PLATE, ARRESTER NUMBER

Note: (Optional).

$4.99

$

In Stock, only 2 left!

0

5

Honda 18381-ZL8-305

GASKET, MUFFLER

Note: (Optional).

$5.49

$

In Stock, Qty 16

0

6

Honda 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200)

$1.99

$

In Stock, Qty 14

0

7

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

8

Honda 90055-ZE1-000

SCREW, TAPPING (4X6)

Note: (Optional).

$1.49

$

In Stock, Qty 11

0
