GSV190 LA S3A (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-9999999) FLYWHEEL (1) Parts Diagram

Engine, Made in USA

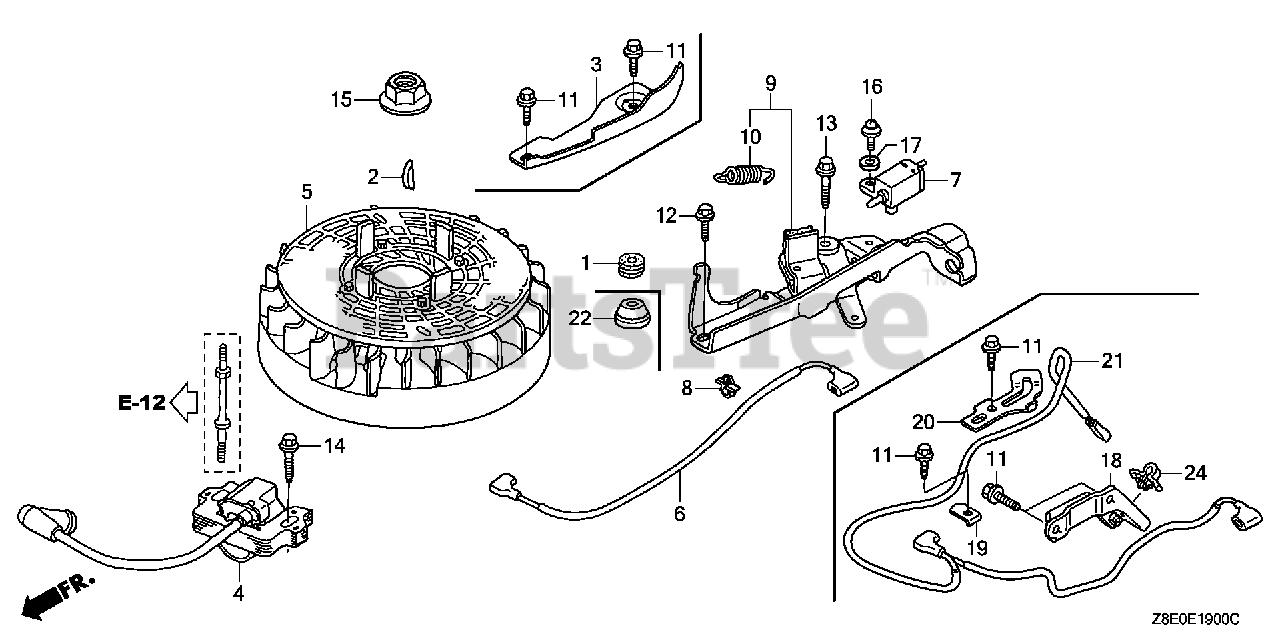

FLYWHEEL (1) Parts Diagram

  • Title
2

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 4506438.

$6.49

$

In Stock, Qty 10

0

2

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: Use up to Engine SN 4506437.

$5.49

$

In Stock, only 4 left!

0

4

Honda 30500-ZL8-014

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (USE FOR F/W OF TEC) (TEC)

$56.99

$

In Stock, only 1 left!

0

5

Honda 31105-Z0Y-800

FLYWHEEL ASSY. (TEC) (USE FOR IGN. COIL OF TEC)

$23.99

$

Usually ships in 3-6 days

0

7

Honda 35120-ZM0-003

SWITCH ASSY., ENGINE STOP (N.C)

$13.99

$

In Stock, only 2 left!

0

8

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

$8.99

$

In Stock, only 1 left!

0

8

Honda 90681-959-003

CLIP A, CABLE (3.8MM BLACK) (NIFCO)

$4.49

$

Usually ships in 3-6 days

0

9

Honda 75110-Z0Y-000

BRAKE SUB-ASSY.
(Superseded to 75110-Z8D-000)

$143.99

$

Usually ships in 3-6 days

0

10

Honda 75113-ZM0-000

SPRING, BRAKE LEVER

$3.49

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

12

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

13

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

In Stock, only 2 left!

0

14

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

In Stock, only 2 left!

0

15

Honda 90213-S3Y-000

NUT, FLANGE (14MM)

$6.49

$

In Stock, only 1 left!

0

16

Honda 93892-04012-00

SCREW-WASHER (4X12)

$0.99

$

In Stock, Qty 8

0

17

Honda 94103-04000

WASHER, PLAIN (4MM)

$0.99

$

In Stock, Qty 7

0

18

Honda 30547-Z0L-S00

CLAMP, STOP SWITCH WIRE

$869.99

$

Usually ships in 3-6 days

0

19

Honda 30548-ZL8-000

CLAMP, STOP SWITCH WIRE

$3.99

$

Usually ships in 3-6 days

0

20

Honda 30549-ZL8-000

CLAMP, WIRE

$5.99

$

Usually ships in 3-6 days

0

21

Honda 32195-Z0L-S00

WIRE, STOP SWITCH

$6.49

$

In Stock, only 1 left!

0

22

Honda 91601-Z0L-300

GROMMET, BRAKE PLATE

$0.99

$

Usually ships in 3-6 days

0

24

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

$8.99

$

In Stock, only 1 left!

0
