GSV190 LA N1L (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-4599999) OIL PAN Parts Diagram

Engine, Made in USA

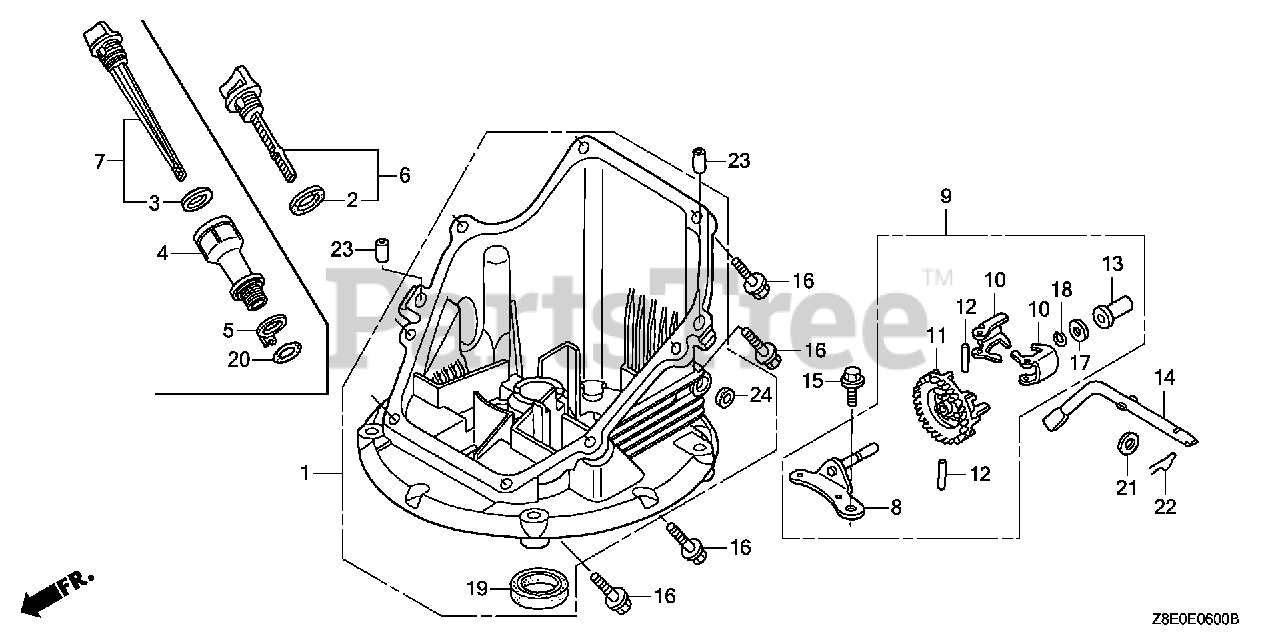

OIL PAN Parts Diagram

  • Title

1

Honda 11300-Z2D-V10

SEE PART DETAILS - SUP; PAN ASSY., OIL
(Superseded to 11300-Z2D-V11)

Note: Use up to Engine SN 1083496.

$78.99

$

Usually ships in 3-6 days

0

1

Honda 11300-Z2D-V11

SEE PART DETAILS - PRI; PAN ASSY., OIL

$78.99

$

Usually ships in 3-6 days

0

2

Honda 15625-Z2L-801

GASKET, OIL FILLER CAP (NOT AVAILABLE)

$

$

Not available

6

Honda 15650-Z0L-000

GAUGE ASSY., OIL LEVEL

$1.49

$

In Stock, only 4 left!

0

8

Honda 16508-ZM0-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER (Honda Code 6384341).

Note: Use up to Engine SN 1099806.

$6.99

$

Usually ships in 3-6 days

0

8

Honda 16508-Z8B-003

SEE PART DETAILS - SUP; SHAFT, GOVERNOR HOLDER
(Superseded to 16508-ZM0-010)

Note: Use from Engine SN 1099807.

$6.99

$

Usually ships in 3-6 days

0

9

Honda 16510-ZM0-010

SEE PART DETAILS - PRI; GOVERNOR ASSY. (Honda Code 6384333).

Note: Use up to Engine SN 1099806.

$21.99

$

In Stock, only 2 left!

0

9

Honda 16510-Z8B-000

GOVERNOR ASSY.
(Superseded to 16510-Z8B-010)

Note: Use from Engine SN 1099807.

$5.99

$

In Stock, only 2 left!

0

10

Honda 16511-ZL8-000

WEIGHT, GOVERNOR (Honda Code 5580287).

$1.99

$

In Stock, only 4 left!

0

11

Honda 16512-ZM0-000

HOLDER, GOVERNOR WEIGHT (Honda Code 5580295).

$12.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 11

0

14

Honda 16541-ZM0-000

SHAFT, GOVERNOR ARM (Honda Code 5580303).

Note: Use up to Engine SN 1066519.

$4.99

$

In Stock, only 3 left!

0

14

Honda 16541-Z8B-000

SHAFT, GOVERNOR ARM

Note: Use from Engine SN 1066520.

$1.49

$

In Stock, Qty 7

0

15

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

16

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

17

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$1.99

$

In Stock, Qty 5

0

18

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

19

Honda 91202-ZM0-V31

SEE PART DETAILS - PRI; OIL SEAL (28X41.25X6)

$7.99

$

In Stock, only 3 left!

0

21

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

22

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

23

Honda 90701-Z8B-000

PIN, DOWEL (8X20)

Note: Use from Engine SN 1086872.

$0.99

$

In Stock, Qty 8

0

23

Honda 94301-08200

SEE PART DETAILS - PRI; PIN, DOWEL (8X20)

Note: Use up to Engine SN 1086871.

$2.99

$

Usually ships in 3-6 days

0

24

Honda 91231-891-003

OIL SEAL (6X11X4) (Honda Code 0801043).

Note: Use from Engine SN 1083497.

$2.99

$

In Stock, only 1 left!

0
