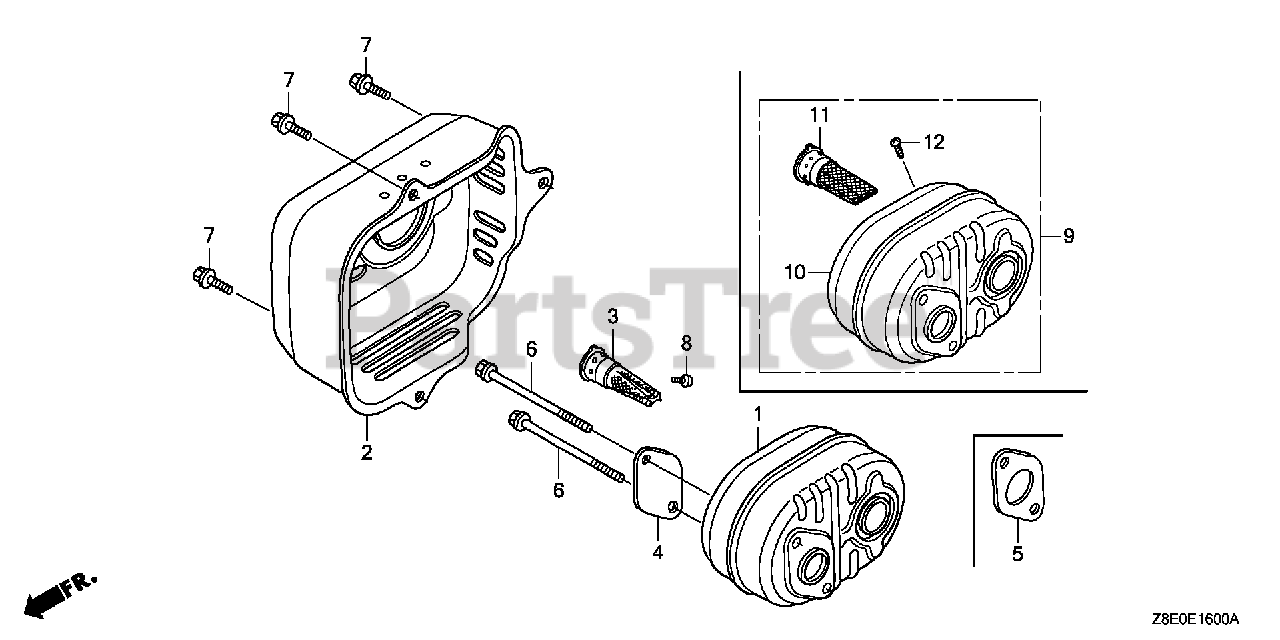

GSV190 LA N1L (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-4599999) MUFFLER Parts Diagram

Engine, Made in USA

MUFFLER Parts Diagram

  • Title

1

Honda 18310-Z0Y-000

MUFFLER
(Superseded to 18310-Z0Y-010)

$29.99

$

In Stock, only 3 left!

0

1

Honda 18310-Z0Y-010

MUFFLER

$29.99

$

In Stock, only 3 left!

0

2

Honda 18321-Z0L-010

PROTECTOR, MUFFLER

Note: Use up to Engine SN 1068382.

$7.49

$

Usually ships in 3-6 days

0

2

Honda 18321-Z0L-800

PROTECTOR, MUFFLER

Note: Use from Engine SN 1068383.

$7.99

$

Usually ships in 3-6 days

0

3

Honda 18350-ZL8-000

SEE PART DETAILS - PRI; ARRESTER, SPARK (TO 1207644)

Note: (Optional).

$40.99

$

Usually ships in 3-6 days

0

4

Honda 18356-ZL8-000

PLATE, ARRESTER NUMBER (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$4.99

$

In Stock, only 3 left!

0

5

Honda 18381-ZL8-305

GASKET, MUFFLER (Honda Code 5737457).

Note: (Optional).

$5.99

$

In Stock, Qty 15

0

6

Honda 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200) (Honda Code 5580972).

$1.99

$

In Stock, Qty 12

0

7

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

8

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$1.49

$

In Stock, Qty 20+

0

9

Honda 18300-Z8A-000

MUFFLER ASSY. (ARRESTER)

Note: (Optional).

$12.99

$

In Stock, only 1 left!

0

10

Honda 18310-Z8A-000

MUFFLER

Note: (Optional).

$7.49

$

Usually ships in 3-6 days

0

11

Honda 18350-Z0Y-000

SEE PART DETAILS - SUP; ARRESTER, SPARK
(Superseded to 18350-ZL8-000)

Note: (Optional).

$4.49

$

In Stock, only 1 left!

0

12

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

Note: (Optional).

$1.49

$

In Stock, Qty 20+

0
