GSV190 LA N1L (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-4599999) CYLINDER BARREL Parts Diagram

Engine, Made in USA

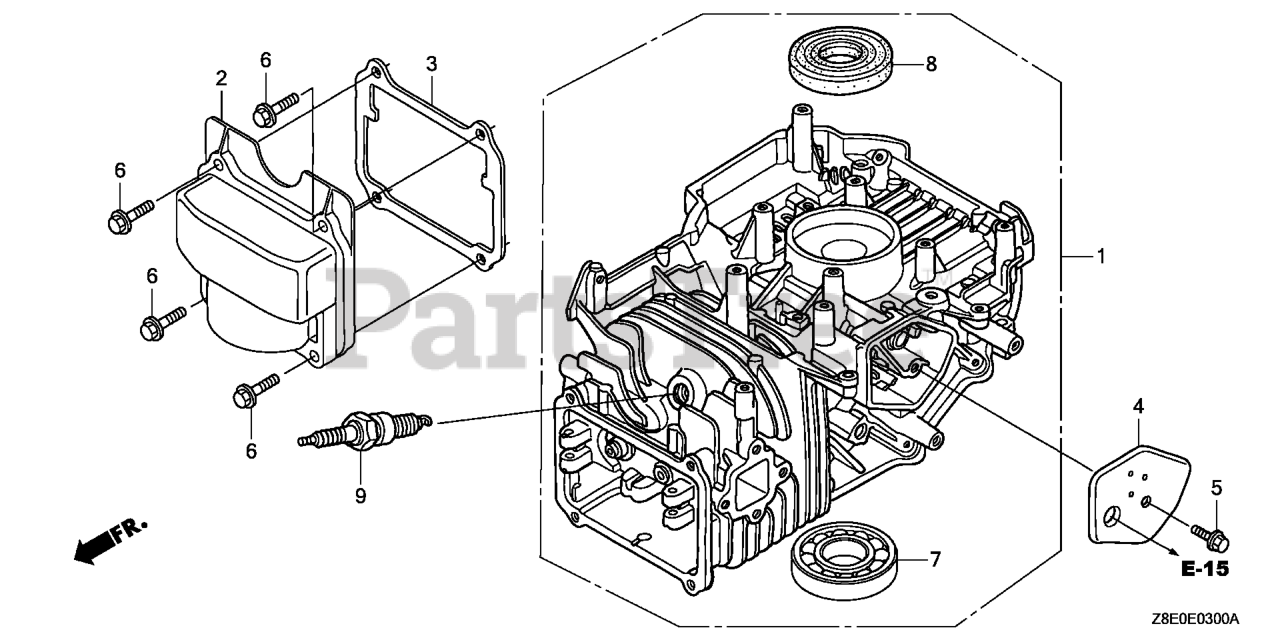

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12000-Z2C-000

CYLINDER ASSY.
(Superseded to 12000-Z2C-010)

$180.99

$

Usually ships in 3-6 days

0

1

Honda 12000-Z2C-010

CYLINDER ASSY.

$180.99

$

Usually ships in 3-6 days

0

2

Honda 12310-Z8A-000

SEE PART DETAILS - PRI; COVER, CYLINDER HEAD

Note: Use from Engine SN 4503431.

$34.99

$

In Stock, only 1 left!

0

2

Honda 12311-Z2A-000

COVER, CYLINDER HEAD

Note: Use up to Engine SN 1096295.

$25.99

$

In Stock, only 3 left!

0

2

Honda 12311-Z8B-000

COVER, HEAD

Note: Use from Engine SN 1096296 to 4503430.

$17.99

$

In Stock, only 2 left!

0

3

Honda 12312-Z2A-000

GASKET, HEAD COVER

Note: Use up to Engine SN 1096295.

$7.49

$

In Stock, Qty 10

0

4

Honda 12355-ZL8-000

COVER, BREATHER (Honda Code 5580006). (BREATHER VALVE ASSY.)

$9.49

$

In Stock, only 1 left!

0

5

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

6

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use from Engine SN 1096296.

$2.49

$

In Stock, Qty 17

0

6

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1096295.

$2.99

$

In Stock, Qty 20+

0

7

Honda 91001-894-004

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (Honda Code 0821124).

$23.99

$

Usually ships in 3-6 days

0

8

Honda 91201-Z2A-003

OIL SEAL (25.4X74X6)

$18.99

$

Usually ships in 3-6 days

0

9

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK) (Honda Code 1672443).

Note: Use from Engine SN 1045910.

$3.99

$

In Stock, Qty 20+

0

9

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).

Note: Use up to Engine SN 1045909.

$3.99

$

In Stock, Qty 20+

0
