GSV190 LA GBH (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-4599999) FUEL TANK Parts Diagram

Engine, Made in USA

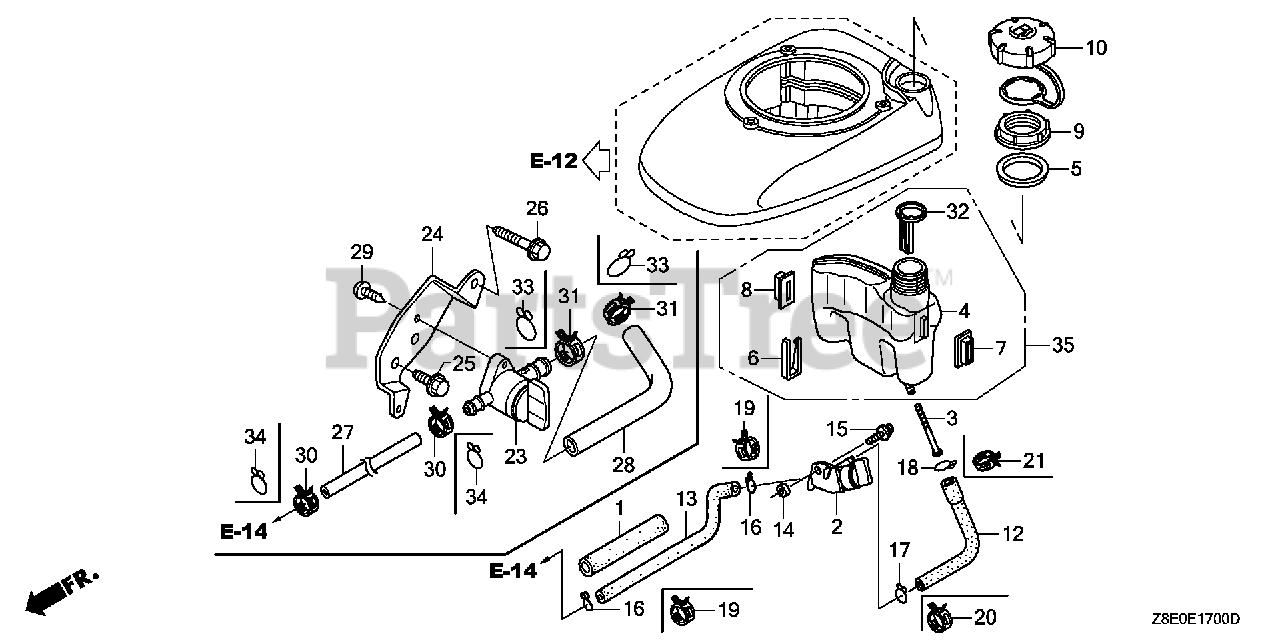

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 14

0

2

Honda 16950-ZM0-003

PETCOCK ASSY. (Honda Code 7425770).

$9.49

$

In Stock, Qty 13

0

3

Honda 16952-Z8B-000

FILTER, FUEL

$28.99

$

In Stock, Qty 10

0

4

Honda 17511-Z8B-800

TANK, FUEL
(Superseded to 17511-Z8B-801)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 17511-Z8B-801

TANK, FUEL

$24.99

$

Usually ships in 3-6 days

0

5

Honda 17514-Z0L-000

SEAL, FUEL FILLER NECK

$0.99

$

In Stock, Qty 10

0

6

Honda 17516-Z0L-000

CLIP, TANK MOUNTING

$0.99

$

In Stock, only 4 left!

0

7

Honda 17532-Z8B-800

RUBBER A, TANK MOUNTING

$15.99

$

Usually ships in 3-6 days

0

8

Honda 17533-Z8B-800

RUBBER B, TANK MOUNTING

$1.49

$

Usually ships in 3-6 days

0

9

Honda 17534-Z0L-000

NUT, TANK MOUNTING

$0.99

$

In Stock, Qty 10

0

10

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

Note: Use up to Engine SN 4567547.

$23.99

$

In Stock, Qty 7

0

10

Honda 17620-Z8B-800

CAP ASSY., FUEL TANK

$23.99

$

In Stock, Qty 7

0

12

Honda 17701-Z8B-811

TUBE, FUEL TANK (FKM)
(Superseded to 17701-Z8B-813)

$23.99

$

In Stock, only 1 left!

0

13

Honda 17702-Z8B-801

TUBE, FUEL (FKM)
(Superseded to 17702-Z8B-802)

$21.99

$

In Stock, only 3 left!

0

14

Honda 91501-Z0L-800

COLLAR, FUEL PETCOCK (Honda Code 6978399).

$1.99

$

In Stock, only 1 left!

0

15

Honda 93891-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10) (Honda Code 0671636).

$1.49

$

In Stock, Qty 5

0

19

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 6

0

20

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

21

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

Usually ships in 3-6 days

0

32

Honda 17636-Z0L-010

GAUGE, FUEL LEVEL

$0.99

$

In Stock, only 1 left!

0
