GSV190 LA GBH (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-4599999) CONTROL (1) Parts Diagram

Engine, Made in USA

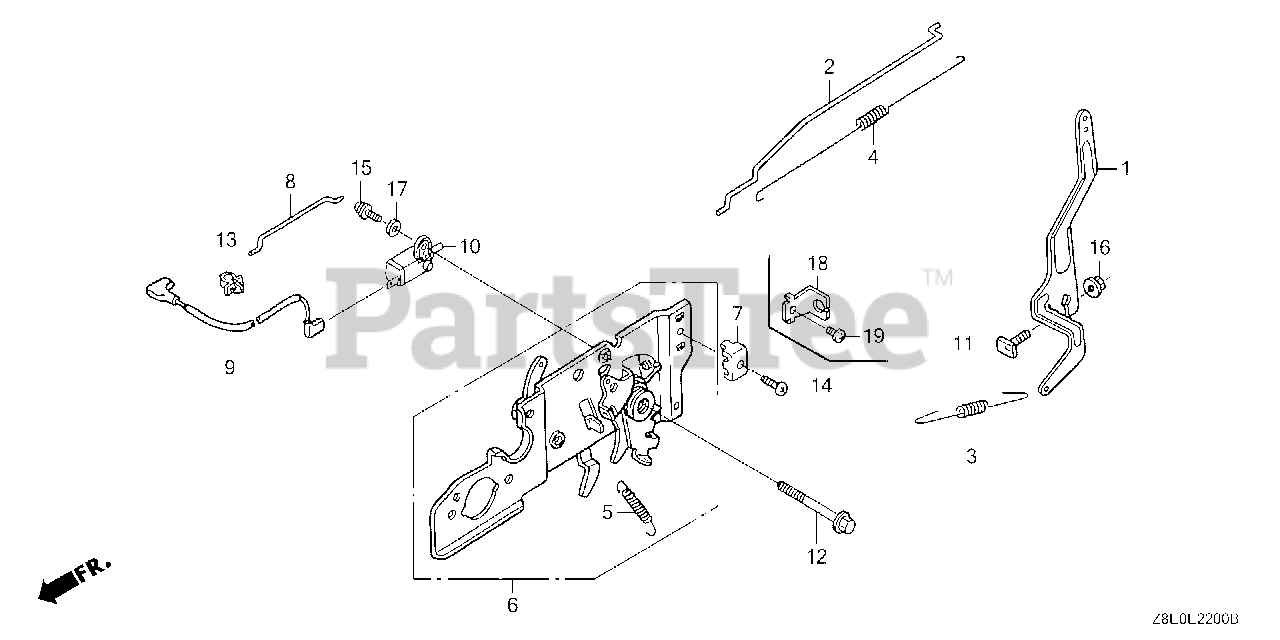

CONTROL (1) Parts Diagram

  • Title

1

Honda 16551-ZM0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR

$7.49

$

In Stock, only 1 left!

0

2

Honda 16555-Z0L-801

SEE PART DETAILS - PRI; ROD, GOVERNOR

$0.99

$

In Stock, only 2 left!

0

3

Honda 16561-Z0L-000

SPRING, GOVERNOR

$1.99

$

In Stock, Qty 6

0

4

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

$3.49

$

In Stock, Qty 9

0

5

Honda 16576-ZE7-300

SPRING, LEVER

$4.99

$

In Stock, only 1 left!

0

6

Honda 16580-Z0Y-801

BASE, CONTROL

$46.99

$

Usually ships in 3-6 days

0

8

Honda 16674-ZM0-000

ROD, CHOKE

$2.49

$

In Stock, only 1 left!

0

9

Honda 32195-Z0L-M90

WIRE, STOP SWITCH

$12.99

$

In Stock, only 1 left!

0

10

Honda 35120-Z1L-J21

SWITCH ASSY., ENGINE STOP (N.O)

$18.99

$

In Stock, only 1 left!

0

11

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

12

Honda 90014-888-000

BOLT, FLANGE (6X50) (Honda Code 0671537).

$5.49

$

Usually ships in 3-6 days

0

13

Honda 51125-Z0L-003

HOLDER, WIRE (FASTEX)

$8.49

$

In Stock, only 1 left!

0

15

Honda 93892-04012-00

SCREW-WASHER (4X12) (Honda Code 0485946).

$0.99

$

In Stock, Qty 8

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 94103-04000

WASHER, PLAIN (4MM) (Honda Code 1510361).

$0.99

$

In Stock, Qty 7

0

18

Honda 16617-Z0L-800

HOLDER, CABLE

$1.99

$

Usually ships in 3-6 days

0

19

Honda 93500-05008-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0145540).

$1.49

$

In Stock, Qty 8

0
