GSV190 LA GBH (GJACA) - Honda Engine, Made in USA (SN: GJACA-1035731 - GJACA-4599999) CARBURETOR Parts Diagram

Engine, Made in USA

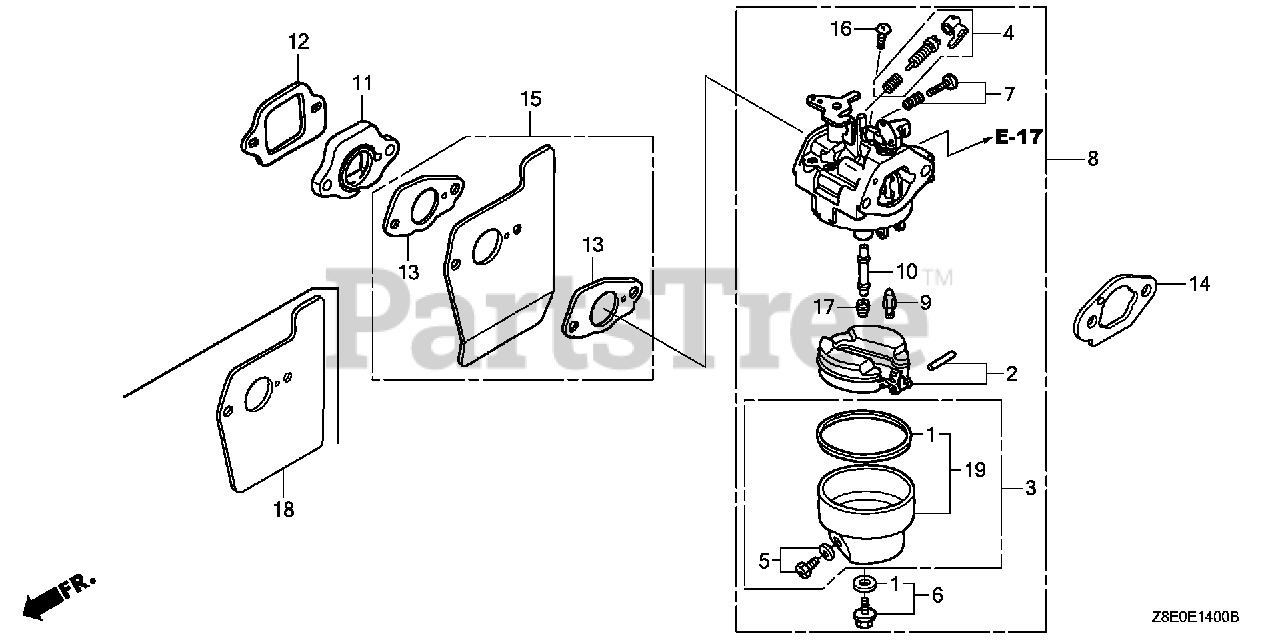

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$12.99

$

In Stock, only 2 left!

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$31.99

$

In Stock, only 2 left!

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$12.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z2D-813

CARBURETOR ASSY. (BB65G C)

$25.99

$

In Stock, only 3 left!

0

9

Honda 16155-ZM0-013

VALVE, FLOAT (Honda Code 7934714). (CARBURETOR NO.)

$34.99

$

In Stock, only 2 left!

0

10

Honda 16166-Z0Y-003

NOZZLE, MAIN (CARBURETOR NO.)

$1.49

$

In Stock, Qty 10

0

11

Honda 16211-Z8B-000

INSULATOR, CARBURETOR

$3.99

$

Usually ships in 3-6 days

0

12

Honda 16212-ZL8-000

GASKET, INSULATOR (Honda Code 5580246).

$7.99

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR (Honda Code 5580253). (CHOKE SIDE)

$2.49

$

In Stock, Qty 16

0

16

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 4 left!

0

17

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

17

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

Note: (Optional)

$12.99

$

In Stock, only 2 left!

0

17

Honda 99101-124-0680

JET, MAIN (#68) Use up to Engine SN BB30A D.

$11.99

$

Usually ships in 3-6 days

0

18

Honda 19651-Z0L-000

GUIDE, AIR

$0.99

$

In Stock, Qty 20+

0

19

Honda 16015-Z0L-881

CHAMBER SET, FLOAT (CARBURETOR NO.)

$31.99

$

Usually ships in 3-6 days

0
