GSTBC (UT-15084-A) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

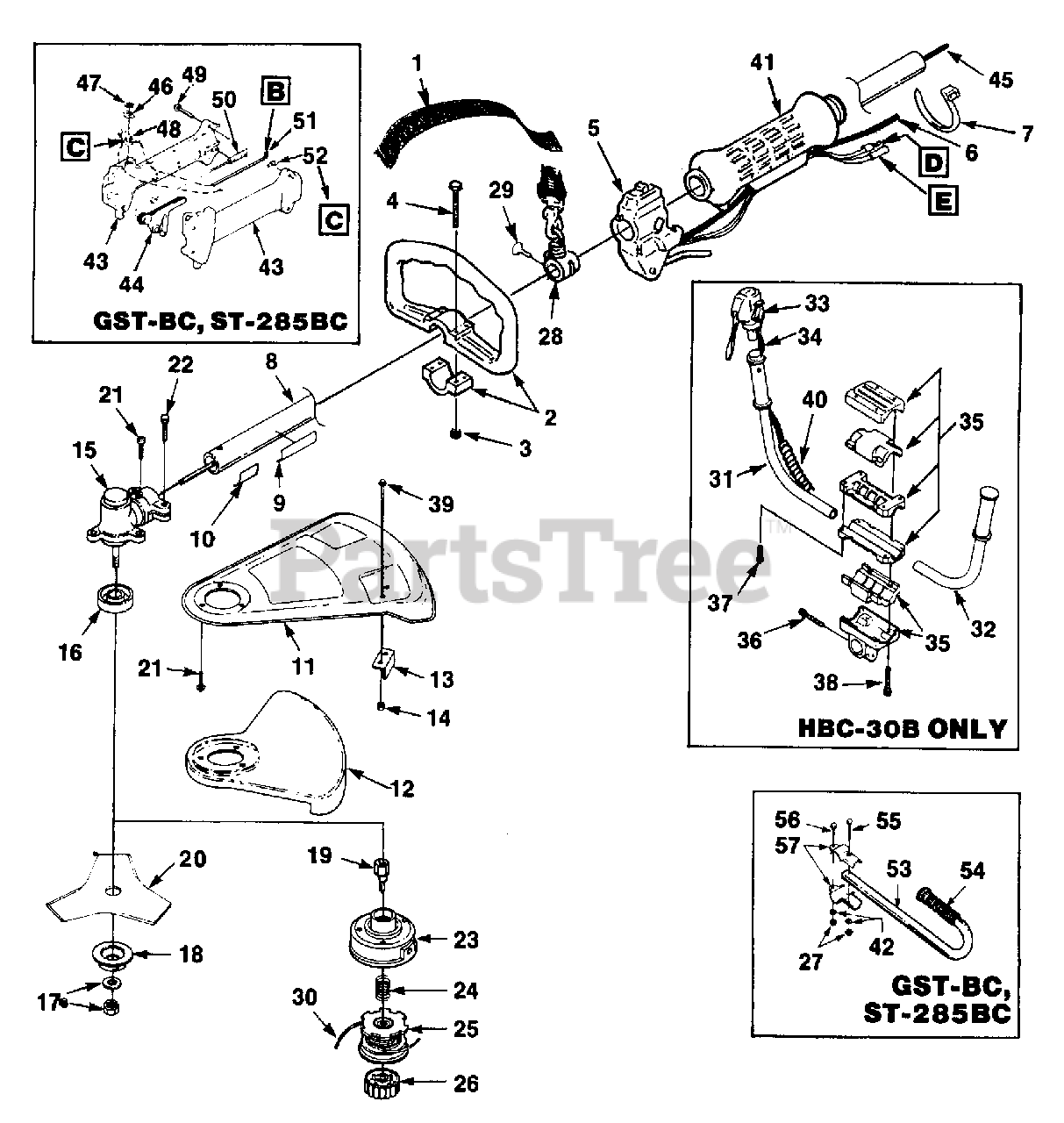

Boom & Head Parts Diagram

  • Title

1

Homelite DA92703B

HARNESS w/CONNECTOR

$

$

Currently unavailable

2

Homelite A00736

HANDLE (ST-385BC, HBC-30)

$

$

Not available

3

Homelite 00677

NUT (ST-385BC, HBC-30)

$

$

Not available

4

Homelite 00676

SCREW (ST-385BC, HBC-30)

$

$

Not available

5

Homelite A00738

THROTTLE & SWITCH w/Lead (ST-385BC, HBC-30)
(Superseded to UP06617)

$

$

Not available

6

Homelite A03006

THROTTLE CABLE (ST-285BC)

$

$

Not available

Homelite A03004

THROTTLE CABLE (ST-385BC & HBC-30)

$

$

Not available

Homelite A03005

THROTTLE CABLE (HBC-30B)
(Superseded to 0254203)

$4.49

$

Usually ships in 3-7 days

0

7

Homelite 46840

CABLE- Tie

$

$

Not available

8

Homelite A00114

HOUSING- Drive shaft (ST-385BC)

$

$

Currently unavailable

Homelite A03800

HOUSING- Drive shaft (HBC-30, HBC-30B)
(Superseded to UP04489)

$

$

Currently unavailable

9

Homelite 989241

DECAL- Starting Instructions

$

$

Currently unavailable

10

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

Homelite A04459

HOUSING- Drive shaft (GST-BC)
(Superseded to UP04555)

$

$

Not available

Homelite 989241

DECAL- Starting Instructions

$

$

Currently unavailable

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

Homelite A04244

HOUSING- Drive shaft (ST-285BC)

$

$

Currently unavailable

Homelite 989241

DECAL- Starting Instructions

$

$

Currently unavailable

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

11

Homelite 988461

DEFLECTOR- Grass

$

$

Currently unavailable

12

Homelite 988472

GUARD- Blade (ST-285BC, ST-385BC, GST-BC, HBC-30, HBC-30B)

$32.99

$

Usually ships in 3-7 days

0

13

Homelite 00075

BLADE- Cut-off (ST-285BC, ST-385BC, GST-BC)
(Superseded to 07076)

$

$

Not available

Homelite 02949

BLADE- Cut-off (HBC-30, HBC-30B)
(Superseded to 07128)

$

$

Not available

14

Homelite 81208

NUT (10-24)

$

$

Not available

15

Homelite A03888

GEAR HEAD (ST-385BC, GST-BC, HBC-30, HBC-30B)
(Superseded to UP04120)

$

$

Not available

Homelite A04151

1 GEAR HEAD (ST-285BC)
(Superseded to UP06866A)

$111.99

$

Usually ships in 3-7 days

0

16

Homelite 04168

WASHER- Flange
(Superseded to 04168A)

$10.99

$

Usually ships in 3-7 days

0

17

Homelite 04277

NUT- Hex (L.H.)
(Superseded to 678018001)

$

$

Not available

18

Homelite 04259

WASHER- Flange

$

$

Not available

19

Homelite 9855141

CONNECTOR- Drive

$

$

Not available

20

Homelite D98717A

TRI-ARC BLADE (ST-385BC,
(Superseded to D98717C)

$21.99

$

Usually ships in 3-7 days

0

21

Homelite 88049

SCREW (10-24 x 1/2")

$

$

Not available

22

Homelite 88053

SCREW (10-24 x 1")
(Superseded to 96624)

$

$

Not available

23

Homelite A98231A

HOUSING & EYELET
(Superseded to 099068001005)

$

$

Not available

24

Homelite 98848

SPRING- Compression
(Superseded to UP06526)

$1.99

$

In Stock, only 3 left!

0

25

Homelite DA98912C

SPOOL & STRING (Dual Line) (ST-275BC)

$

$

Currently unavailable

Homelite DA02598A

SPOOL & STRING (Dual Line) (ST-385BC, GST-BC, HBC-30, HBC-30B)

$

$

Currently unavailable

26

Homelite A97910A

RETAINER- Spool
(Superseded to 308042003)

$7.49

$

In Stock, Qty 5

0

27

Homelite 81267

NUT (1/4-20)(GST-BC & ST-285BC)

$

$

Not available

28

Homelite A94442

BRACKET- Hanger

$18.99

$

Usually ships in 3-7 days

0

29

Homelite 82260

SCREW- Thumb (10-24 x 1/2")

$

$

Not available

30

Homelite 0395903

LINE- Replacement (.095 Dia.)(1 lb. Box)(ST-385BC,GST-BC,HBC-30,HBC-30
(Superseded to D06514)

$

$

Not available

Homelite DA97952B

LINE- Replacement (.080 Dia.) (100 Ft.) (ST-275BC)
(Superseded to D06509A)

$

$

Not available

31

Homelite A03277

HANDLE BAR (HBC-30B)

$

$

Currently unavailable

32

Homelite A03268

HANDLE BAR (HBC-30B)
(Superseded to UP00392)

$24.99

$

Usually ships in 3-7 days

0

33

Homelite A03275

SWITCH & LEAD (HBC-30B)

$

$

Not available

34

Homelite A03005

THROTTLE CABLE (HBC-30B)
(Superseded to 0254203)

$4.49

$

Usually ships in 3-7 days

0

35

Homelite A005921

HANDLE BRACKET (HBC-30B)
(Superseded to UP04691)

$

$

Not available

36

Homelite 00605

SCREW- Soc hd.

$

$

Not available

37

Homelite 00606

SCREW- Hex hd.
(Superseded to 03942)

$

$

Not available

38

Homelite 00607

SCREW- Hex hd.
(Superseded to 03944)

$

$

Not available

39

Homelite 80869

SCREW (10-24 x 3/8")

$

$

Not available

40

Homelite 00684

SLEEVING- Plastic (HBC-30B)

$

$

Not available

41

Homelite 03234

GRIP- Handle (ST-385BC, HBC-30, HBC-30B)

$

$

Currently unavailable

42

Homelite 83061

WASHER (1/4")(GST-BC,ST-285BC)

$

$

Not available

43

Homelite A00879

HANDLE GRIP ASSEMBLY (GST-BC, ST-285BC)

$

$

Not available

44

Homelite 98772A

TRIGGER (GST-BC, ST-285BC)
(Superseded to UP04558)

$

$

Not available

45

Homelite 98832

SHAFT- Drive (ST-385BC, GST-BC, HBC-30, HBC-30B)

$

$

Not available

Homelite 98818

SHAFT- Flexible (ST-285BC)

$

$

Not available

46

Homelite 95231

PLATE- Indicating (GST-BC, ST-285BC)
(Superseded to UP04266)

$

$

Not available

47

Homelite 72084A1

NUT- (GST-BC, ST-285BC)
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

48

Homelite 93653

SWITCH- Toggle (GST-BC, ST-285BC)
(Superseded to UP04261)

$

$

Not available

49

Homelite 82368

SCREW- Plastite (#8 x 3/4") (GST-BC, ST-285BC)
(Superseded to PS00055)

$

$

Not available

50

Homelite A03006

CABLE- Throttle (GST-BC, ST-285BC)

$

$

Not available

51

Homelite A98918

LEAD- Electrical (GST-BC, ST-285BC)

$

$

Not available

52

Homelite A98919A

LEAD- Ground (GST-BC, ST-285BC)
(Superseded to UP04274)

$

$

Not available

53

Homelite A03552

HANDLE BAR ("J") (GST-BC, ST-285BC)
(Superseded to UP06534)

$

$

Not available

54

Homelite 94474B

GRIP (GST-BC, ST-285BC)

$

$

Not available

55

Homelite 88071

SCREW (1/4-20 x 1 1/2") (GST-BC & ST-285BC)

$

$

Not available

56

Homelite 88078

SCREW (1/4-20 x 1") (GST-BC & ST-285BC)

$

$

Not available

57

Homelite 00422

CLAMP- Handle bar (GST-BC & ST-285BC)
(Superseded to 099075001007)

$1.49

$

In Stock, only 1 left!

0
