GS65 K2 BD (G65) - Honda Engine, Made in Japan (SN: G65-3000034 - G65-3102930) GK2/GSK2CARBURETOR Parts Diagram

Engine, Made in Japan

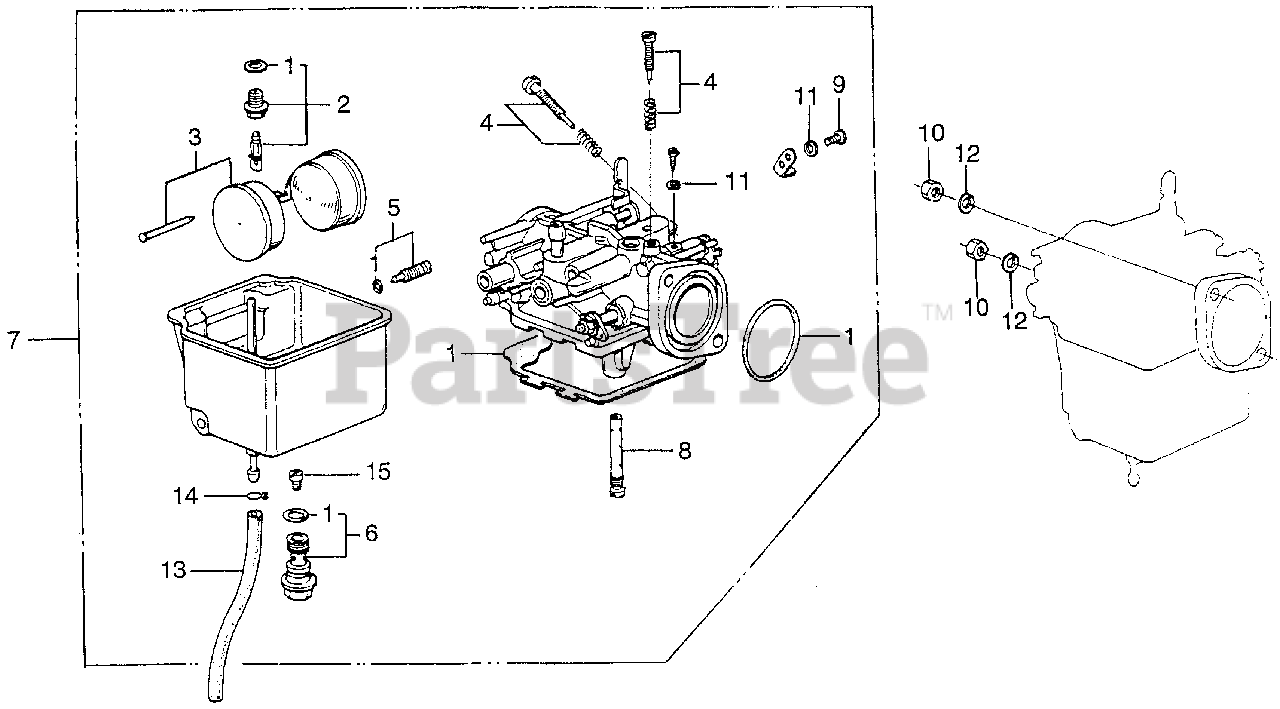

GK2/GSK2CARBURETOR Parts Diagram

  • Title

1

Honda 16010-873-004

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-880-505)

$

$

Not available

2

Honda 16011-866-004

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$22.99

$

In Stock, only 1 left!

0

3

Honda 16013-862-004

FLOAT SET

$

$

Not available

4

Honda 16016-873-004

SCREW SET A (NOT AVAILABLE)

$

$

Not available

5

Honda 16024-124-004

SCREW SET, DRAIN (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16028-862-004

SCREW SET B (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16100-873-004

CARBURETOR ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16166-873-004

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 93500-03007-0A

SCREW, PAN (3X7) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

10

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

10

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

11

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, Qty 10

0

12

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

13

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X150)

$31.99

$

In Stock, only 1 left!

0

14

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

15

Honda 99101-862-0920

JET, MAIN (#92)

$

$

Currently unavailable
