GS65 K2 BD (G65) - Honda Engine, Made in Japan (SN: G65-3000034 - G65-3102930) CYLINDER BARREL Parts Diagram

Engine, Made in Japan

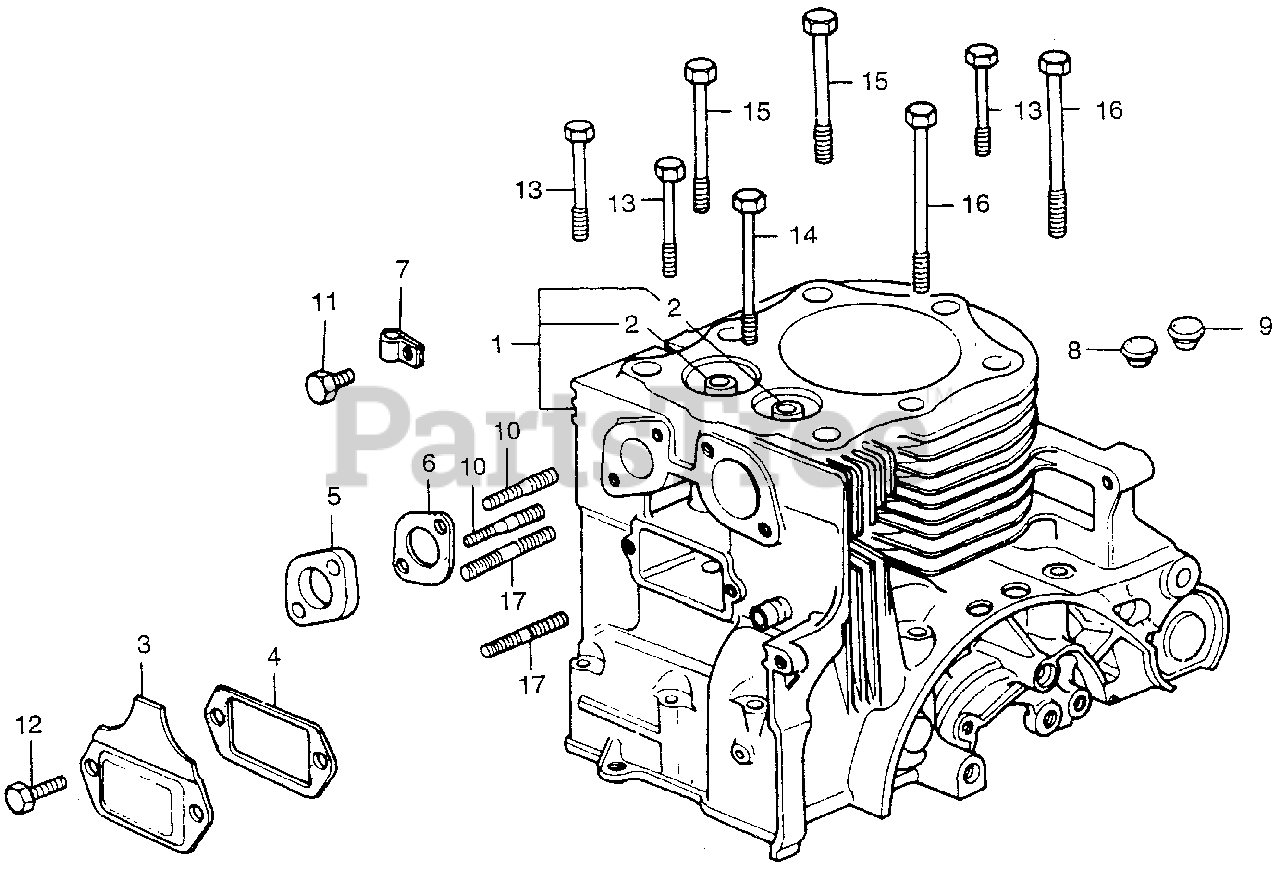

CYLINDER BARREL Parts Diagram

  • Title

1

Honda 12100-823-760

CYLINDER

$

$

Not available

2

Honda 12236-823-305

GUIDE, VALVE

$

$

Currently unavailable

3

Honda 12361-823-651

COVER, TAPPET

$

$

Not available

4

Honda 15719-823-000

SEE PART DETAILS - SUP; GASKET, TAPPET COVER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16211-823-303

INSULATOR, CARBURETOR (NOT AVAILABLE)

$17.99

$

Usually ships in 3-6 days

0

6

Honda 16229-823-306

SEE PART DETAILS - PRI; GASKET, CARBURETOR INSULATOR

$

$

Currently unavailable

8

Honda 32951-705-000

GROMMET, WIRE

$

$

Currently unavailable

9

Honda 32952-805-020

GROMMET, WIRE

$

$

Currently unavailable

10

Honda 90062-822-701

BOLT, STUD (8X39) (NOT AVAILABLE)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 92000-06012

SEE PART DETAILS - SUP; BOLT, HEX. (6X12)

$

$

Currently unavailable

12

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 92000-06063-0A

BOLT, HEX. (6X63)

$

$

Currently unavailable

14

Honda 92101-06090-0A

BOLT, HEX. (6X90)

$

$

Not available

15

Honda 92022-08080-0A

BOLT, HEX. (8X80) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

16

Honda 92101-08100-0A

BOLT, HEX. (8X100)

$

$

Currently unavailable

17

Honda 92900-06020-0B

BOLT 2, STUD (6X20)

$2.49

$

Usually ships in 3-6 days

0
