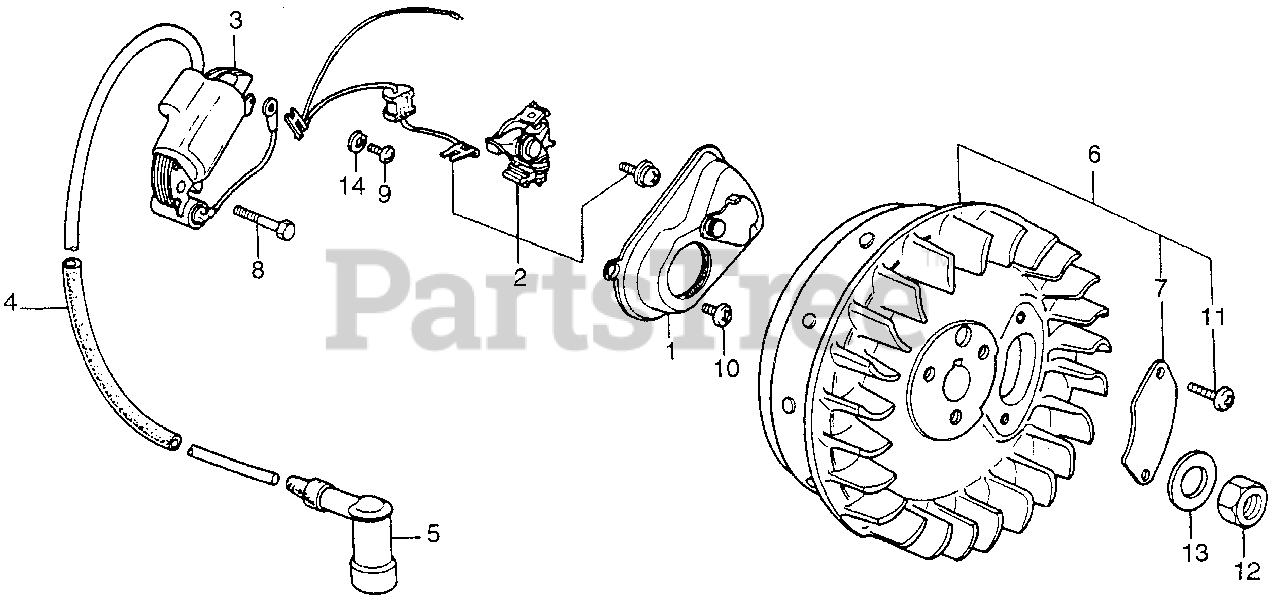

GS65 BD (G65) - Honda Engine, Made in Japan (SN: G65-1000025 - G65-1115197) POINTS + IGNITION COILS + FLYWHEEL Parts Diagram

Engine, Made in Japan

POINTS + IGNITION COILS + FLYWHEEL Parts Diagram

  • Title
1

Honda 30210-823-010

COVER, POINT

$

$

Not available

2

Honda 30280-873-000

POINTS ASSY.

$

$

Not available

3

Honda 30560-823-023

COIL, IGNITION

$

$

Not available

4

Honda 30565-728-000

SEE PART DETAILS - PRI; TUBE, IGNITION RUBBER

$10.99

$

Usually ships in 3-6 days

0

5

Honda 30600-823-760

TERMINAL ASSY., IGNITION

$

$

Not available

8

Honda 92000-06028

SEE PART DETAILS - SUP; BOLT, HEX. (6X28)

$

$

Currently unavailable

8

Honda 92101-06028-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X28)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 93500-03006-0B

SCREW, PAN (3X6) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 93500-05006-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X6)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, Qty 10

0
