GS65 BD (G65) - Honda Engine, Made in Japan (SN: G65-1000025 - G65-1115197) G65/GS65MUFFLER Parts Diagram

Engine, Made in Japan

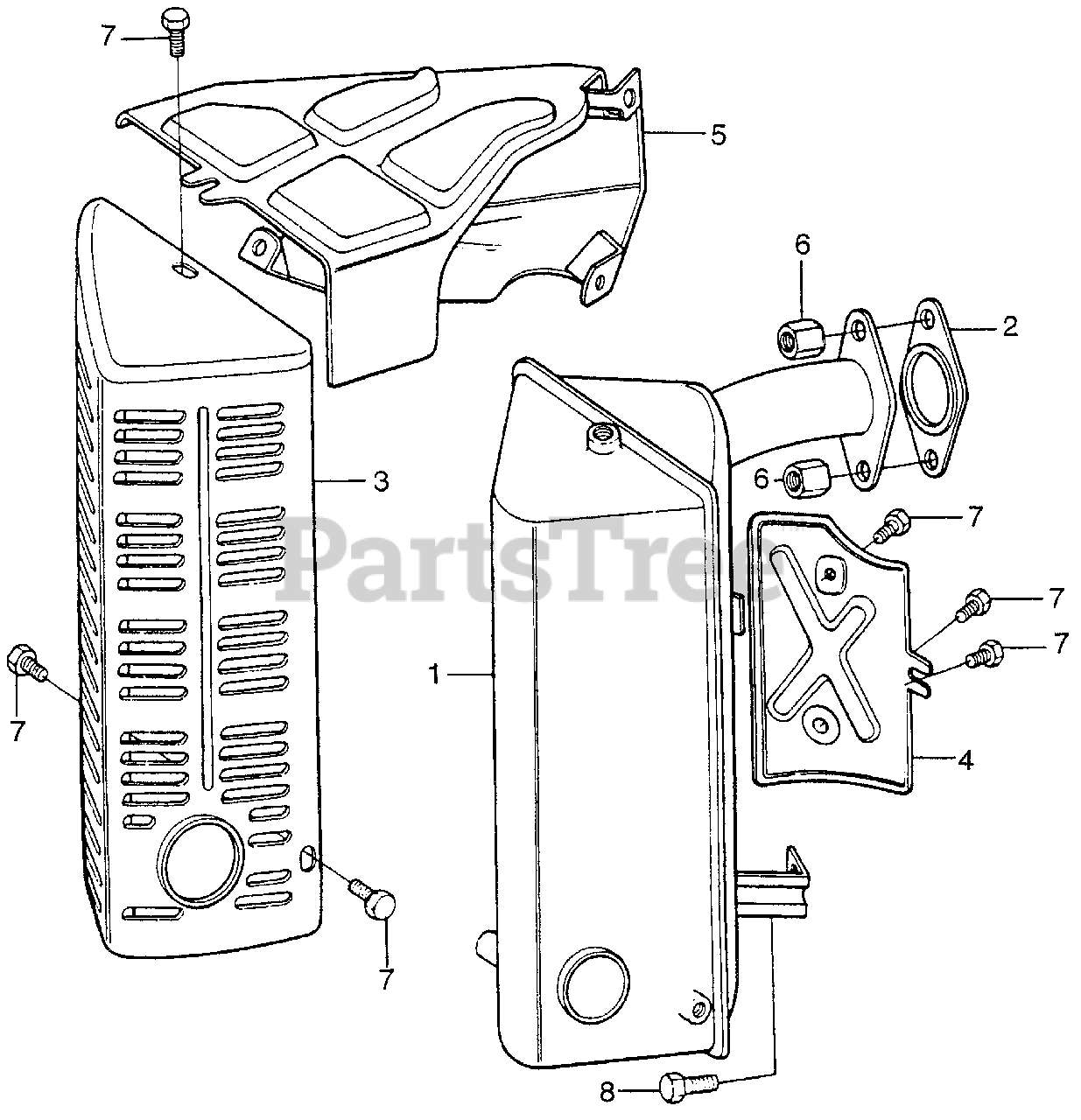

G65/GS65MUFFLER Parts Diagram

  • Title
1

Honda 18300-823-000

MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18351-809-000

GASKET, MUFFLER (NOT AVAILABLE)

$

$

Not available

3

Honda 18361-823-000

PROTECTOR, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 18363-822-010

PLATE, MUFFLER SEPARATOR

$

$

Not available

5

Honda 18365-823-000

COVER, EX. PIPE

$

$

Not available

6

Honda 90381-703-000

NUT, HEX. (6MM)

$

$

Currently unavailable

7

Honda 92100-06008-0B

SEE PART DETAILS - SUP; BOLT, HEX. (6X8)

$

$

Currently unavailable

7

Honda 92101-06008-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X8)

$2.49

$

Usually ships in 3-6 days

0

8

Honda 92000-08018-0A

SEE PART DETAILS - SUP; BOLT, HEX. (8X18)

$

$

Currently unavailable

8

Honda 92101-08018-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X18)

$2.49

$

Usually ships in 3-6 days

0
