GS190 LAX QHAF (GCACA) - Honda Engine, Made in USA (SN: GCACA-2074905 - GCACA-9999999) FUEL TANK@FUEL PUMP Parts Diagram

Engine, Made in USA

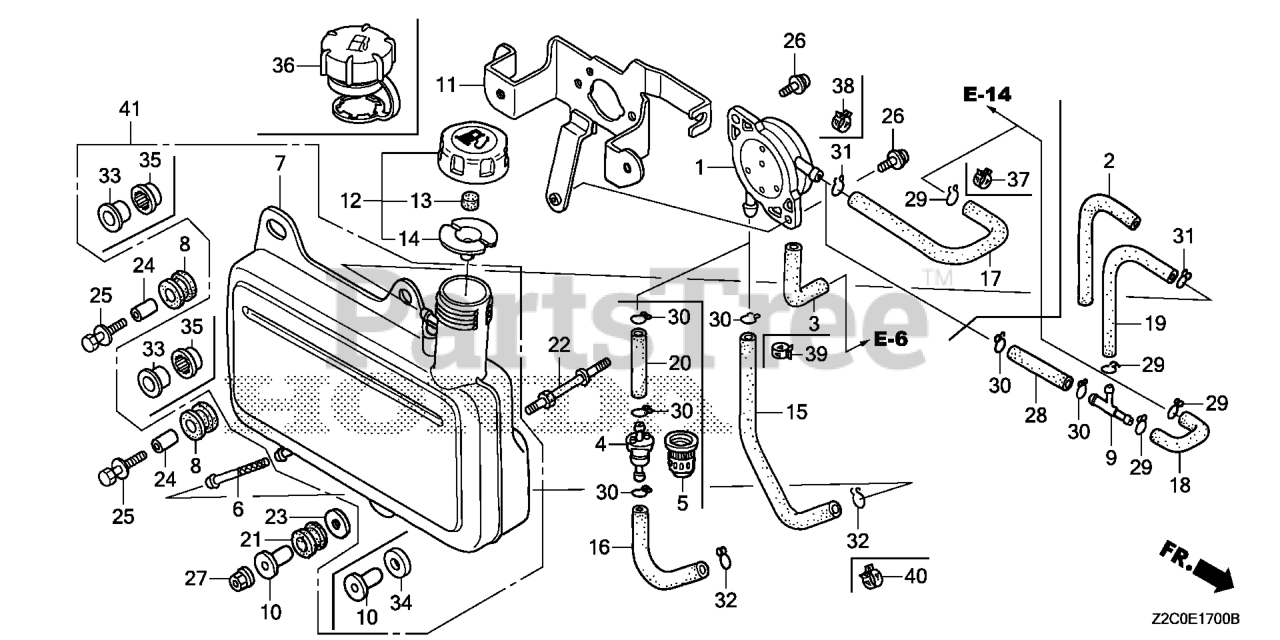

FUEL TANK@FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-Z8A-004

PUMP ASSY., FUEL (MSDS)

$95.99

$

In Stock, Qty 5

0

3

Honda 16882-ZL8-000

TUBE, DIAPHRAGM

$2.99

$

In Stock, Qty 20+

0

6

Honda 16952-Z8B-000

FILTER, FUEL

$28.99

$

In Stock, Qty 10

0

7

Honda 17511-Z8A-801

TANK, FUEL

$26.99

$

Usually ships in 3-6 days

0

10

Honda 17535-KE7-000

COLLAR, FUEL TANK SETTING

$4.99

$

In Stock, only 1 left!

0

11

Honda 17561-Z0J-000

STAY A, FUEL TANK

$7.99

$

In Stock, only 1 left!

0

15

Honda 17701-Z8A-023

TUBE, FUEL TANK (FKM)

$

$

Currently unavailable

17

Honda 17702-Z8A-013

TUBE, FUEL (FKM)

$11.99

$

Usually ships in 3-6 days

0

22

Honda 90041-ZL8-000

BOLT, FUEL TANK STUD (H=30MM)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 90473-896-000

WASHER (6MM)

$2.49

$

In Stock, only 3 left!

0

25

Honda 93404-06025-00

BOLT-WASHER (6X25)

$1.49

$

In Stock, only 3 left!

0

26

Honda 93894-05014-00

SCREW-WASHER (5X14)

$1.49

$

In Stock, Qty 6

0

27

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

33

Honda 17518-Z8A-800

COLLAR, TANK SET

$1.49

$

Usually ships in 3-6 days

0

34

Honda 17532-Z8A-800

RUBBER A, TANK MOUNTING

$0.99

$

In Stock, Qty 10

0

35

Honda 17533-Z8A-800

RUBBER B, TANK MOUNTING

$0.99

$

In Stock, Qty 10

0

36

Honda 17620-Z8B-800

CAP ASSY., FUEL TANK

$23.99

$

In Stock, Qty 7

0

37

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 6

0

38

Honda 95002-40850-08

CLIP, TUBE (D8.5) (Honda Code 0665240).

$3.49

$

In Stock, Qty 8

0

39

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

40

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

Usually ships in 3-6 days

0
