GS190 LAX QHAF (GCACA) - Honda Engine, Made in USA (SN: GCACA-2074905 - GCACA-9999999) CYLINDER BARREL Parts Diagram
Engine, Made in USA

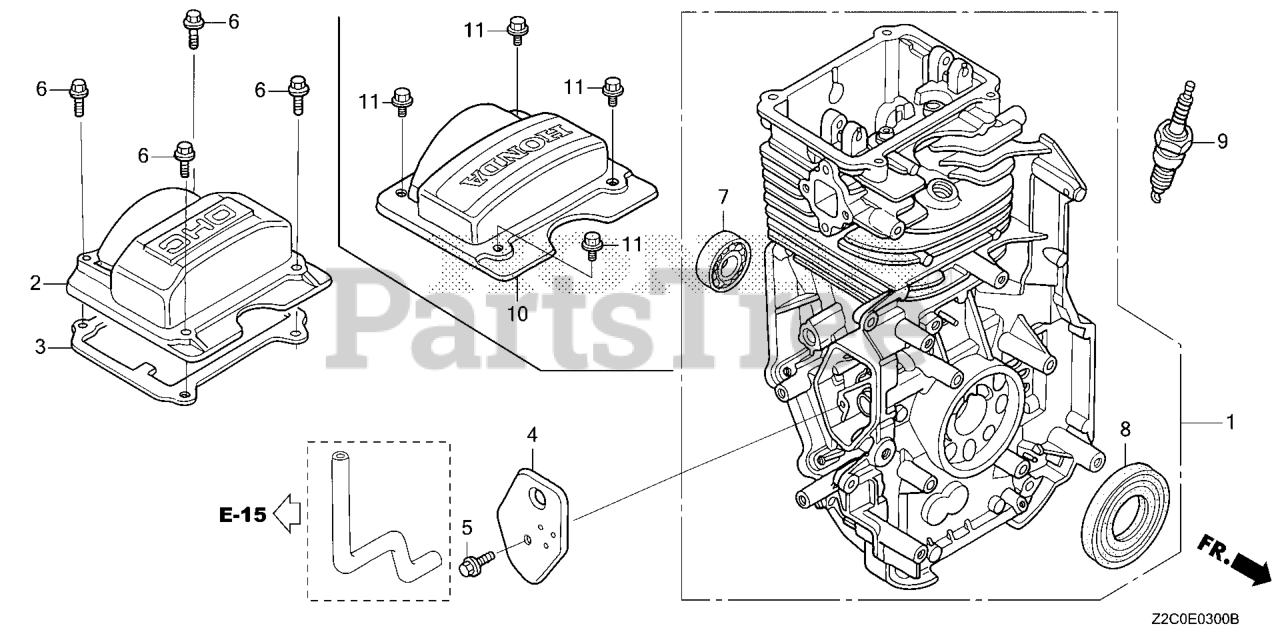

CYLINDER BARREL Parts Diagram
Honda 12000-Z2C-010
CYLINDER ASSY.
$174.99
$
Usually ships in 3-6 days
Honda 12310-Z8A-000
SEE PART DETAILS - PRI; COVER, CYLINDER HEAD
$33.99
$
Usually ships in 3-6 days
Honda 12355-ZL8-000
COVER, BREATHER (Honda Code 5580006). (BREATHER VALVE ASSY.)
$9.49
$
In Stock, Qty 5
Honda 90014-952-000
BOLT, FLANGE (6X14) (Honda Code 0803619).
$2.99
$
In Stock, only 4 left!
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
$1.99
$
In Stock, Qty 19
Honda 91001-894-004
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (Honda Code 0821124).
$22.99
$
Usually ships in 3-6 days
Honda 91201-Z2A-003
OIL SEAL (25.4X74X6)
$18.99
$
Usually ships in 3-6 days
Honda 98079-56846
SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK) (Honda Code 1441112).
$3.49
$
In Stock, Qty 20+
Honda 12310-Z8A-000
SEE PART DETAILS - PRI; COVER, CYLINDER HEAD
$33.99
$
Usually ships in 3-6 days
Honda 90013-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).
$1.99
$
In Stock, Qty 19
